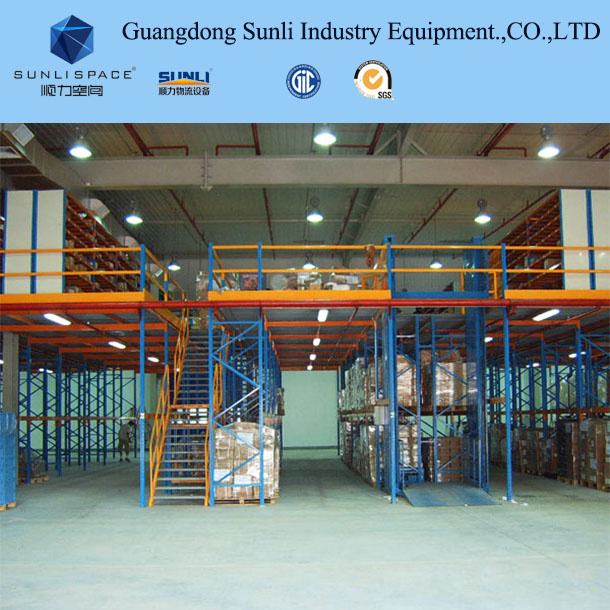

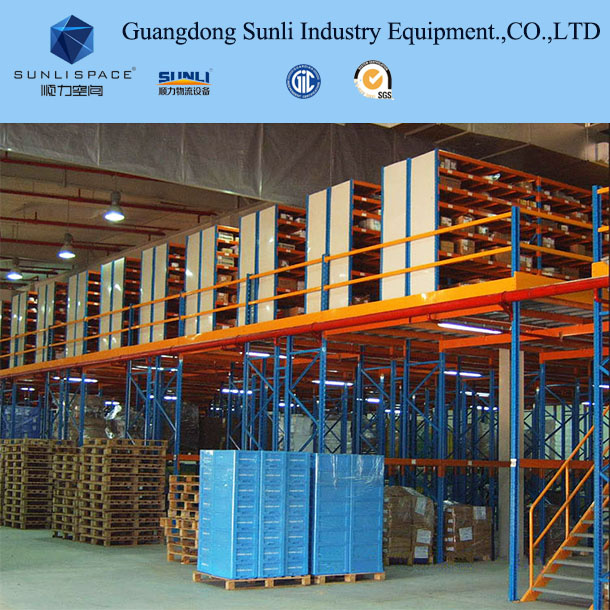

500kg/M2 Warehouse Storage Steel Mezzanine Rack Floor System Manufacturer

Prod Model:	SL-M02B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	Corrosion Protection
Capacity:	1000kg/Sq.Mt
Floor Height:	6mtr
Width:	Your Warehouse Need
Length:	Your Warehouse Layout
Main Colour:	Blue+Orange/Accept Customized
Style:	Multifuntional Floor/Rack System
Warranty:	5 Years Under Normal Use
Fast Delivery:	Within 10 Days
Colour:	Blue+Orange
Material:	Steel
Mobility:	Adjustable
Height:	0-5m
Weight:	150-500kg
Closed:	Open
Development:	New Type
Serviceability:	Common Use
Structure:	Mezzanine Rack

Product Description

What is the features of Sunli Mazzanine roof rack?
1, Match different floor plate: punching steel plate,venner,plywood etc.
2, Main parts: upright(double upright available), beam(main beam,side beam), floor,staircase,lifting          table,dispatch gate, guard rail,safety lock,protector,crash barrier,
3, 1000kg-3000kg load capacity/sq.mt;
4,Can be equiped with shelf rack&pallet rack to inrease use of warehouse area;
5,Easy to adjustable and assemble

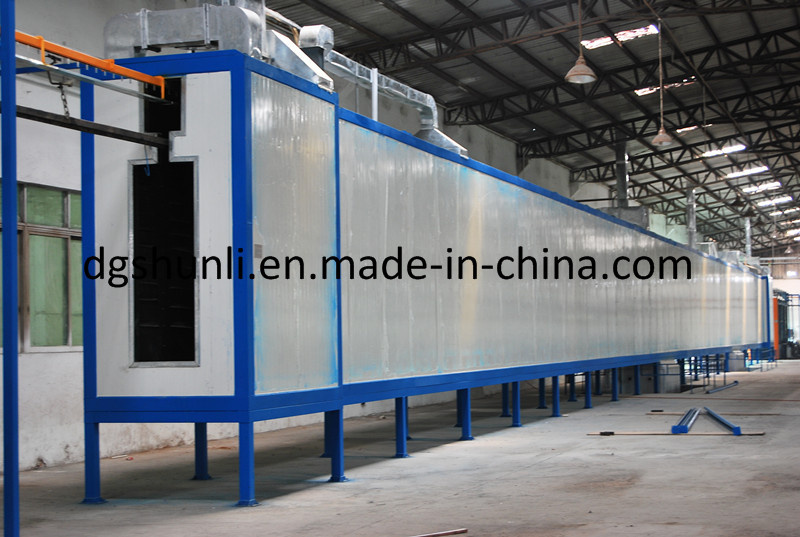

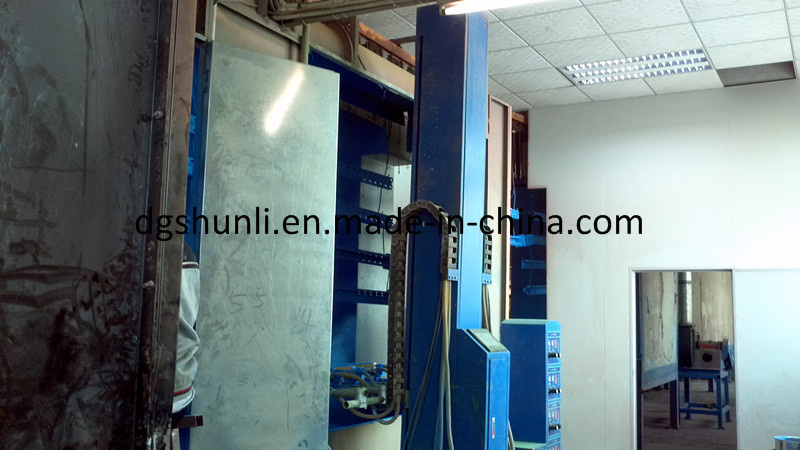

6, Powder coated treatment finish, full automatic processing

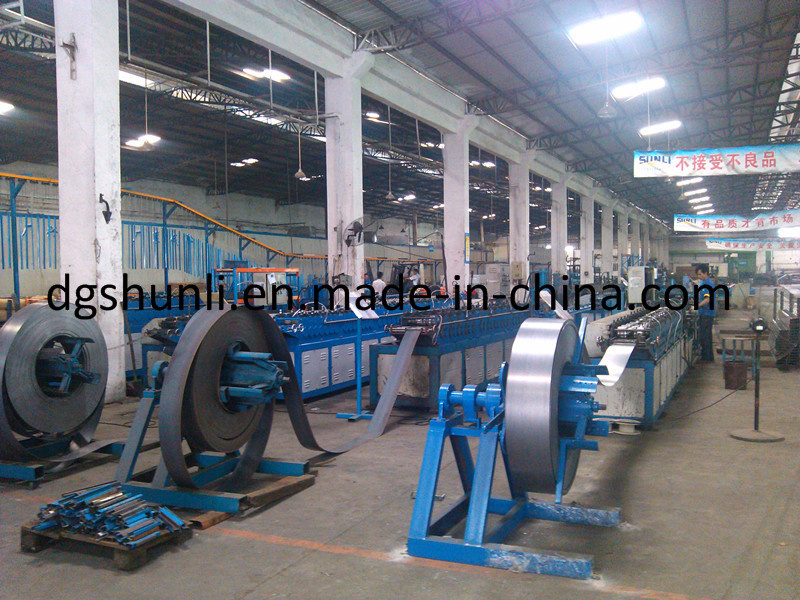

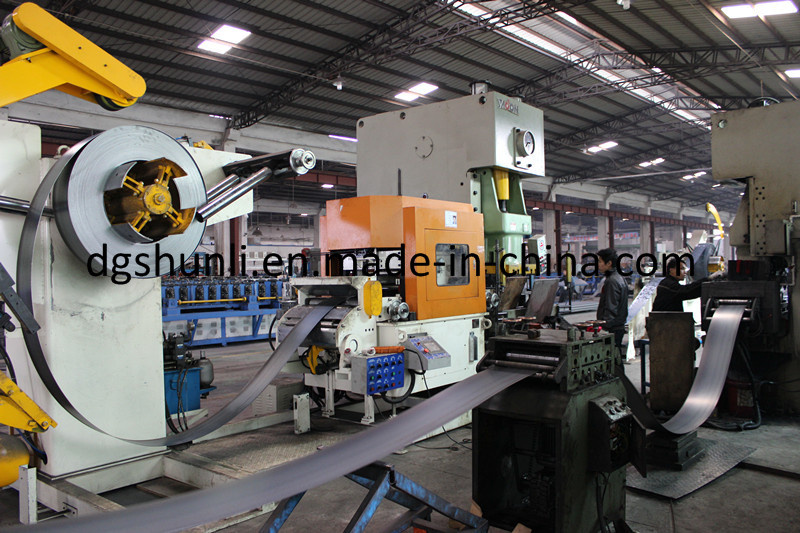

Process:CNC laser cutting -CNC Punching-CNC bending-Welding-polish-Surface treatment-package-ship
Package:wooden case,carton,pallet,or acccording to customer requirements
ODM/OEM:Yes
Delivery /export: by sea

Our related rack system in our factory:
Drive-in rack
Standard pallet rack
Medium duty shelf rack
Radio shuttle rack
Platform
Mould holder rack
Gravity self slide rack
Double deep rack
Narrow aisle rack
Push back rack


Main parts spec.for warehouse rack in Sunli rack system
Upright
80*60/88*68/90*60/100*68/120*68/120*95/140*95/120*120
Beam
80*45/90*45/100*45/110*45/120*45/130*45/140*45/120*50/110*50/80-150*50
Others
Dividers/plywood,veneer,steel plate
Upright frame parts:
2-uprigth,Horizontal bracing,Diagonal bracing,connector,screw,
Material
Q235 steel


Dear customers,please inform us the following information for quick and exact quotation:
1: Size : L*W*H , Warehouse CAD drawing if possible
2, Loading capacity/sq.mt
3, Floor plan
4, Quantities(if need to match rack)
5, Sample sent or not
6, Colour you want
7, Port of destination CIF or FOB
8, The quantity(numbers of starter rack and add on rack)

25-30 days after receipt of deposit
The payment item can be flexible: TT, L/C,
Available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be accepted in shipment.
Full-way tracking the cargos for you before the goods arrive.

Advantages:
1) High usage up to fold several fold of ground area.
2) Shelving Beam can be freely adjusted by pitch 50-75mm
3) Connection of the upright and beam is by wedging, equipped with safety pin to make
sure of the safety;
4) Stable structure, large loading capacity, convenient sorting;
5) Multi-tier rack can be built on the shelf rack
6) Suitable for storage of low volume,large variety goods.
7) We will send you information and photos at different production stage of your order.
You will get the latest information.
8) We can send you installation instructions in the form of drawing, photos and words.
9) Sample of upright and beam can be sent by low express fee.
