Home Rack Products Q235B Steel Heavy Duty Pallet Storage Warehouse Racking
Q235B Steel Heavy Duty Pallet Storage Warehouse Racking
| Price: | US $ 106-110/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Set |
| Pay Type: | L/C,T/T,D/P |
Q235B Steel Heavy Duty Pallet Storage Warehouse Racking
Please have general idea about the pallet rack layout in your warehouse
Techincal Data for Rack System
| Style | Pallet storage warehouse rack |
| Selection | Single Row, back-to-back Rows and multiple Rows |
Dimension of Rack | Standard Pallet 1200x1000 Depth: 1000MM x Width: 2300MM Height: pitch is adjusted by increments of 75mm |
| Beam Range | Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm |
| Upright Range | 80*60; 88*68; 90*60; 100*68; 120*68mm, Thickness: 1.5~3.0mm |
Colour | RAL SYSTEM Upright frame-Blue; Beam-Orange |
| Weight Capacity | Rated 2000KG/Level |
| Package | Full container: Nude Package; manual handling Less than container: steel pallets + steel straps + corrugated paper |
| Export Area | South America; Middle America; South(South East) Asia; Africa; Middle East |
| MOQ | 2 units( 1 start unit+1 extension unit) |
| Lead time | 1, 18~21days for one container 2, 25~27days for less than one container |

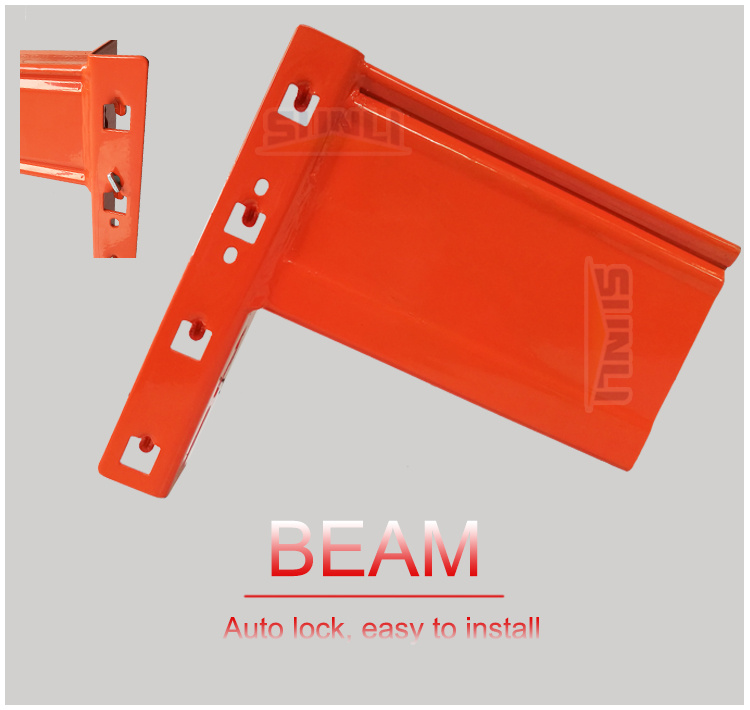

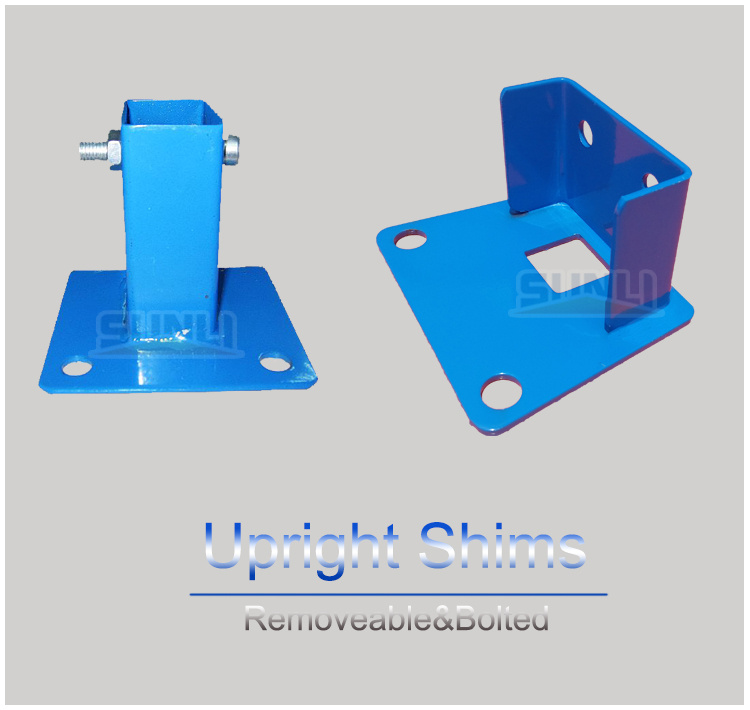

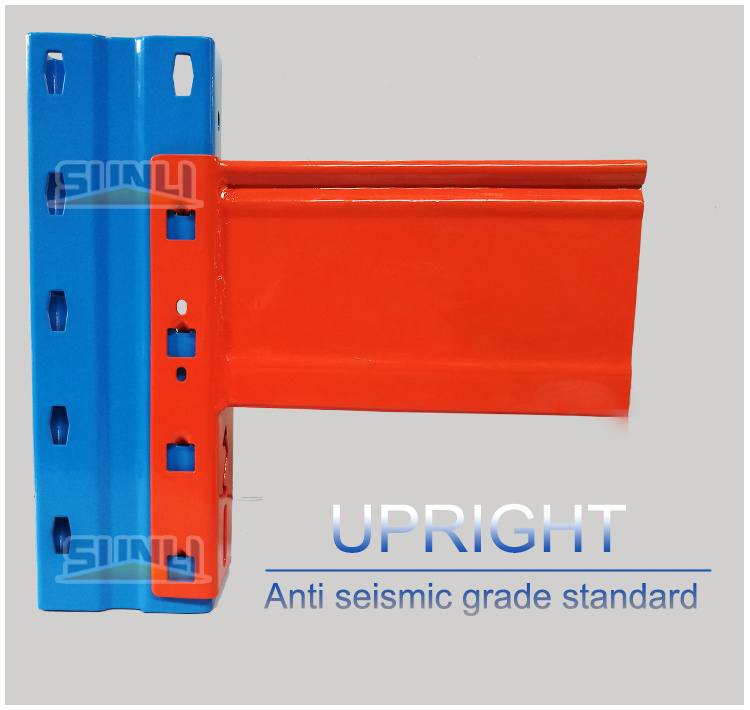

DETAILED IMAGE FOR PALLET STORAGE WAREHOUSE RACK

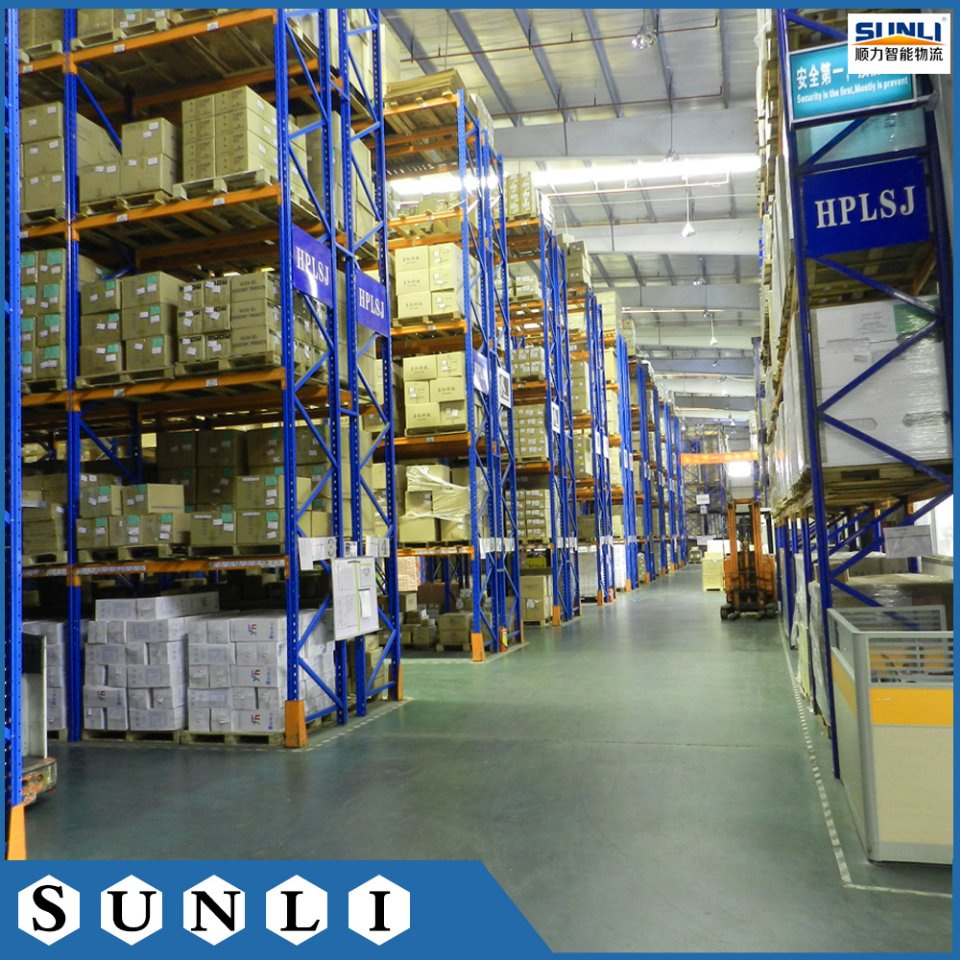

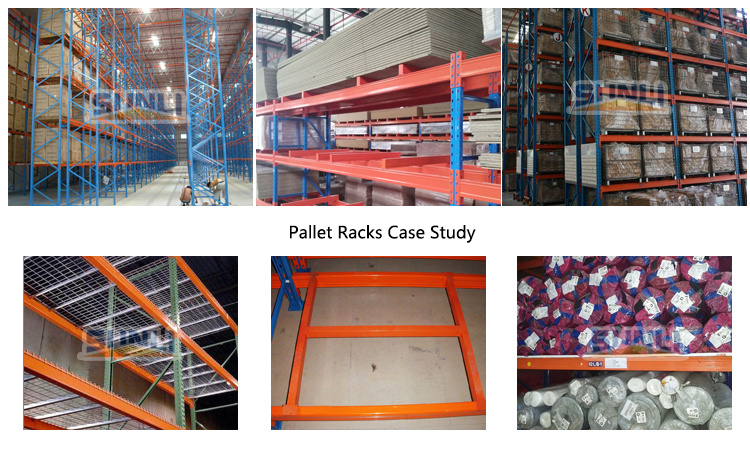

Pallet storage warehouse rack project
We deliver capacity safety for our rack system
Please inform us following information to get prompt offer for PALLET RACK
+ The dimensions of single rack unit ( or palletized load descriptions)
+ The palletized payload
+ Row of racks( single row, back-to-back row or multiple rows)
+ How many palletized load within one unit
( Please refer to the Product Description on the top)
FAQ
1, What is MOQ limitation for ?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.
3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.
4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
+ The dimensions of single rack unit ( or palletized load descriptions)
+ The palletized payload
+ Row of racks( single row, back-to-back row or multiple rows)
+ How many palletized load within one unit
( Please refer to the Product Description on the top)
FAQ
1, What is MOQ limitation for ?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.
3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.
4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
| Prod Model: | SL-H003 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Blue(Ral5015) Upright/ ,Orange(Ral2004) Beam |
| Surface Treatment: | Powder Coating |
| Certification: | ISO9001, Ce, SGS, As4084 |
| Warranty: | 5 Years |
| Fast Delivery: | 20 Days |
| Steel Material: | Q235B |
| Stand Depth: | 800mm/900mm/1000mm/1200mm |
| Adjustable: | 75mm Adjustable |
| Shelf Type: | Warehouse Racking |
| Packaging Detail: | Plastic Film |
| Material: | Steel |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Structure: | Racking |
| Height: | Maximum 12 M |
| Weight: | Maximum 5000kg/Layer |
The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.
Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.
As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.
What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.
Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,
New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.
Sunli motto "Value beyond expectations"
Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.
As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.
What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.
Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,
New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.
Sunli motto "Value beyond expectations"
