Prod Model: |
XGF series |
Machine Material: |
Stainless Stain |
Place Of Origin: |
Jiangsu |
Raw Material: |
Stainless Stain304/316 |
Filling Valve Head: |
Multi-Head |
Capacity: |
2000-40000bph |
Certification: |
ISO Ce |
Function: |
Bottle Washing/Filling/Capping |
Warranty: |
One Year Free for Broken Part |
Delivery Detail: |
30 Days After Getting Orders |
Brand: |
Keyuan Machinery |
Type: |
Weighing-type Filling Machine |
Automatic Grade: |
Automatic |
Material Type: |
Liquid |
Feed Cylinder Structure: |
Single-Room Feeding |
Dosing Device: |
Surface Type |
Filling Principle: |
Pressure |
Packaging Container Lifting Structure: |
Pneumatic Lifting |
Structure: |
Rotary |
Packaging Type: |
Bottle |
Packaging Material: |
Plastic |
Product Description
Production introduction:Specifications

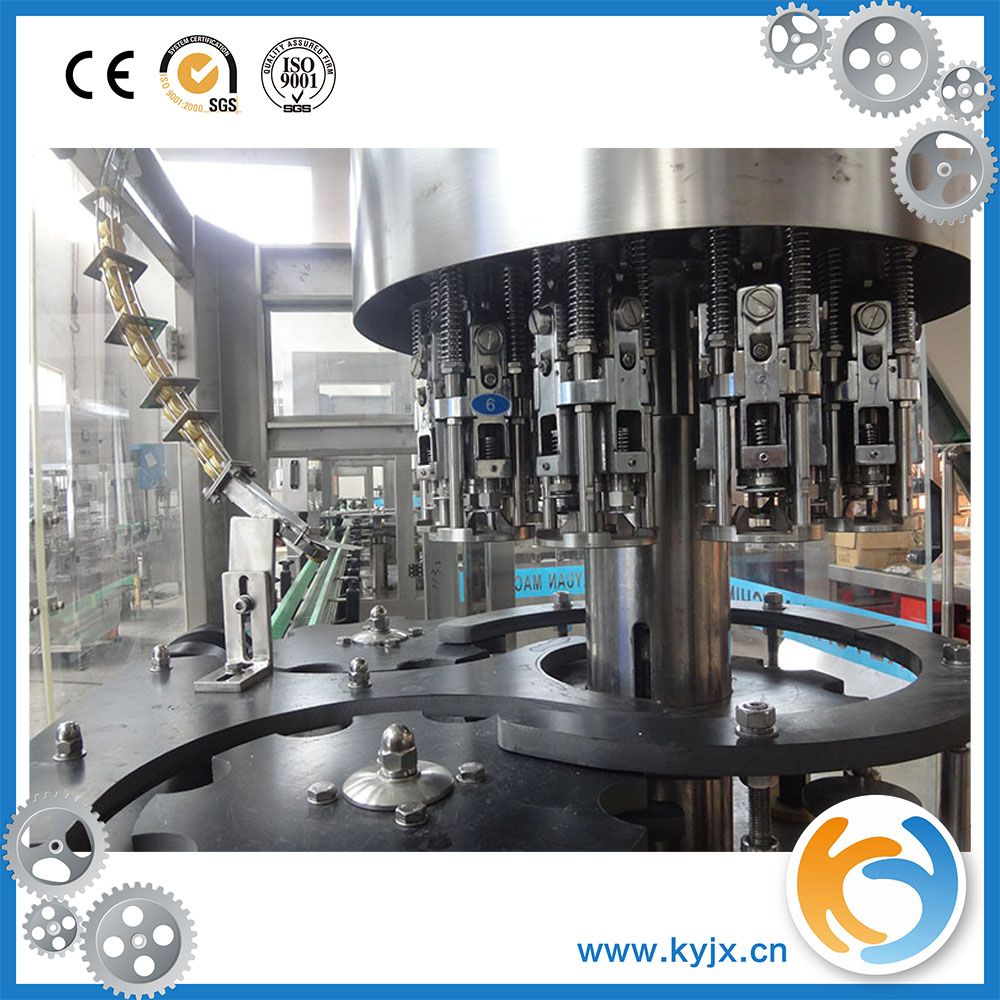

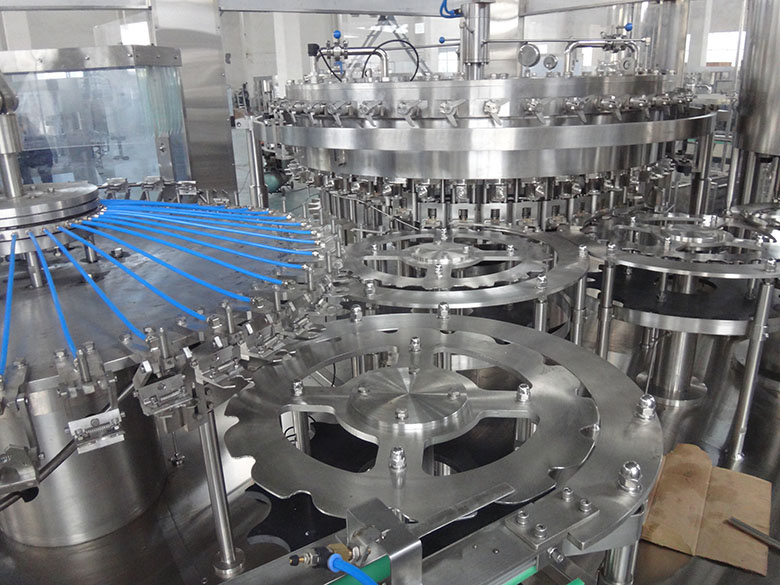

Glass Bottle Alcohol filling Machine
-High quality with sus 304
-Automatic with PLC control
-Latest design
-CE,ISO
Alcohol Filling Machine 1. Capacity: 2000-18000bph 2. Low vacuum filling 3. Bottle height: 150-330mm
1. Suitable for filling vodka, yellow wine and health care wine etc.
2. Capacity:18000b/h.
1. The machine is suitable for the quantificational filling of vodka, yellow wine and health care wine
etc. and it is mainly used in the automatic production line of these liquid filling.
2. Filling mode:
a. Volume measure filling valve. It has the features of high efficiency filling and wide range of application scope. It adopts the newest removing bubble device and there is no over-flow. The filling precision can be controlled between 0.2%~0.4%. The machine uses transducer with speed adjustable to control, when bottle is blocked, the machine will stop running automatically and get restoration automatically. This way it can ensure the reliability and stability of filling.
b. Micro-compueter control quantificational filling(it is also called non-touch filling).
This filling method makes the on line filling volume adjustable and the filling precision can reach . There is no need to stop the machine, just adjust it by hand. The machine does not have bottle holder lifting and lowering device and does not need to open valve with running machine. Non-tourch filling has saved a lot of maintenance work and has reduced the equipment running cost.
Main technical paraments: Model(DCGF) | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 | 80-80-20 |
Number of washing,filling,capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 | 80-80-20 |
Suited bottle specification (mm) | Φ=50-100 H=170 330-1500ML | Φ50-Φ110 H=160-340 |
Production capacity(350ML) b/h | 2000- 4000 | 4000- 6000 | 8000- 10000 | 10000-12500 | 12500 -15000 | 16000 -20000 | 20000 -24000 | 26000 -32000 |
Washing pressure (MPa) | 0.2-0.25 | 0.2-0.25 |
Filling pressure (MPa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
Motor power | 1.5+0.55 +0.12 | 2.2+0.55 +0.18 | 3+0.55 +0.18 | 5.5+0.55 +0.18 | 7.5 | 11 | 15 | 19 |
Overall dimensions (L×W×H) mm | 2300×1600 ×2500 | 2600×1920 ×2550 | 3100×2200 ×2800 | 3850×3000 ×2850 | 4850×3800 ×2750 | 5750×3550 ×2750 | 6500×5500 ×2750 | 7680×6640 ×2650 |
Weight kg | 2800 | 3650 | 4800 | 6800 | 8650 | 10500 | 12800 | |
Our Serice
1. Well-trained & experienced staff are to answer all your inquiries in English and Chinese
2. 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
3. 12 Months guarantee and life-long technical support.
4. Your business relationship with us will be confidential to any third party.
5. Good after-sale service offered, please get back to us if you got any questions

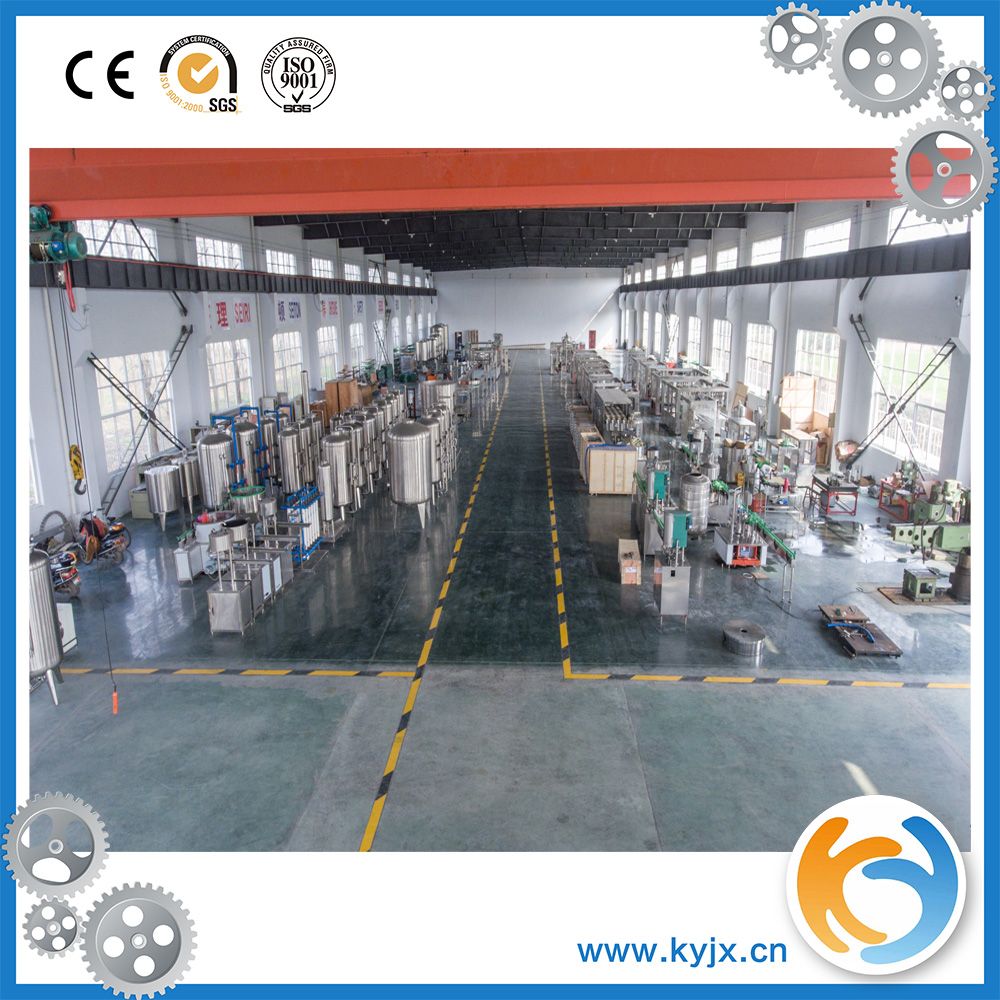

Company Information:Zhangjiagang Keyuan Machinery Co., Ltd. is a modern technical enterprise set up to meet the 21st century's development demand regarding beverage packing machinery and all sorts of water treatment facilities. Our company has production experience of more than 20 years. Our company is a professional enterprise producing full sets of beverage packing machinery and all sorts of water treatment facilities, integrating product development, scientific research & design, production, technical service and marketing.
At present, our company provides the following production lines:
Complete sets of gas containing drink production lines
Complete sets of Mineral water and spring water production lines
Complete sets of Pure water production lines
Complete sets of Fruit juice production lines
Bean milk & protein drink production lines
Complete sets of white spirit, soy and vinegar filling production lines
Keyuan would like to move forward together with you and will spare no effort. Welcome to Keyuan !
FAQ1) Can your factory provide the whole plant from A to Z?A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We donot make the bottle making machinerywe have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?A: Our factory provide the CE, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.(Workshop need customer to provide the size of factory)
6)Installation and Training TimeA: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.
