Wire Container/Wire Mesh Container/Storage Cage
| Price: | US $ 15-50/Piece |
|---|---|
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | s-568 |
|---|---|
| Feature: | Durable |
| Product Name: | Wire Mesh Container |
| Width: | 60,80,100cm |
| Length: | 80,100,120cm |
| Material: | Low-Carbon Iron Wire |
| Hole Shape: | Square |
| Surface Treatment: | Galvanized |
| Application: | Sieving Mesh |
| Color: | Silver |
| Type: | Welded Mesh |
| Certification: | BV |
| Condition: | New |
| Mesh Size: | 50*50mm,50*100mm |
| Weave Technique: | Welded |
Product Description

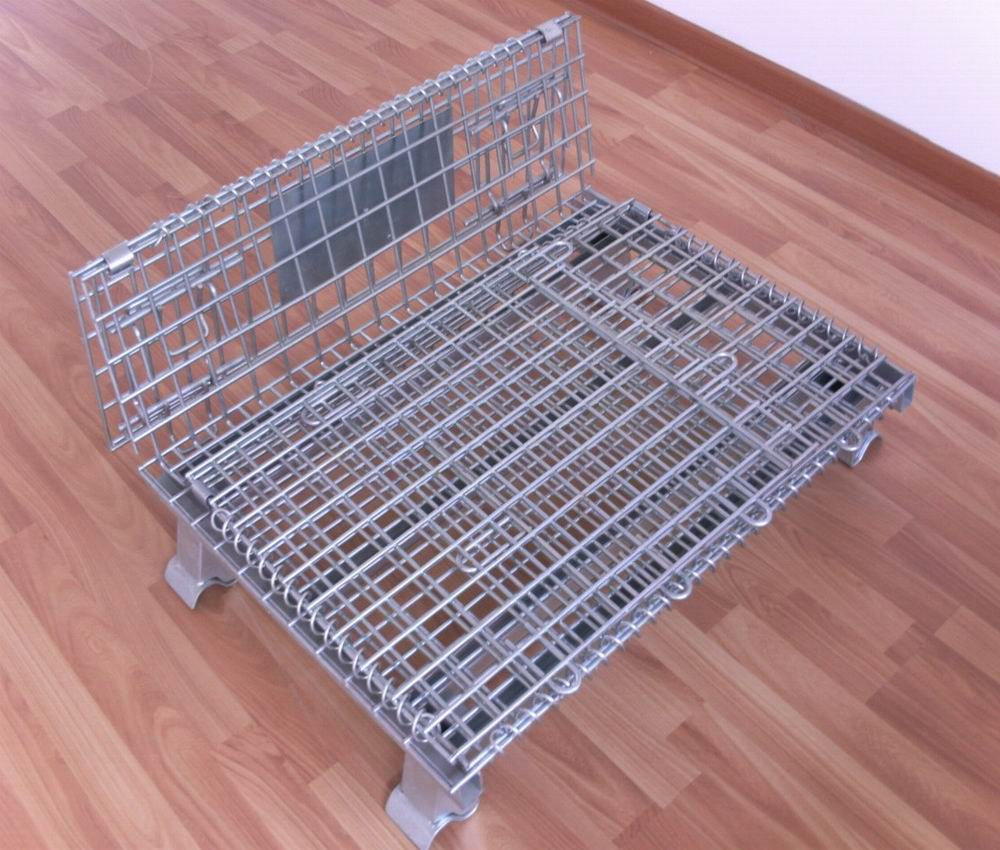

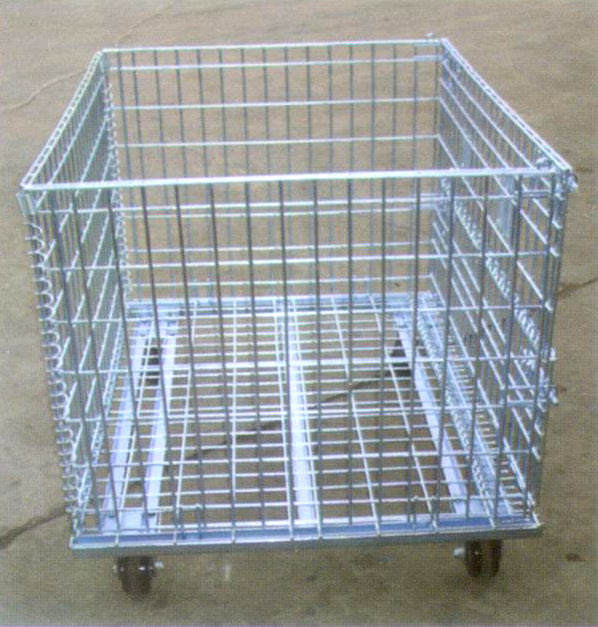

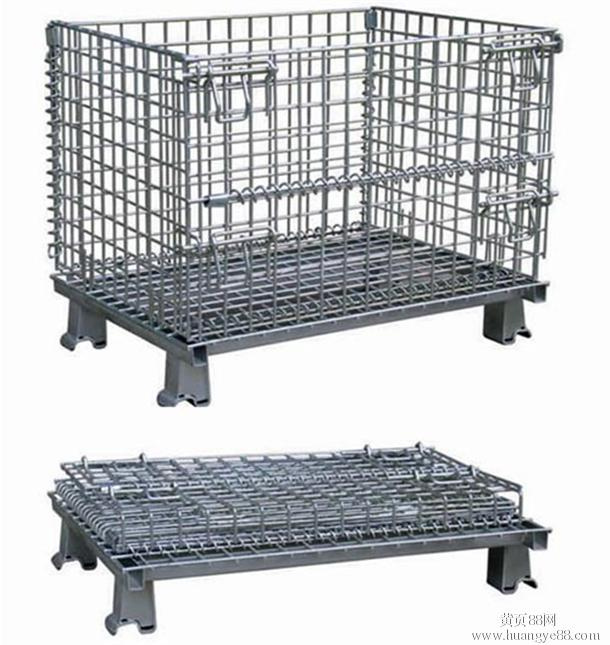

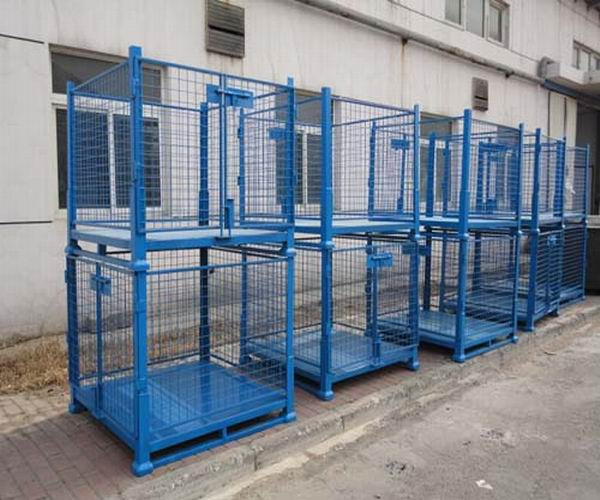

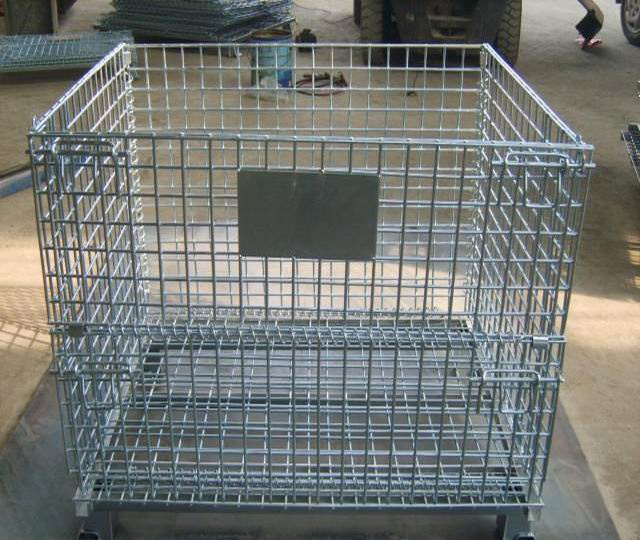

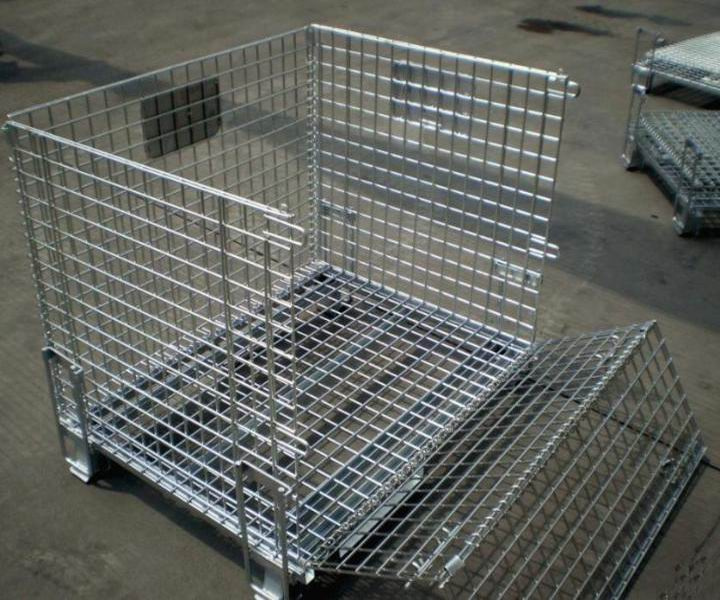

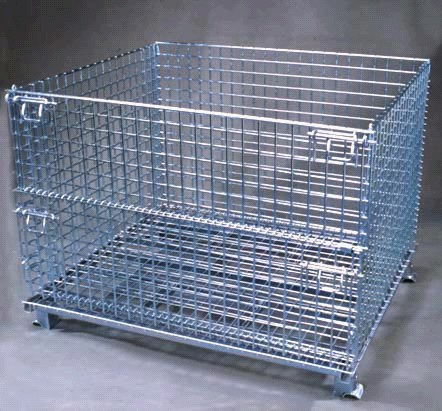

collapsible and stackable wire mesh containerWarehouse mesh pallet container
Warehouse mesh box
1. Features:
A. Storage Cage is made of high quality steel metarials and formed by cold harden welding. It has big strength, good capability and four folded layer. Load capability of different types of storage shelves: 0.8T-2.0T.
B. Folding structure makes loading, revolving and storing mush convenient. It is easy to managing.
C. The surface is zinc plated, so it is beautiful and durable.
D. Warehouse Cage is proper for moving work of forkman crane, traveling crane, lifter, trolly and hydraumatic pallet truck
3. Services: The size and mode can be choosed according to your requirements.
| Model | Capacity(Kg) | Measurement(M³ ) | NO. of Layers | Length(mm) | Width(mm) | Height(mm) | Legs Hight(mm) | Wire Dia(mm) | Mesh Pithch(mm) |
| HBE-MC-1 | 700 | 0.22 | 4 | 800 | 600 | 640 | 100 | 6.0 | 50*50 |
| B-3 | 500 | 0.22 | 4 | 800 | 600 | 640 | 100 | 6.0 | 50*100 |
| A-5 | 1200 | 0.52 | 4 | 1000 | 800 | 840 | 100 | 6.0 | 50*50 |
| B-5 | 800 | 0.52 | 4 | 1000 | 800 | 840 | 100 | 6.0 | 50*100 |
| A-5 1/2 | 1200 | 0.28 | 4 | 1000 | 800 | 500 | 100 | 6.0 | 50*50 |
| B-5 1/2 | 800 | 0.28 | 4 | 1000 | 800 | 500 | 100 | 6.0 | 50*100 |
| C-5 | 500 | 0.52 | 4 | 1000 | 800 | 840 | 100 | 5.0 | 50*50 |
| A-7 | 1500 | 0.84 | 4 | 1200 | 1000 | 890 | 100 | 6.0 | 50*100 |
| B-7 | 800 | 0.84 | 4 | 1200 | 1000 | 890 | 100 | 6.0 | 50*50 |
| UA-3 | 800 | 0.22 | 4 | 800 | 600 | 640 | 100 | 6.4 | 50*50 |
| UB-3 | 600 | 0.22 | 4 | 800 | 600 | 640 | 100 | 6.4 | 50*50 |
| UA-5 | 1500 | 0.22 | 4 | 1000 | 800 | 840 | 100 | 6.4 | 50*100 |
| UB-5 | 100 | 0.52 | 4 | 1000 | 800 | 840 | 100 | 6.4 | 50*50 |
| UA-7 | 2000 | 0.84 | 4 | 1200 | 1000 | 890 | 100 | 6.4 | 50*100 |
| UB-7 | 1000 | 0.84 | 4 | 1200 | 1000 | 890 | 100 | 6.4 | 50*50 |
| C-2 | 300 | 0.15 | 4 | 800 | 500 | 540 | 100 | 1.8 | 50*100 |
JuYun Wire Mesh Products Co. Ltd. located in "The Hometown of Wire Mesh of China", We engage in production and export of various metal wires and wire meshes and Machine series...Because we pay much attention to continued effort in better quality products, our quality management system has been approved by ISOQAR to the standard of ISO9001: 2000 Management System Certification. We can offer not only reliable products but also services at competitive prices.
Insisting on the technique innovation, scientific and honest management, our factory emphasizes on introducing into the advanced production and inspection, thereby making sure of the quality and earning good reputation. So far, our products have been highly appreciated in Europe, Asia, Africa, and other regions.
Our main product, black wire, black annealed wire, hard drawn wire, galvanized wire, stainless steel wire, barbed wire, razor barbed wire, welded wire mesh, chain link fence, wire mesh fence, crimped wire mesh, hexagonal wire mesh, stainless steel wire mesh, expanded metal mesh, perforated metal mesh, gabion basket, filter mesh and so on.
Welcome to inquiry.
Insisting on the technique innovation, scientific and honest management, our factory emphasizes on introducing into the advanced production and inspection, thereby making sure of the quality and earning good reputation. So far, our products have been highly appreciated in Europe, Asia, Africa, and other regions.
Our main product, black wire, black annealed wire, hard drawn wire, galvanized wire, stainless steel wire, barbed wire, razor barbed wire, welded wire mesh, chain link fence, wire mesh fence, crimped wire mesh, hexagonal wire mesh, stainless steel wire mesh, expanded metal mesh, perforated metal mesh, gabion basket, filter mesh and so on.
Welcome to inquiry.
