Quality Library Steel Compact Mobile Steel Compact Shelving for Archive

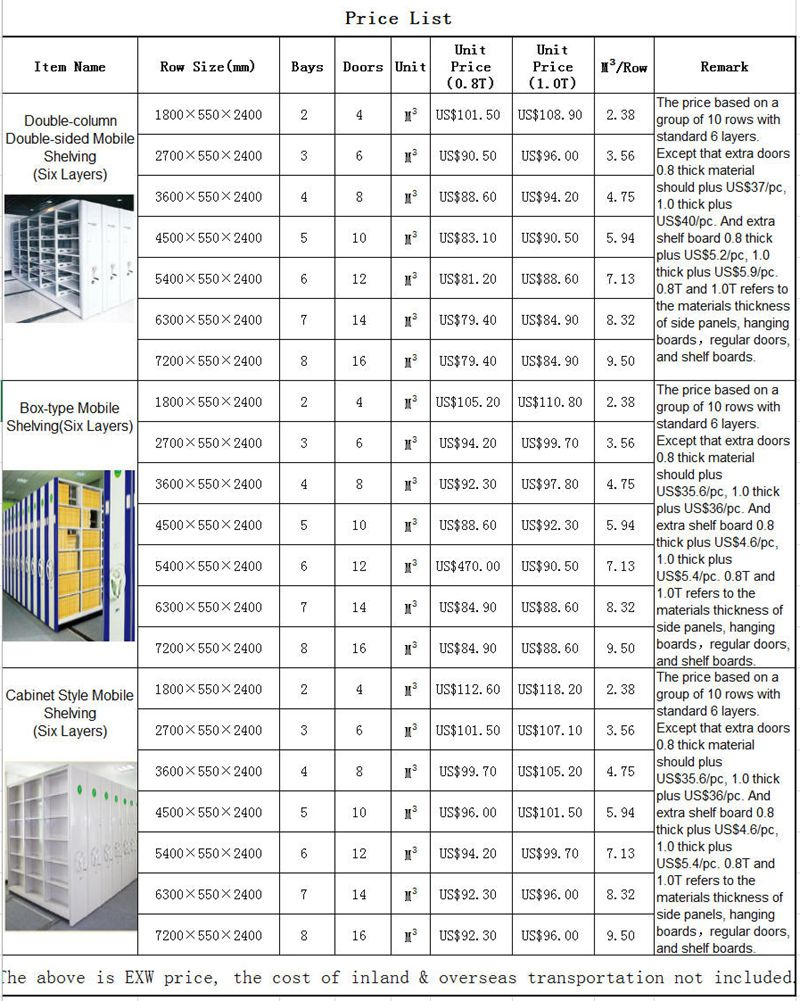

| Price: | US $ 116-138/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | YJM-07 |
|---|---|
| Certification: | ISO9001/ISO14001/ISO18001 |
| Usage: | Office, Library, Government, Archive, School, Bank |
| Surface Finishing: | Expoxy Powder Coating |
| Warranty: | 10 Years |
| Delivery: | 15-30 Days |
| Size: | L900*D550*H2400/PC |
| Layer: | 6 Layers |
| Color: | Light Grey, Putty, Beige, White, Black |
Product Description

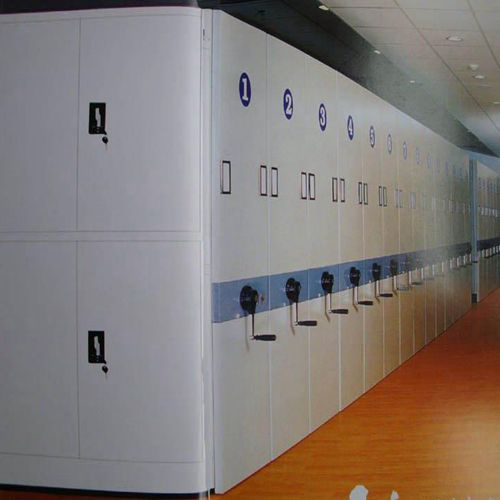

Quality Library Steel Compact Mobile Steel Compact Shelving for ArchiveManual mobile shelving is controlled by hand wheel. Usually divided into two kinds of single and double sided frame. It is the most common type of archives cabinet, also the best selling cabinet, suitable for the various kinds of archives information room, record room, archives storehouse, library files, books, medical records, etc. Product specifications can be produced according to customer's requirements.
Mobile shelving Movable Mass Dense Shelf Compact File Shelving
Production Description
| Item No.: | YJM-04 |
| Brand Name: | Yuanjin |
| Item Name: | 6-bay double-sided mobile filing shelves |
| Size: | L900*D600*H2300/pc |
| Layers: | 5 storage space |
| Material: | high-quality cold-rolled steel Q235 |
| Color: | light grey |
| Surface finishing: | eploxy powder coating |
| Technic: | environmental powder coating ,static electricity spurtmold , pickling and phosphorization technics to deal with the surface to ensure the elegance and solidity of the products,prevent the paint losing and rusting. |
| Packing: | knock-down in export carton, the same member individually packaged |
| Load capacity: | 60-80pcs/20FCL, 150-170pcs/40HQ |
| Materials: | |
| chassis: 2.8mm hot-rolled steel, GB710-88 | |
| rail: 20*20 solid square steel, GB699-88 | |
| sill beam: 2.8mm hot-rolled steel | |
| axle bumper & clamping device: 2.0 hot-rolled steel | |
| upright: 1.5mm cold-rolled steel, GB710-88 | |
| partition board: 1.0mm cold-rolled steel, GB710-88 | |
| hanging board: 1.0mm cold-rolled steel, GB710-88 | |
| shelf board: 1.0mm cold-rolled steel, GB710-88 | |
| baffle: 0.8mm cold-rolled steel, GB710-88 | |
| door frame: 0.8mm cold-rolled steel, GB710-88 | |
| door: 1.0mm cold-rolled steel | |
| positioning module: ABS injection moulding | |
| side panels: deluxe concave-convex type 0.9mm cold-rolled steel, GB710-88 | |
| bearing: double the nucleus HR204E, GB710-88 | |
| transmission shaft: Φ20 solid steel 45#, GB699-88 | |
| steel pipe connection: Φ20 solid steel 45#, GB699-88 | |
| steel roller: HT200 gray iron, GB9439-88, 1000kg/roller | |
| gear: ZG45 roller, GB1135-89 | |
| motorcycle chain: Φ8.5 pitch, 12.7FR 420, GB1244-85, ISO9001 certified | |
| handle: imported plastic steel, A bi-directional overrunning clutch structure GB1285-85 | |
| handle assembly: roller bearing, A bi-directional overrunning clutch structure GB1285-85 | |
| side column lock kit: 808 lock, luxury, each column are provided with braking device | |
| gate lock: buckle type square lock | |
| shock-proof seal: 20mm, magnetic refrigerator door stopper | |
| roof: 0.8mm cold-rolled steel, GB710-88 | |
| dust guard, rat guard: 0.8mm cold-rolled steel, GB710-88 | |
| device preventing tilting: 3.0mm cold-rolled steel, GB710-88 | |
| preprocessing: Zn phosphorization, USA standard, ISO9001 certified | |
| high pressure electrostatic spray: epoxy polyester mixed powder | |
| water washing: ≤10ЦS conductivity, USA standard | |
| Applications: | law libraries |
| public & privite libraries | |
| health care storage | |
| government offices | |
| fine art storage | |
| archival storage | |
| archeological storage | |
| backroom storage | |
| bank | |
| institute and school | |
| Features: | 1. Maximum space utilization and perfect seal, neat/elegant for file storage; |
| 2. Good performance, easy to disassemble and Install; | |
| 3. High reliability anti-tilting ability; | |
| 4. Strong, durable and steady; | |
| 5. Security acess control; | |
| 6. Soft start and soft stop. | |
| Service: | 1. 10 years warranty; |
| 2. Various sizes and colors available; | |
| 3. with prompt delivery and competitive price; | |
| 4. offering multiple perfect workable solutions for free for customers' reference; | |
| 5. Has after-sales service department to accept and treat feedback information from customers. |
Yuanjin Science & Technology Group Co., Ltd. Which is located in Zhangshu, Jiangxi, China. Companies registered capital of 61.88 million Yuan, with a total investment of 180 million Yuan, covers an area of over 30, 000 square meters.
It is known as the State High-tech Enterprise possessed strong technical force and well-equipped workshop. Moreover, it converges a number of talented staff who are expert at the field of machine, CNC machinery (Computerized Numerical Control machinery), product research, software development and so on. And has a number of advanced CNC mechanized assembly line and automatic picking, phosphating, electrostatic spray lines introduced from Germany. The main products are: File equipment, books equipment, storage equipment, medical equipment, insurance equipment, office furniture, six series and over 512 varieties. Various products has been selling throughout the country and exported to Russia, Brazil, South America, Southeast Asia and other countries and regions.
Our main products as below:
1. Library equipment series:
1) Mobile shelving for archive storage (including manual shelves and power shelves);
2) Bookshelf (material: Steel or steel/wood);
3) Steel cabinets;
4) Carrels and chairs;
2. Office equipment series:
1) Office tables and chairs;
2) File cabinest;
3) Various steel lockers;
3. Insurance equipment series:
1) Iron cash box;
2) Explosive storage;
3) Vault door
4. Industry storage
1) Pallet racks;
2) Pallets and wire containers;
Yuanjin Products have their own core technology and intellectual property. 81 items' technologies obtained national patent certificates. "Yuanjin" trademark is identified as "Chinese Well-known Trademarks" by the State Administration of Industry and Commerce. "Yuanjin" brand compact shelving and bookshelf products are named "Jiangxi Province Famous Brand Products" which has passed through the ISO9001 quality management system certification, ISO14001 environmental management system certification, China Environmental labeling products certification, and OHSMS18001 occupational health and safety management system certification.
Adhering to the spirit of "quality is source, credit is gold'', Yuanjin insists on leading the way for high quality products and superior service, providing you with perfect solutions on the filing storage and industry storage.
