Home LED Light Products P60*45mm 2400kg 4levels 2000mm Beam Heavy Duty Longspan Shelves Rack
P60*45mm 2400kg 4levels 2000mm Beam Heavy Duty Longspan Shelves Rack
| Price: | US $ 150.5-220/Set |
|---|---|
| Min Order: | 2/Set |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | SL-SR-14 |
|---|---|

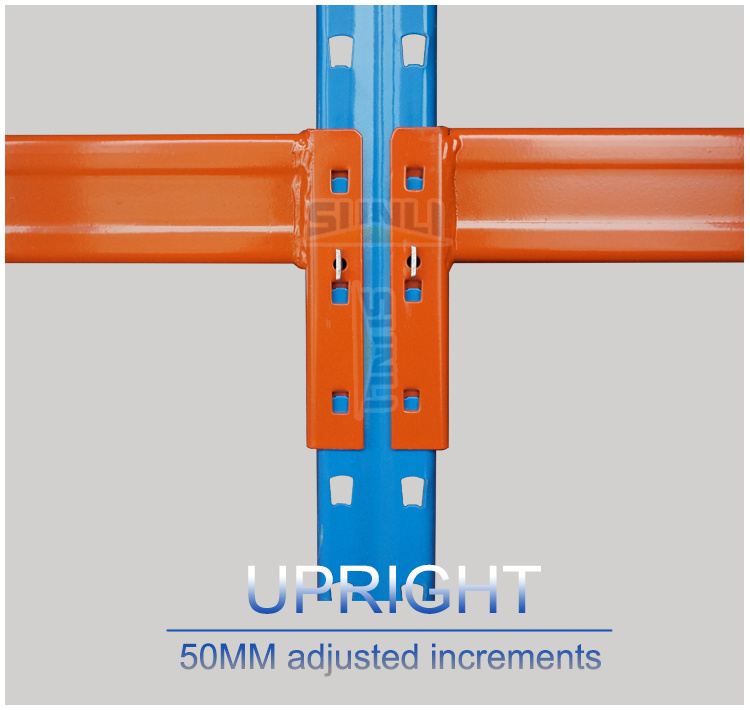

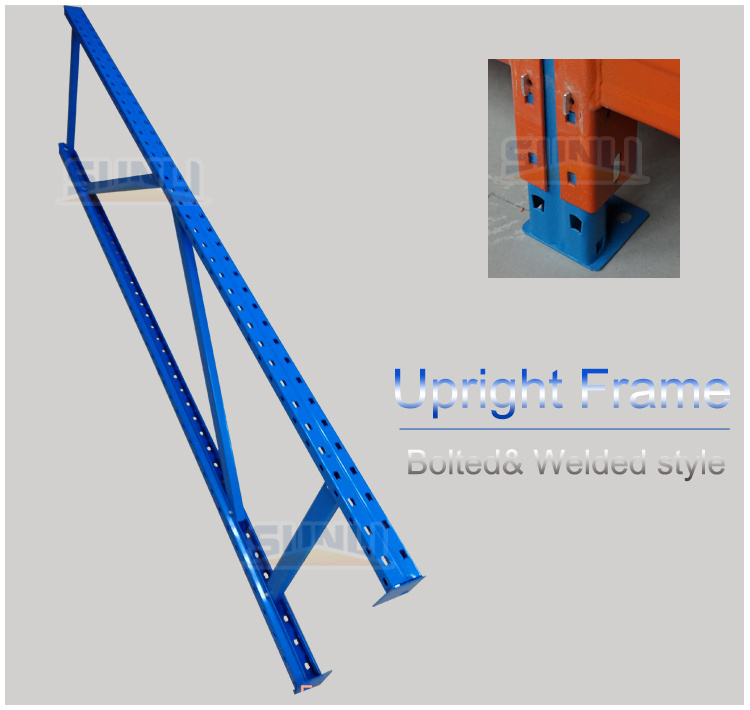

| Upright Frame: | Welded |

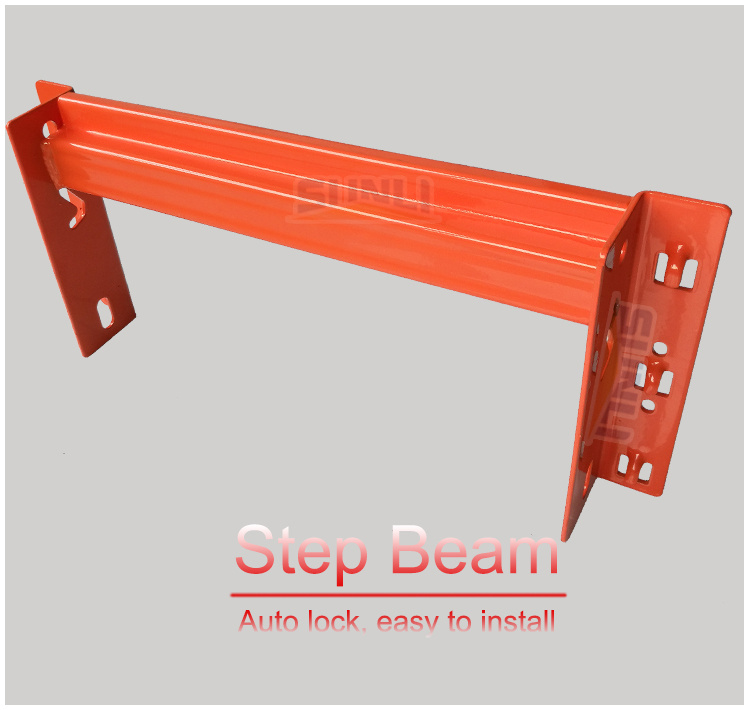

| Beam: | Step One with Corrugated Edges |
| Steel Panel: | H20mm with Reinforced Ribs to Bottom |
| Lead Time: | 21days~ 27days |
| MOQ: | 2 Units |
| Colour: | Ral( Blue+ Orange) |
| Deck Style: | Plywood or Steel Panel or Mesh Deck |
| Rated Capacity: | 600kg/Level( 200kg/400kg/800kg Per Level) |
| Material: | Steel |
| Structure: | Layer Frame |
| Mobility: | Adjustable |
| Height: | 0-5m |
| Closed: | Semi-closed |
| Development: | New Type |
| Serviceability: | for Special Purpose |
| Weight: | 600kg/Level |
Product Description

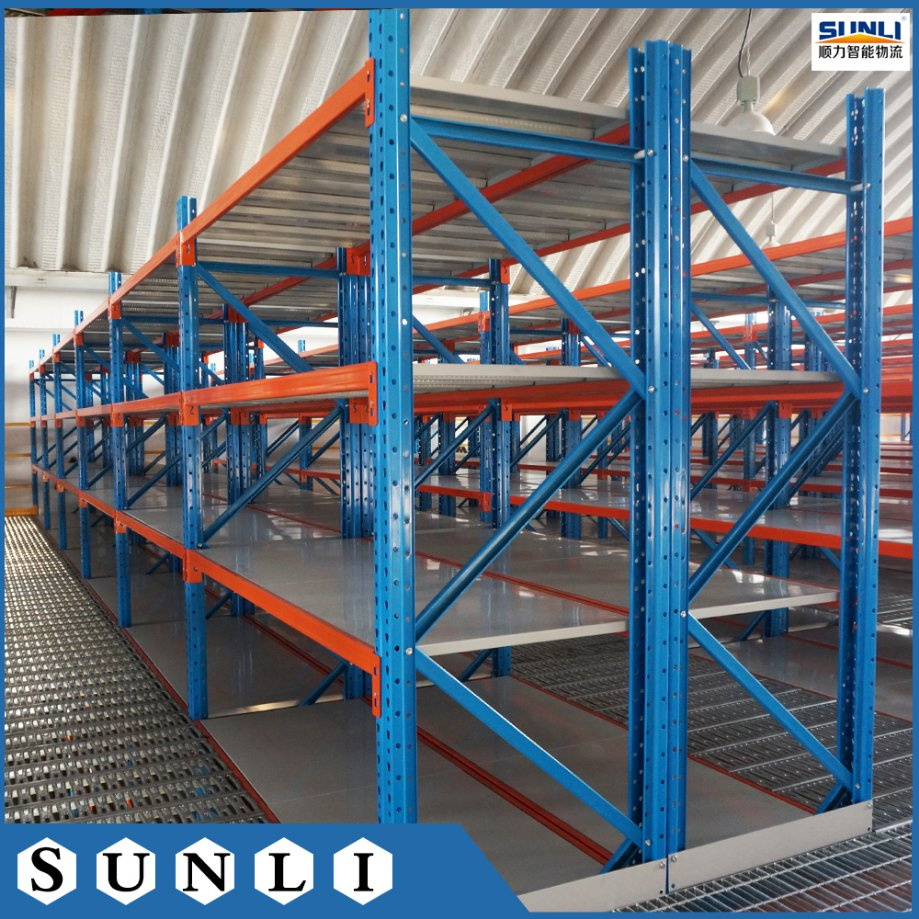

P60*45mm 2400KG 4levels 2000mm Beam Heavy Duty Longspan Shelves Rack+ Easy-to-buy and easy-to-specify starter and adder units together
so you can quickly define your size and capacity.
+ Durable racks are constructed from rigi roll-form steel of fine rigidity.
+ 80*35mm wide beams are usually used with plywood board or steel decking as the extra
+ Durable, attractive powder-coat. Beams finished in orange. Frames finished in sky blue
Technical Descriptions For Longspan Shelves Rack
| Style | Metal decking shelves/metal decking shelving |
| Selection | Single row, multiple rows |
| Components (medium duty 200KG~800KG) | 1, step beam: 60*35/80*35mm 2, uprights: 55*45/60*45mm/80*60MM 3, Thickness: step beam: 1.2~1.5mm; upright:1.2mm~1.5mm Steel panel: 0.5~1.0mm |
| Components (heavy duty 800KG~2000KG) | 1,Beam: 80*45mm/90*45mm 2, uprights: 80*60mm 3, Thickness: Beam: 1.5~1.8mm; upright:1.5mm~1.8mm Steel panel: 1.0mm*2.0mm |
| Colour | RAL2004(step beam/steel panel) RAL5015(upright) ( www.ralcolour.com) |
| Package | 1, Less than one container: steel pallets/steel straps/plastic film 2,full container: plastic film/steel pallets for items |
| Services | CAD drawings for rack layout; CAD drawings for installation |
Note:
Total capacity listed requires an evenly distributed load and used in the configurations as shown.
Adding or subtracting beam levels, or changing the spacing between them, will alter that capacity.

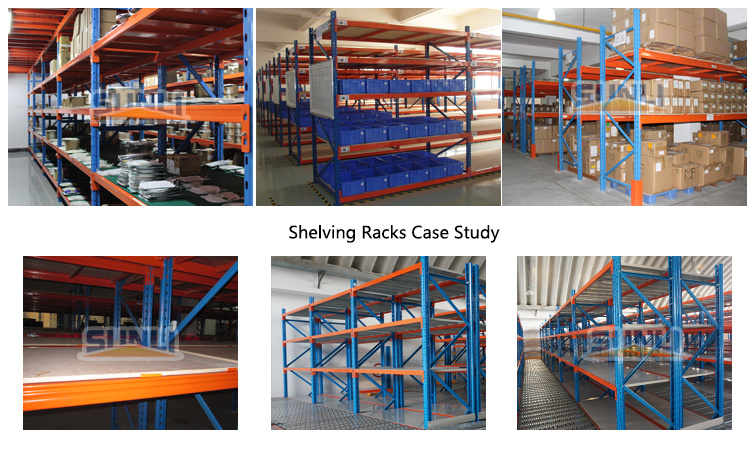

Shelving rack that applied to different industry

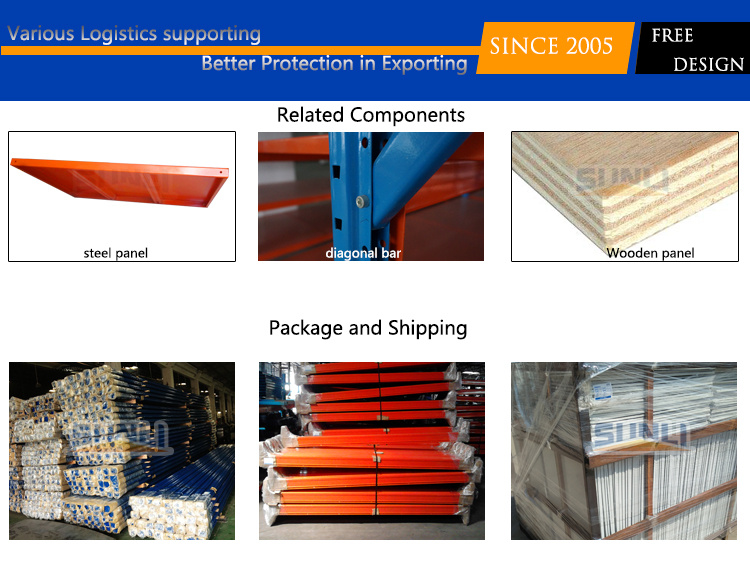

Related item within shelf rack and full protected package
Our Services available for storage rack solution
| palletized storage | Adjustable pallet Rack | Narrow aisle pallet rack |
Radio shuttle pallet rack | Double deep pallet rack | |
| Accessories | Long span shelving rack | Mezzanine Rack System |
| Long items | Cantilever rack | Stacking Pallet |
Please inform us following information to get prompt offer for longspan shelving rack
+ The dimensions of single rack unit ( or palletized load descriptions)
+ The palletized payload
+ Row of racks( single row, back-to-back row or multiple rows)
+ How many palletized load within one unit
( Please refer to the Product Description on the top)
We know your concerns during business with our company
1, What is MOQ limitation for ?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.
3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.
4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
6, What about the installation ?
++ Pallet rack, shelving rack, cantilever rack, drive in rack are bolt-on structure, no skillful workers is involved
++ For complicated project such as mezzanine rack and radio shuttle rack we can send one engineer overseas to help.
The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.
Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.
As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.
What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.
Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,
New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.
Sunli motto "Value beyond expectations
Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.
As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.
What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.
Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,
New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.
Sunli motto "Value beyond expectations
