Marble Granite Mould Glass Metal CNC Cutting Engraving Machines
| Price: | US $ 5800set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Prod Model: | CK1325 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Size: | 1300X2500mm |
| Stepper Motor: | Leadshine Stepper Motor |
| Servo Motor: | as Customers Choice |
| Machine Colour: | Orange or as Customers Choice |
| Spindle Power: | 3.0/4.5kw Water Cooling Spindle |
| Inveter: | Fuling Inveter |
| Square Rail: | Tai Wan PMI |
| Operation System: | Weihong Nk 105DSP |
| Working Table: | Vaccum Pump |
| Drive Motors: | Stepper Motors and Leadshinem860 Driver |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Manual |
| Controlling Mode: | CNC |
| Certification: | SGS |
| Color: | Orange |
Product Description

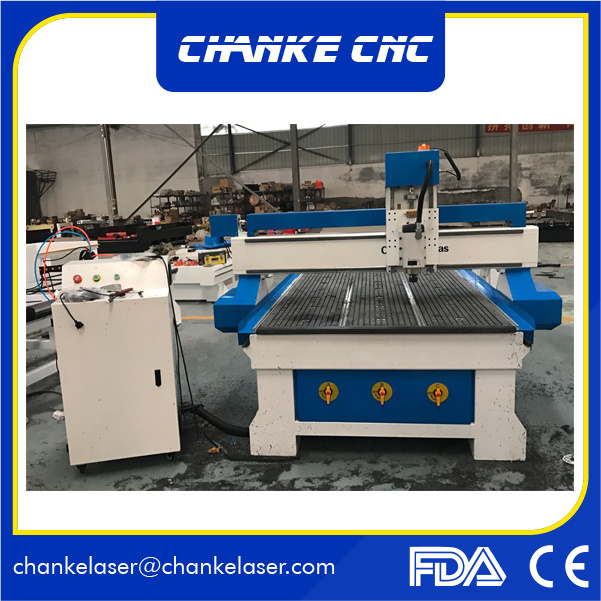

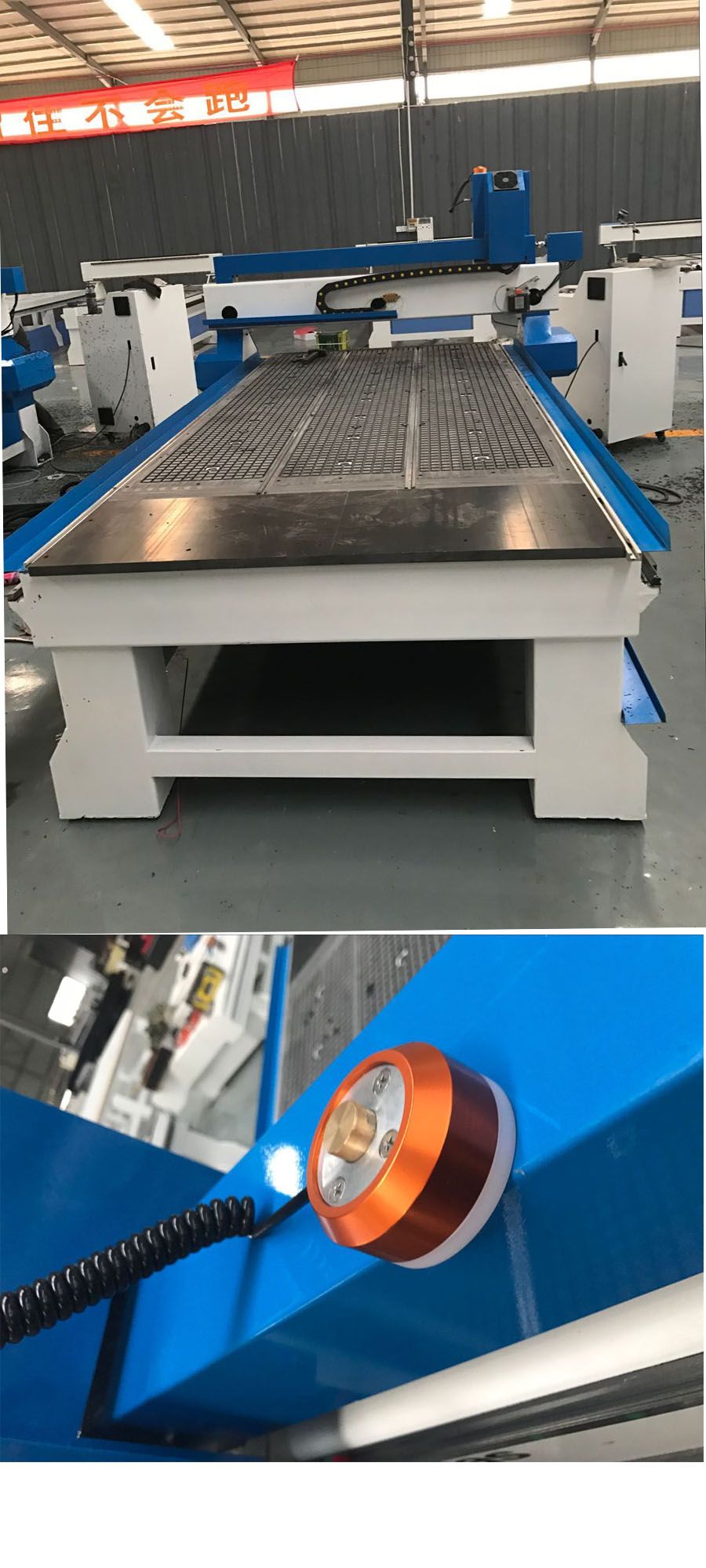

This machine is chanke company's vacuum table machine. It working size is: 1200x1800x200mm, vacuum table, using the vacuum pump to absorb the mould on the table, it is convenience for our users is don't need the materials holders, put the mould on the table , open the vacuum pump , then can working , but it has one point that not absorb the irregular , out of faltness mould , 3D embossment. This vacuum table machine fit for the users who has the large volume productions, it can improve the working efficiency, it is save the time and labor than the aluminium profile wood cnc router.
But aluminium profile wood working machine can work on the 3D embossment and the irregular , out of faltness mould.
So welcome to contact us when you need wood working machines on the wooden , MDF doors or the furniture....
Forget to tell you, we can according to your requipments to produce the wood cnc router machine, like the working size, the colour of this machine, using which size of driving motor.... so don't hesitate contact us !
Product discription

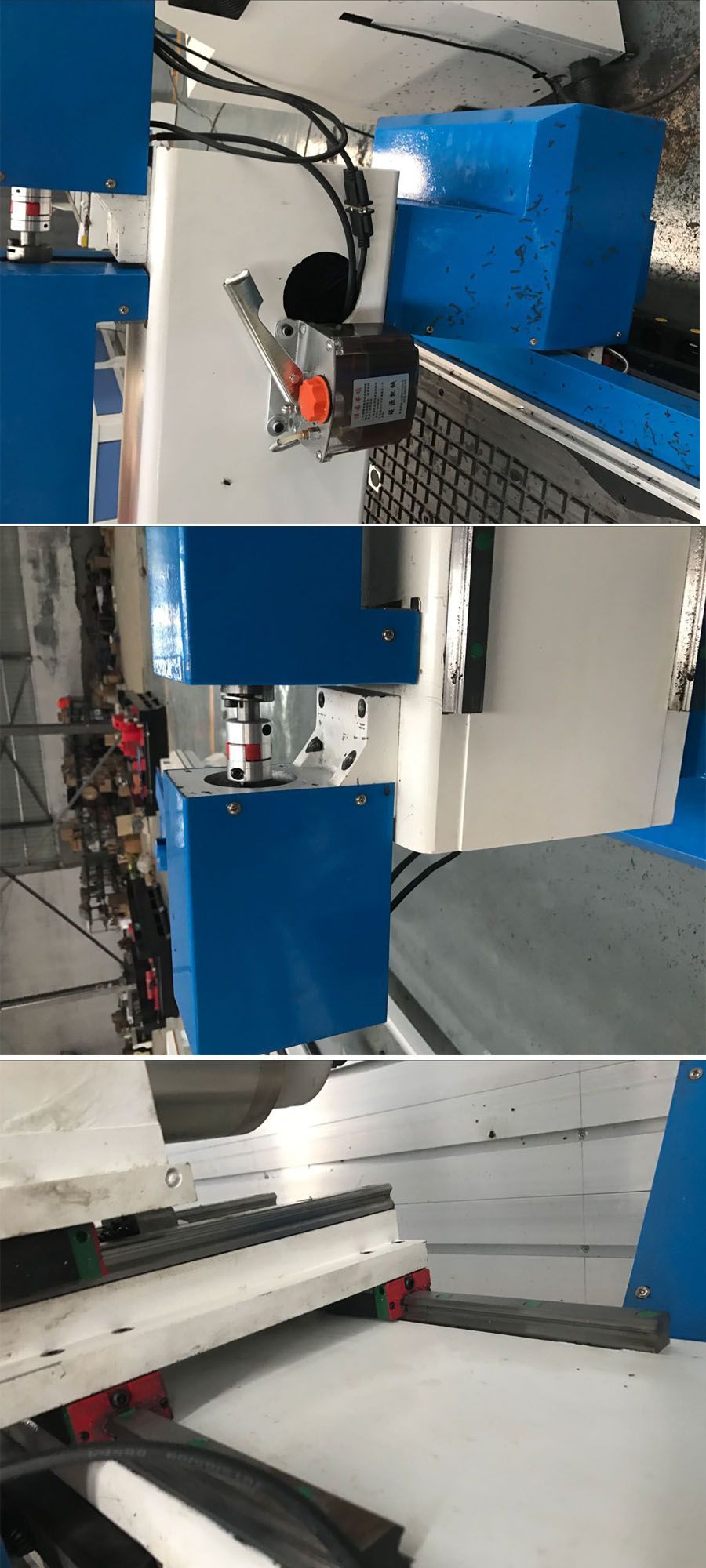

1)Adopt imported square guide rail ,double row slide block and the imported ball screw makes the machine working steadily, high precision and long life time.
2)With advanced DSP system,operated with the USB handle ,convenient operation ,humanization design.
3)Compatible with Type3/ artcam/castmate/proe/coreldraw/wentai and other CAD/CAM software

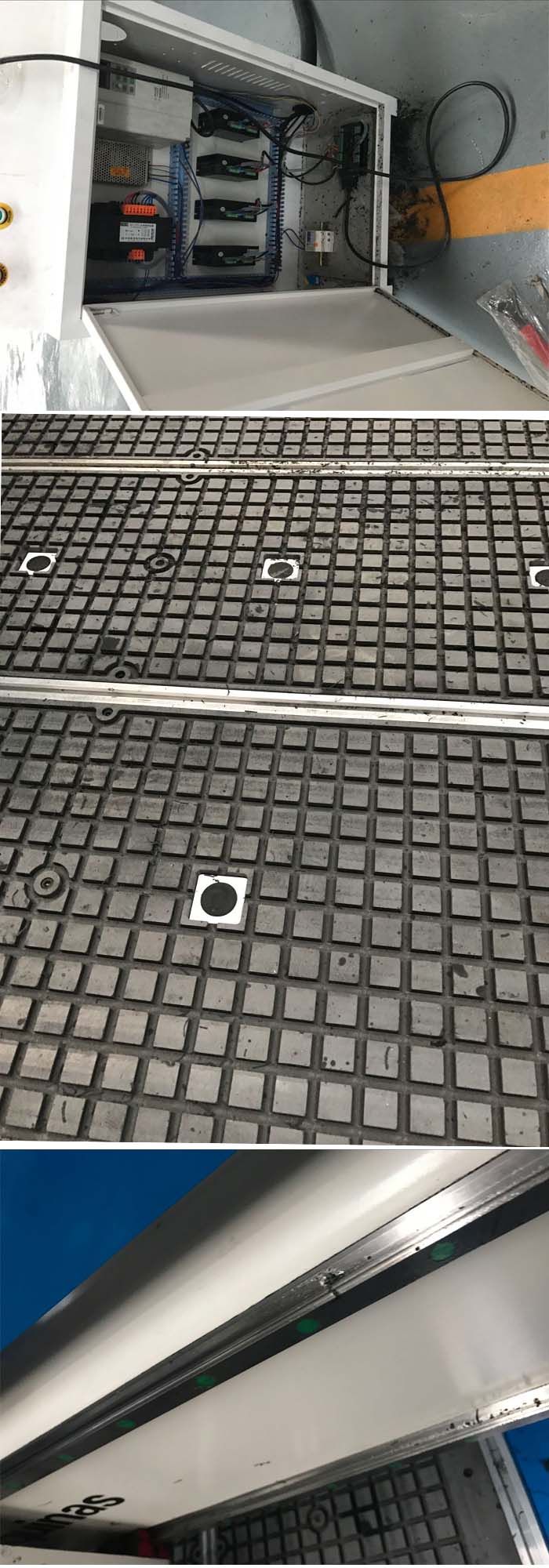

4)Vacuum table with six vacuum zones ,which can absorb different size materials.No oil vacuum pump ,high suction,more convenient,stable capability.
5)Adopt high speed stepper motor and drivers and two motors for the Y axis,max speed can reach to 35m/min,auto aligning system.
Applicable industry
Woodworking industry ,3D wave board processing,Cupboard doors,craft wooden doors,unpainting door,screen,crafts windows,milling and engraving on the furniture.
Applicable materials
MDF,wooden plate,veneer,wood ,application,PVC.
Model | CK1218MDF cnc router |
Working size | 1200*1800mm |
Z working travel | 120-450mm |
Working precision | +-0.04mm |
Table structure | Vacuum table |
Location precision | +-0.05mm |
Power consumable | 3KW |
Max idle speed | 50000mm/min |
Max working speed | 25000mm/min |
Spindle power | 2.2KW-9.0KWor HSD for choice |
Spindle rotate speed | 0-24000 r/min |
Working mode | Step motor ,option servo motor |
Working Voltage | AC380V/50HZ, AC380V/60HZ |
Run command | G Code ,UOO file |
Our service
we are factory manufacturer, so the quality of every parts of our products is monitered by our experienced technicians, we have confidence that our product will make you find a ready market. And we can also make special machines according to your detail needs. Moreover, our technicians can speak English, they can slove your problems directly in English.
Jinan Chanke Mechanical Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of laser engraving machine, laser cutting machine, wood CNC router, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the CE, FDA certificate.
We prize quality above all else. We have a talented engineers and an experienced workers team. They have been in laser and CNC router area for a lot of years and love these machines very much. Our QC department is famous for strict attitude. Every parts should be checked step by step.
Competitive Pricing, Small Profit, Large Quantity is our rule when pricing. We keep our prices low through enhancing production efficiency, reducing the number of rejects and leaving more profit margins for clients to help them to get more orders. In addition, all our prices are based on good quality raw materials.
The aim of Jinan Chanke Mechanical Equipment Co., Ltd is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
