Heavy Duty Warehouse Drive in Pallet Rack
| Price: | Negotiable/Ton |
|---|---|
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | SL-DR001-2 |
|---|---|
| Item: | Warehouse Drive in Pallet Rack |
| Rack Channel: | Single Way Entry or Double Way Entry |
| Colour: | Blue Upright and Orange Beam |
| Adjustable: | 75mm Per Pitch |
| Upright: | 88*68 or 100*68mm |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Semi-closed |
| Development: | New Type |
| Serviceability: | for Special Purpose |
| Weight: | Max 2000kg |
| Height: | 5~10m |
Product Description
Heavy Duty Warehouse Drive in Pallet Rack
Preview to drive in pallet rack system, the below message is going be very important.
| Customer's name | negotiable |
| Country | |
| What industry you belong to | |
| Pallet available right now | if yes, pls say size |
| if yes, pls say capacity | |
| How many SKU( stock keeping unit) | |
| Type of store ( say raw material, finished products etc.) | |
| Warehouse Specification | |
| Lifting equipment | |
| Rated Lifting Capacity | |
| Lifing Height Max | |
| Length by Width by Height | |
| How many SKU's do you want to store | Alternative |
| How many pallets do you want to store | |
| Function of warehouse | Store,Reject; in-bounding; out-bounding; Package&Labeling Office; Recharging for lifting; Please advise. |
Note for drive in warehouse rack system
| Rack channel for driving in | 1, single way entry: max 6 pallet depth 2, double way entry: max 13 pallet depth 3, with ground guiding rails |

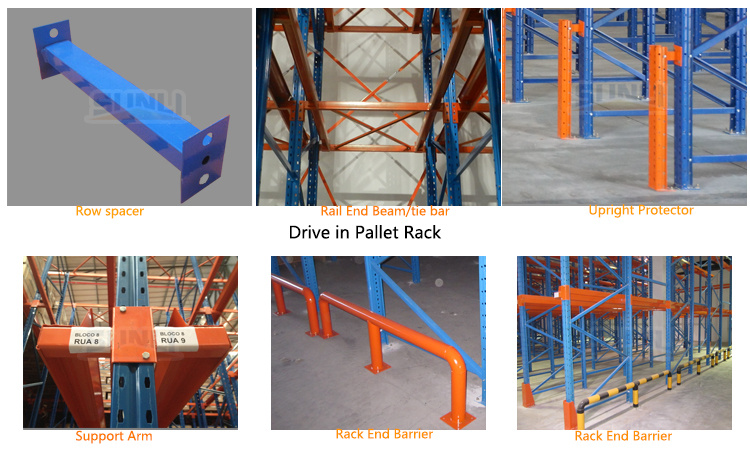

| Main protecting device | 1, upright protect in front 2, crash barrier along the driving in 3, top cross beams to make rack stable |
| colour | RAL SYSTE( www.RALCOLOUR.COM) |
| Installation | We can despatch 2 technical person overseas to do teach your workers |

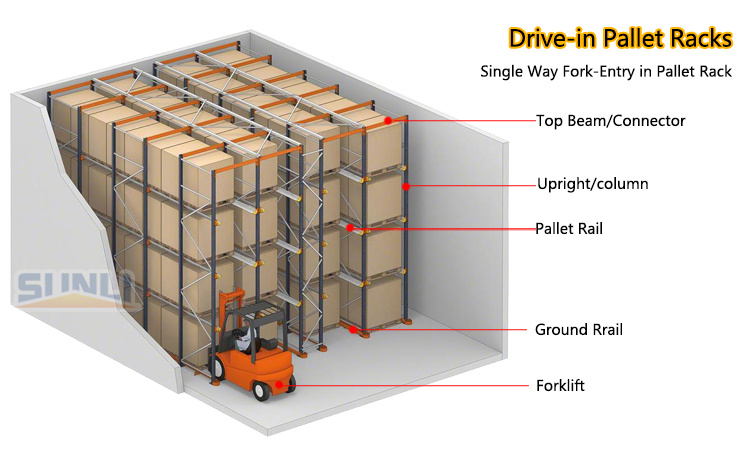

Pallet Rack with drive in channel

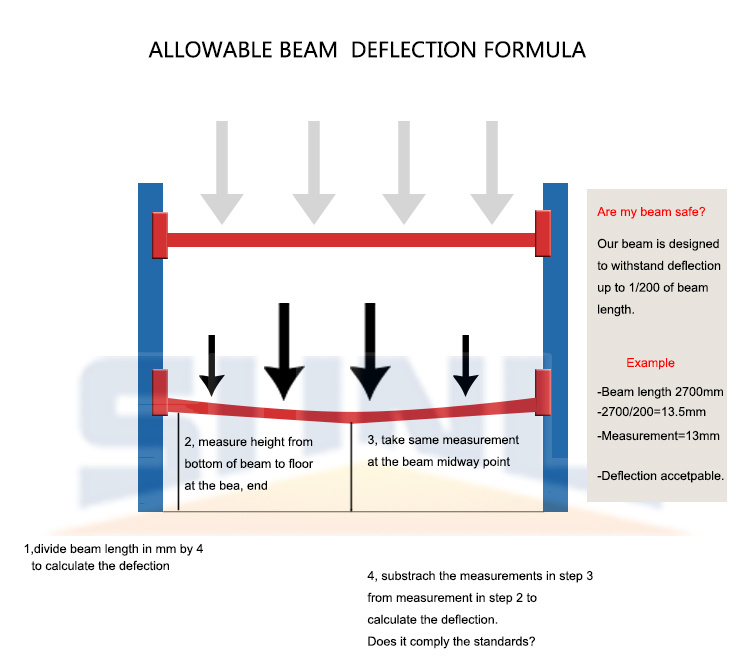

Safety capacity testing before shipment
Business scope within Sunli Company
| Pallet storage | Warehouse Rack | Double deep pallet rack |
Radio shuttle rack | Double deep pallet rack | |
| Accessories | Long span shelving rack | Mezzanine Rack System |
| Long items | Cantilever rack | Stackable Pallet Rack |
The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.
Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.
As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.
What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.
Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,
New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.
Sunli motto "Value beyond expectations
Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.
As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.
What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.
Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,
New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.
Sunli motto "Value beyond expectations
