Automantic Storage Radio Shuttle Pallet Rack
| Price: | US $ 0.6-1.3/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | SH |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: | CE, SGS, As4084, ISO |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Mobile |
| Height: | 5-15m |
| Closed: | Closed |
| Development: | New Type |
| Serviceability: | Common Use |
| Weight: | 1500kg |
Product Description
The high density pallet storage solution

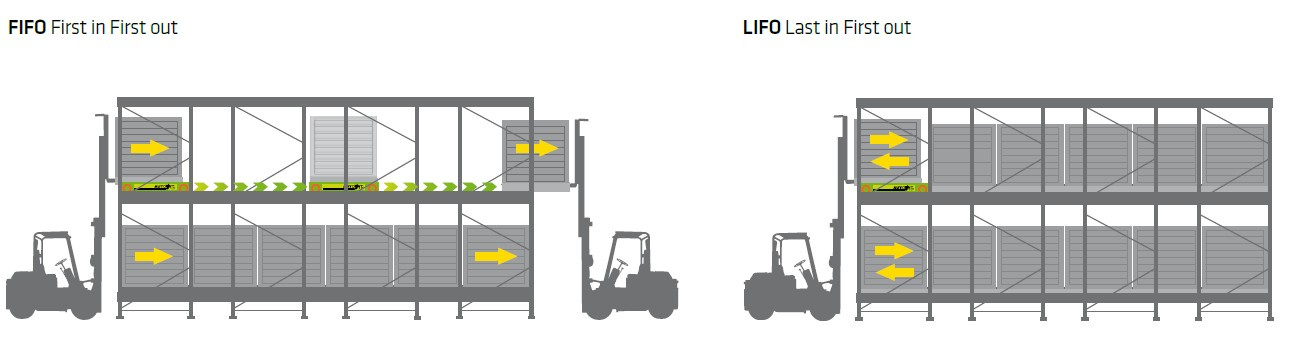

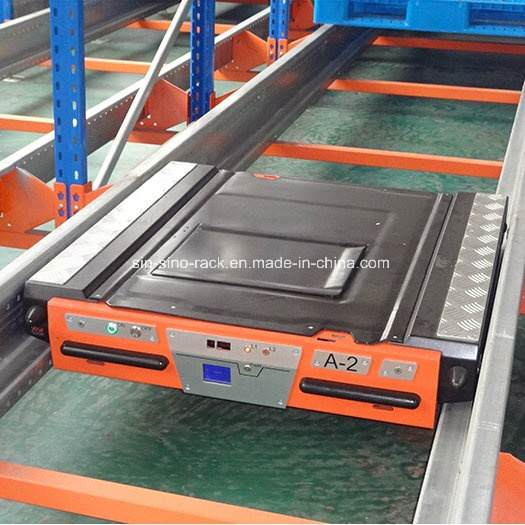

AUTOSAT is an automatic shuttle able to transform into an automatic warehouse all the drive-in racking systems, assuring the maximum use of the warhousing, making the facility more productive and efficient. AUTOSAT, powered by an innovative Lithium lon battery easy to recharge and managed by placed in the appropriate channel by means of a standard fork lift.
Applications:
Autosat benefits:
| -The operator's work is front warehouse. -No stress for the operator. -No damage to the goods. -No damage to the drive-in racking -Space optimization -Warehouse efficient organization. -Quick and silence movements. -Quickness working. -No modification to the fork lift. -Able to be used in the existing drive-in system. -Easy to use. -Custom set up. | -Minimum manteinance. -State of the art safety systems. -Lithium lon innovative technology. -Battery pack easy to change. -Innovative placement. -Effective auto stop system with load on board. -Machine operation data nonce on the display. -Autoservice: the skilled, easy, effective AUTOSAT maintenance manual buggy. -Suitable mode for frozen area up to -30.C. -Service all over the world. |

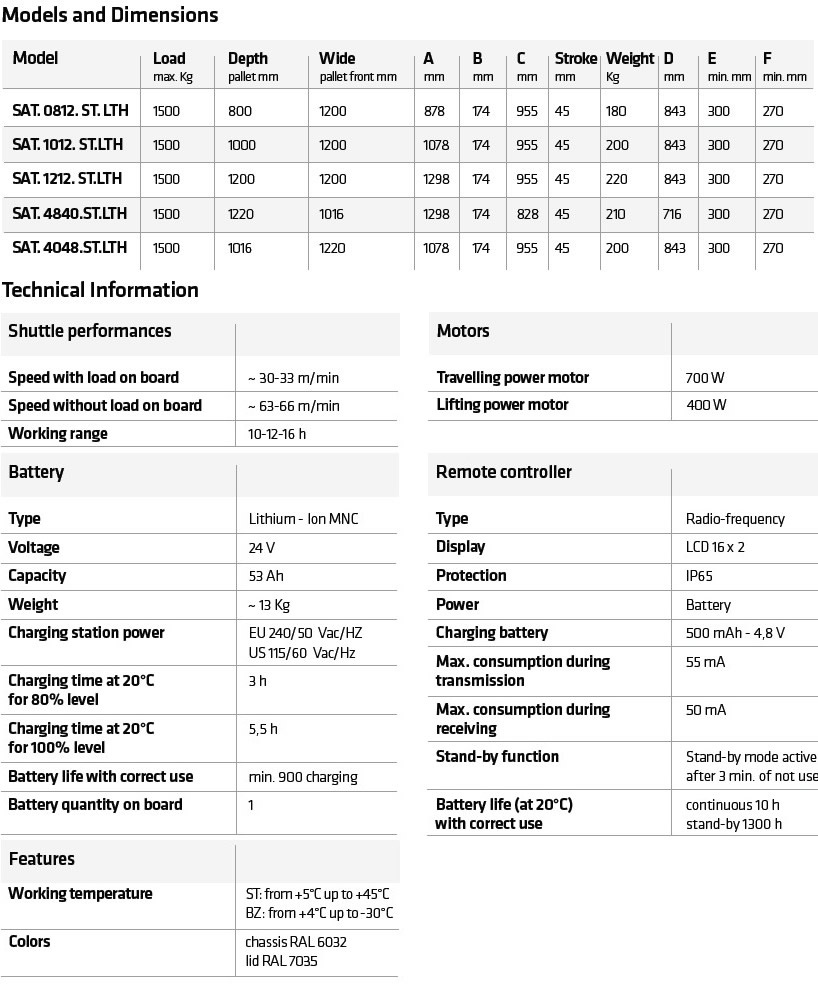

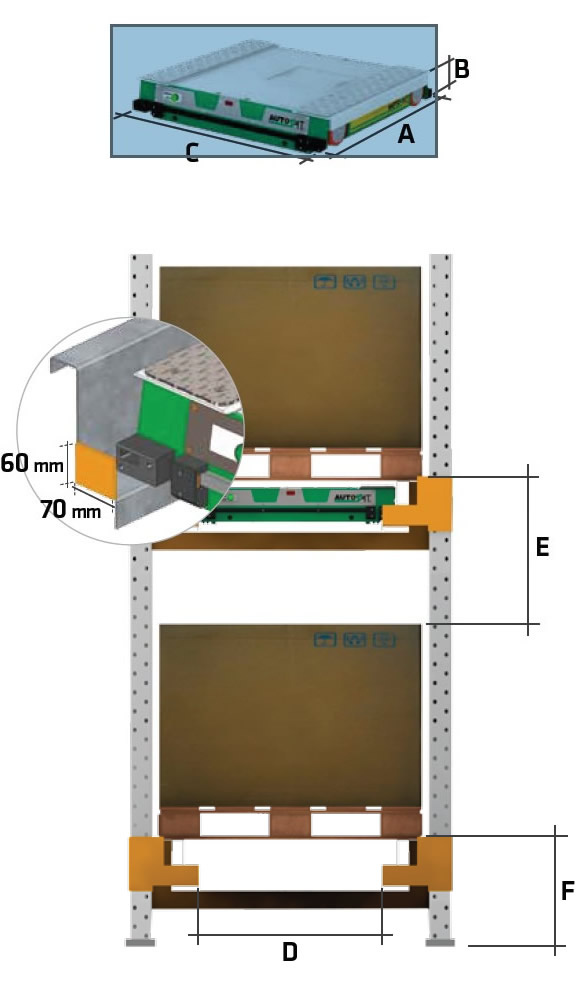

| Model | Load Max.Kg | Depth Pallet mm | Wide Pallet front mm | A mm | B mm | C mm | Stroke mm | Weight kg | D mm | E Min.mm | F Min.mm |
| SAT.0812.ST.LTH | 1500 | 800 | 1200 | 878 | 174 | 955 | 45 | 180 | 843 | 300 | 270 |
| SAT.1012.ST.LTH | 1500 | 1000 | 1200 | 1078 | 174 | 955 | 45 | 200 | 843 | 300 | 270 |
| SAT.1212.ST.LTH | 1500 | 1200 | 1200 | 1298 | 174 | 955 | 45 | 220 | 843 | 300 | 270 |
| SAT.4840.ST.LTH | 1500 | 1220 | 1016 | 1298 | 174 | 828 | 45 | 210 | 716 | 300 | 270 |
| SAT.4048.ST.LTH | 1500 | 1016 | 1220 | 1078 | 174 | 955 | 45 | 200 | 843 | 300 | 270 |
Technical Information
| Shuttle performances | Motors | |||
| Speed with load on board | ~20-33m/min | Travelling power motor | 700W | |
| Speed without load on board | ~63-66m/min | Lifting power motor | 400W | |
| Working range | 10-12-16h | |||
| Battery | Remote | |||
| Type | Lithium-lon MNC | Type | Radio-frequency | |
| Voltage | 24V | Display | LCD 16*2 | |
| Capacity | 53Ah | Protection | IP65 | |
| Weight | ~13kg | Power | Battery | |
| Charging station power | EU 240/50Vac/HZ US 115/60 Vac/HZ | Charging battery | 500mAH-4.8V | |
| Charaing time at 20 for 80% level | 3H | Max consumption during transmission | ||
| Charaing time at 20 for 100% level | 5,5H | Max consumption during receiving | ||
| Battery life with correct use | Min.900 charging | Stand-by function | Stand-by mode active after 3min.of not use | |
| Batteryquantity on board | 1 | Battery life(at 20OC) With correct use | Continuous 10h Stand-by 1300h | |
| Working temperature | ST:from+50C up to +450C BZ: from+40C up to -300C |
| Colors | Chassis RAL 6032 lid RAL 7035 |

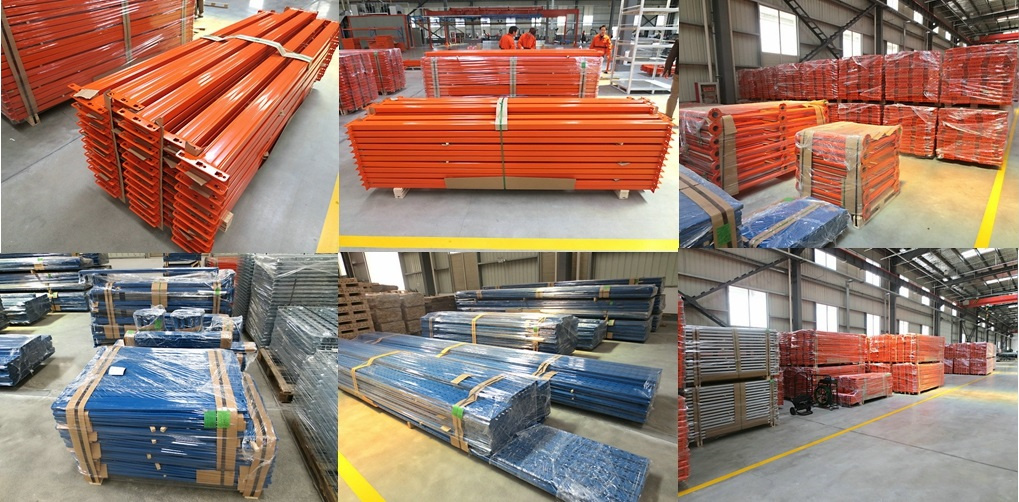

Package & Delivery:
Delivery:15-20 days after receive the advance.
Packing:Standard Export Seaworthy Packing.
Specification:
| Specifications of Beam | |||||
| Type | Item | Height(mm) | Width(mm) | Thickness(mm) | |
| P style Pipe(Step Beam) | 1 | 50 | 30 | 1.5 | |
| 2 | 60 | 40 | 1.5 | ||
| 3 | 80 | 50 | 1.5 | ||
| 4 | 110 | 70 | 1.5 | ||
| 5 | 140 | 70 | 1.5 | ||
| 6 | 160 | 70 | 1.5 | ||
| Box Beam | 7 | 80 | 50 | 1.5 | |
| 8 | 100 | 50 | 1.5 | ||
| 9 | 110 | 50 | 1.5 | ||
| 10 | 120 | 50 | 1.5 | ||
| 11 | 140 | 50 | 1.8 | ||
| 12 | 160 | 50 | 2.0 | ||
| Specifications of Upright | ||||
| Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
| 1 | 85 | 67 | 1.6 | 7000 |
| 2 | 85 | 67 | 1.8 | 8500 |
| 3 | 85 | 67 | 2.0 | 10000 |
| 4 | 85 | 67 | 2.3 | 12500 |
| 5 | 100 | 67 | 1.8 | 10500 |
| 6 | 100 | 67 | 2.0 | 12000 |
| 7 | 100 | 67 | 2.3 | 13800 |
| 8 | 100 | 95 | 2.0 | 12000 |
| 9 | 100 | 95 | 2.3 | 14500 |
| 10 | 100 | 95 | 2.5 | 16000 |
| 11 | 100 | 95 | 2.75 | 18000 |
| 12 | 100 | 95 | 3.0 | 20000 |
| 13 | 120 | 95 | 2.5 | 17000 |
| 14 | 120 | 95 | 2.75 | 19000 |
| 15 | 120 | 95 | 3.0 | 21000 |

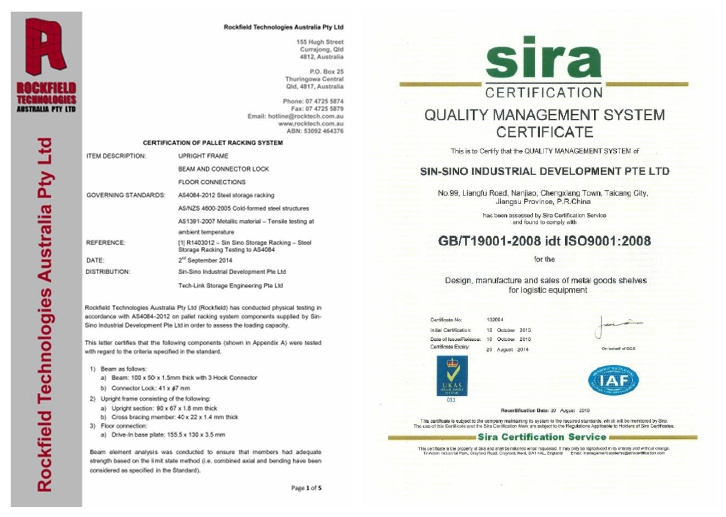

AS4084 Certificate&ISO9001
ABOUT SIN-SINO

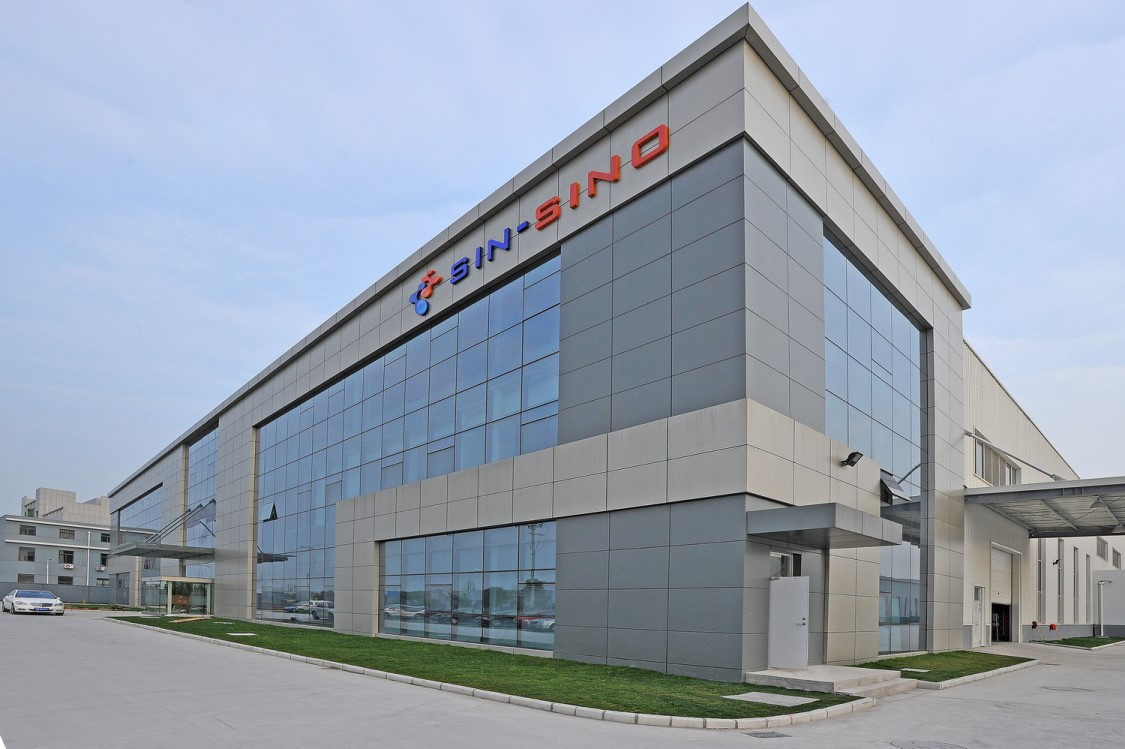

Sin-Sino United was incorporated inTai Cang, Jiangsu province RPC in 2011. Sin-Sino United State-of-the-art factory is locted at Tai Cang New Industrial park, site area 63,000 sq meter with a total invesment of USD100 million.
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions.
Sin-Sino United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satify end user and distirbutor needs. Our continuous inprovement programmes ensure that the most up-yo-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their invesment are protected and cost minimised.
Our Mission
To strive for innovation and serive leadership and exceed our customer expectations by being a learning organization that is self critical and is never satified with yesterdays Innovation and service.To develop better products and systems, whilst increasing quality and performance and reducing costs.
Sin-Sino United looks forwards to being part of your success!
Sin-Sino United was incorporated in Tai Cang, Jiangsu province PRC in 2011. SIN-SINO United State-of-the-art factory is located at Tai Cang New Industrial park, site area 63, 000 sq meter with a total investment of USD100 million
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions
SIN-SINO United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satisfy end user and distributor needs. Our continuous improvement programmes ensure that the most up-to-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their investment are protected and cost minimised.
Our MISSION
To strive for innovation and service leadership and exceed our customer expectations by being a learning organization that is self critical and is never satisfied with yesterdays Innovation and service. To develop better products and systems, whilst increasing quality and performance and reducing costs.
Sin-Sino United looks forward to being part of your success.
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions
SIN-SINO United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satisfy end user and distributor needs. Our continuous improvement programmes ensure that the most up-to-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their investment are protected and cost minimised.
Our MISSION
To strive for innovation and service leadership and exceed our customer expectations by being a learning organization that is self critical and is never satisfied with yesterdays Innovation and service. To develop better products and systems, whilst increasing quality and performance and reducing costs.
Sin-Sino United looks forward to being part of your success.
