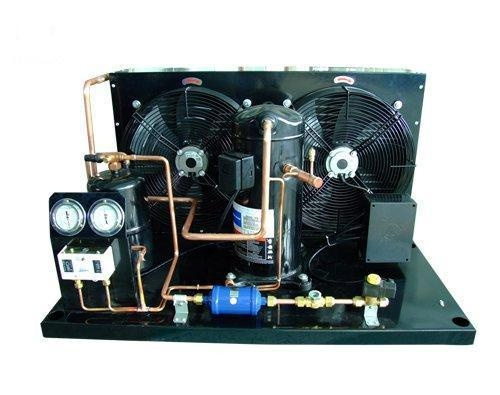

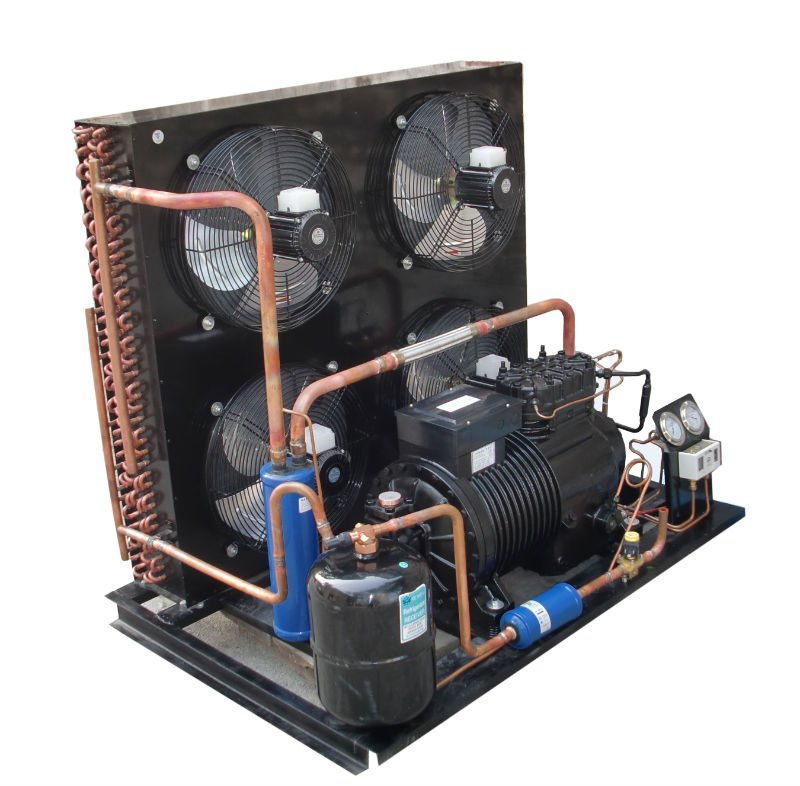

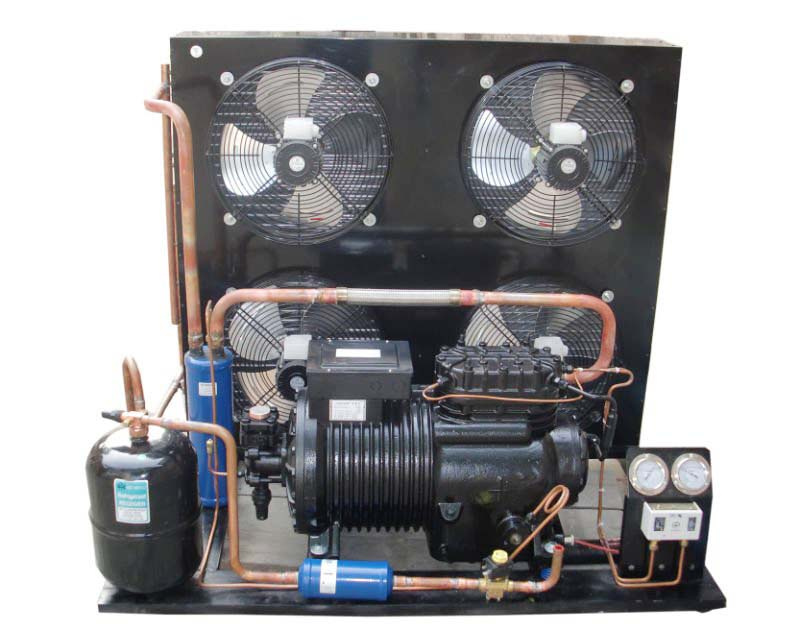

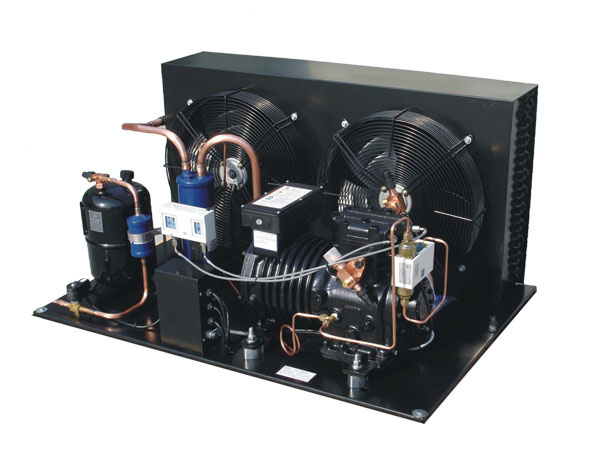

Air Cooled Single Screw Type Compressor Refrigerating Condensing Unit Rack High Temperature
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Technical Data: | Air Cooling Condensing Unit for Medium & High Temp |
|---|---|
| Power: | 380/400V-3pH-50Hz |
| Range Of EVA. Temp.(ºC): | 0 ~ -20 ºC |
| Fitting Environment Temp.(ºC): | +0 ~ -10 ºC |
| Certification: | CCC |
| Condition: | New |
Product Description
Characteristics:1. copeland air cooled condensing unit for medium & high temperature (environment +12oC~ -10 ºC)
2. copeland air cooled condensing unit for low temperature & frozen environment (-10 ºC ~ -30 ºC)
3.Equipped with icesta semi-hermetic piston compressor
4.Air cooled condensers are punched by high velocity ram machine. Folded by secondary operation :condenser coils are expanded by mechanical tube expansion to obtain high heat exchanging capacity.
5.Shell &tube water condensers use high efficient wire-whorled copper pipes which can highly increase condensers' heat exchanging efficient. Take small volume and keep light weight All condensers are produced and inspected strictly based on "Pressure Vessel of Refrigeration equipment" to ensure products' quality.
6.Equipped with well-known brand of refrigeration parts:
1)Normal configuration: filter drier, solenoid valve, double pressure controller, high & low pressure meter.
2)Standard configuration :vibration absorber, oil separator, filter drier, sight glass. solenoid valve, double pressure controller, high & low pressure meter.
7.We offer additional parts to meet your special requests.
Other components:
Receiver, solenoid valve, dry filter, sight glass, higher pressure meter, low pressure meter, pressure controller, unit frame
Optional components:
Shock absorber, oil separator, gas liquid separator
If you need any further information, please feel free to contact us.
We offer customize service, OEM welcomed!
| Technical data | Air cooling condensing unit for medium & high temperature | |||||
| Unit model | CCU2-030A | CCU2-040A | CCU2-050A | CCU2-080A | CCU2-100A | CCU3-150A |
| Compressor model | CCU2-030 | CCU2-040 | CCU2-050 | CCU2-080 | CCU2-100 | CCU3-150 |
| Nominal motor power (KW) | 2.2 | 3 | 3.7 | 5.88 | 7.35 | 11 |
| Displacement (W) | 5314 | 6622 | 8745 | 12334 | 17746 | 25774 |
| Refrigerant | R22 | |||||
| Power | 380/400V-3PH-50Hz | |||||
| Starting Current (A) | 30-32 | 38-44 | 53-58 | 74-81 | 112-126 | 162-184 |
| Max Operating current(A) | 5.7 | 7.6 | 8.6 | 15 | 17.6 | 24.3 |
| Crankcase heater (W) | 60 | 60 | 60 | 120 | 180 | 180 |
| Power of condensing fan motor | 180 | 250 | 250 | 370 | 250x2 | 370x2 |
| Fan motor working current | 0.4 | 0.55 | 0.55 | 0.8 | 0.55x2 | 0.8x2 |
| Range of Eva. Temp.(ºC) | 0 ~ -20 ºC | |||||
| Fitting environment Temp.(ºC) | +0 ~ -10 ºC | |||||
Q: What information do you need to provide in order to get a quotation?
A: Generally, we need following information for providing the quotation.
1) Water cooled or air cooled.
2) Cooling Capacity.
3) Power supply.
4) Refrigerant R22 or R404A.
5) Evaporating temperature(Required cold room temperature)
6) Condensing temperature(Local ambient temperature)
7) Compressor brand
Other special requirements......
Q: Can I have a samples for testing before ordering products?
A: Yes, you can. We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.
Q: What is the warranty of products?
A: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
