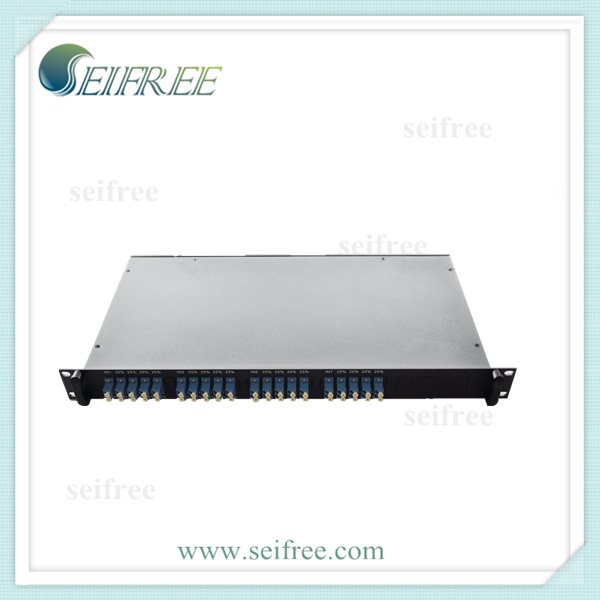

1X4 Rack Mount Fiber PLC Splitter Module (8in1)
| Price: | US $ 78-80/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | T/T |
| Prod Model: | SPLCS-14(8in1)-2-3-0-0-D3-LU |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 485X43.5X230 1u 19' Rack |
| Ports: | 1X4, 8in1 |
| Connector Type: | LC/Upc |
| Fiber Type: | G657A |
| Application 1: | Rackmount Chassis |
| Application 2: | Optical Distribution Box |
| Application 3: | Optical Closure Parts |
| Application 4: | Cable Management |
| Application 5: | CATV Equipment |
| Application 6: | FTTH Solution |
| Type: | Optical Fiber Distribution Box |
| Wiring Devices: | Integrated Wiring |
| Certification: | RoHS |
| Condition: | New |
Product Description
Description
The Single Mode Planar Lightwave Circuits Splitter based on real time 6 DOF optical alignment monitoring and feedback technologies. The devices are designed and manufactured to meet Telcordia GR-1221-CORE requirements and RoHS compliant.
Applications Features
Telecommunication system Low excess loss
Access network Low PDL
FTTH High reliability
PON
CATV
Ordering Information
SPLCS- - - - - - -
| Ports | Fiber Type* | In Pigtail Dia. | Out Pigtail Dia. | Pigtail Length | Package | Connector Type |
| 14=1x4 | 1=G652D | 02=0.25mm | R=Ribbon Fiber | 05=50cm | B2(3) | FU(A)=FC/UPC(APC) |
| 24=2x4 | 2=G657A | 09=0.9mm | 09=0.9mm | 10=100cm | C2 | SU(A)=SC/UPC(APC) |
| 18=1X8 | / | 2=2mm | 2=2mm | D1(3) | ||
| 3=3mm | 3=3mm | 20=200cm | / | LU(A)=LC/UPC(APC) | ||
| 264=2x64 | X=Customization | |||||
Specification
| Operating Wavelength | 1260~1650 nm | Parameter | Unit | Value | |||||
| Ports (N) | 1 (M) | 2 (M) | Fiber Type | / | G652D/ G657A* | ||||
| Insertion Loss | PDL | Uni. | Insertion Loss | PDL | Uni. | Directivity | dB | >55 | |
| 2 | ≤4.30 | ≤0.20 | ≤0.50 | ≤4.50 | ≤0.20 | ≤0.80 | Return Loss | dB | >50 |
| 4 | ≤7.40 | ≤0.30 | ≤0.80 | ≤7.60 | ≤0.30 | ≤1.00 | Pigtail Dia. | mm | 0.25/ 0.9 / 2 / 3 |
| 8 | ≤10.7 | ≤0.30 | ≤1.00 | ≤11.0 | ≤0.30 | ≤1.20 | Pigtail Length | cm | >50 |
| 16 | ≤13.9 | ≤0.30 | ≤1.40 | ≤14.8 | ≤0.30 | ≤1.50 | Operating Tem. | °C | -40~ +85 |
| 32 | ≤17.2 | ≤0.30 | ≤1.60 | ≤17.8 | ≤0.30 | ≤1.80 | Storage Tem. | °C | -40~ +85 |
| 64 | ≤21.5 | ≤0.50 | ≤2.00 | ≤21.5 | ≤0.50 | ≤2.00 | / | ||
FAQ1.Is your company a manufacturer or dealer?
---We have our own factory in Wuhan, China.
2.Can you provide free samples for us?
---Sure, we can provide free samples for you, but the freight should be paid by you.
3.What's the lead time for all the goods that I required?
---It depend on the quantity of products. Generally, it would be 1-2 weeks.
4.What's the warranty for your products?
----Normally it is 1 year.
5.What's your payment term?
---It is 100% T/T in advance.
6.What's the MOQ for your products?
---1pcs is okay.
Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.
The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.
We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.
We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.
We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.
We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
