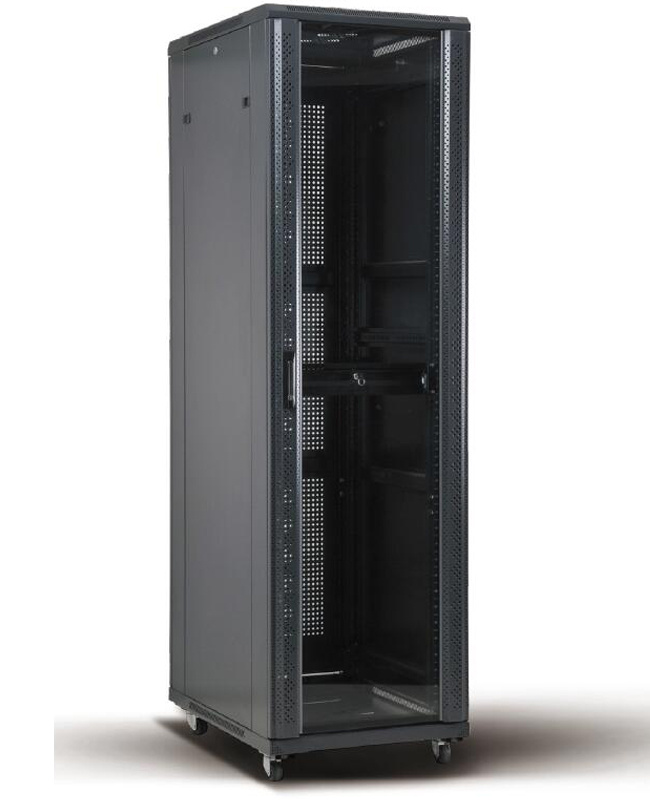

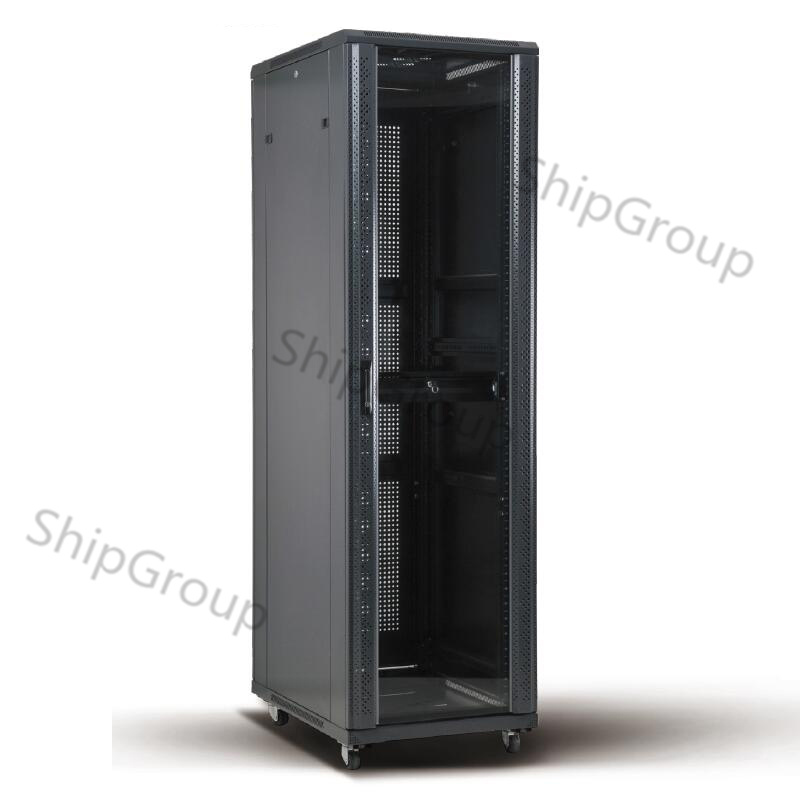

Home LED Light Products 19" Network Cabinets/ Data Rack
19" Network Cabinets/ Data Rack
| Price: | US $ 82-240/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | 601S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | SPCC Cold Rolled Steel |
| Loading Capacity: | 800 Kgs |
| Color: | Ral7035 / Ral9004 |
| Type: | Network Cabinet |
| Usage: | Network Integration System |
| Installation: | Vertical |
| Fan Number: | Four |
| Capacity: | 30U-40U |
| Certification: | GS |
| Condition: | New |
Product Description
Product Description:Standard:
Comply with ANSI/EIA RS-310-D, IEC60297-2, DIN41494 PART 1;DIN41494;PART 7
Material:
SPCC Cold Rolled Steel:
19" rails: 2.0 mm
Side panel: 1.0mm
Others: 1.2 mm
Colour:
RAL 7035 / RAL 9004
Loading Capacity:
800 KGS
Main Features:
§ Exquite design with precise dimension and craftsmanship;
§ Several styles of front and rear doors optional availble.
§ Adjustable feet and heavy duty castors are both available
§ Cable entry on both top and bottom panel are size-adjustable
§ Optional installation of plinth to enable cabinets fixation, under-base cable entry/ventilation
§ Effecient and reliable cabinet connection by baying kit
§ Removable side panels to ease maintain.

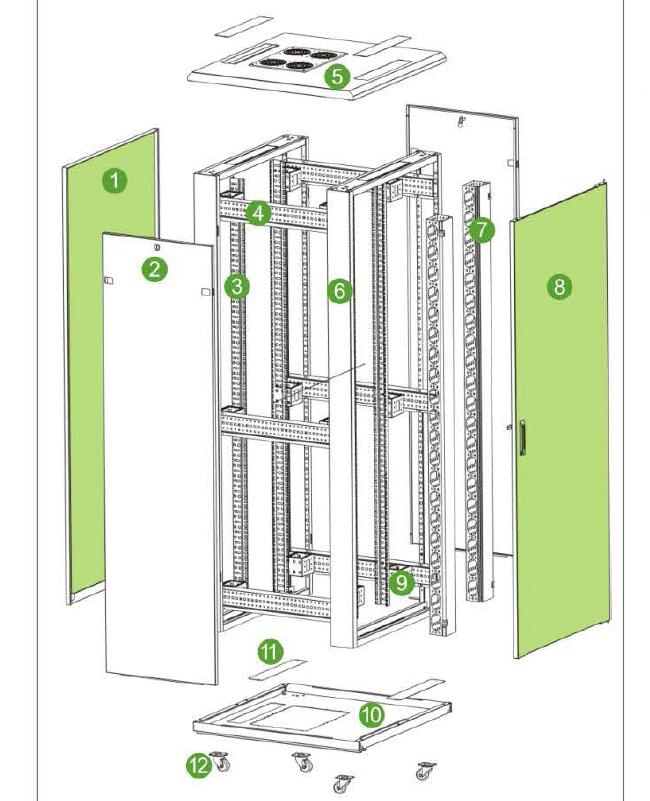

| S/N | Specification | Qty | Material | Surface Finish | Remark |
| 1 | Rear Door | 1 | --- | --- | |
| 2 | Side Panel | 2 | SPCC t1.0 | Powder coated | small round lock |
| 3 | 19" rails | 4 | SPCC t2.0 | Powder coated | |
| 4 | Mounting Angle | 4/6 | SPCC t1.2 | Powder coated | 6 pcs for over 33U |
| 5 | Top Cover | 1 | SPCC t1.2 | Powder coated | |
| 6 | Frame | 2 | SPCC t1.2 | Powder coated | |
| 7 | Cable management Slot | 2 | SPCC t1.0 | Powder coated | for 800mm width cabinet |
| 8 | Front door | 1 | --- | --- | |
| 9 | Mounting spacer | 8/12 | SPCC t1.2 | Powder coated | for 800mm width cabinet |
| 10 | Bottom | 1 | SPCC t1.2 | Powder coated | |
| 11 | Cable entry panel | 4 | SPCC t1.2 | Powder coated | |
| 12 | 2" Heavy duty castors | 4 | --- | --- | |
| Hardware Kits with the cabinet | |||||
| A | M12 adjustabe feet | 4 | steel | Zinc plated | Height: 100mm |
| B | M6 screws & nuts | 20/40 | steel | Zinc plated | 40 pcs for over 33U |
| C | Trox tooling | 1 | steel | Zinc plated | |
