Warehouse Storage Heavy Duty Pallet Rack Us Teardrop Pallet Racking
| Price: | US $ 90-110/Set |
|---|---|
| Min Order: | 20/Set |
| Pay Type: | L/C,T/T |

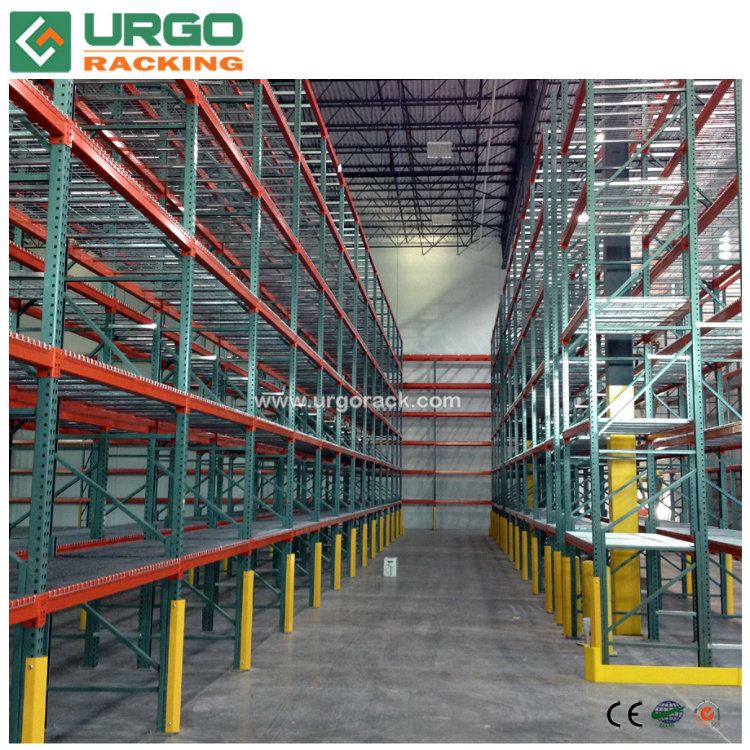

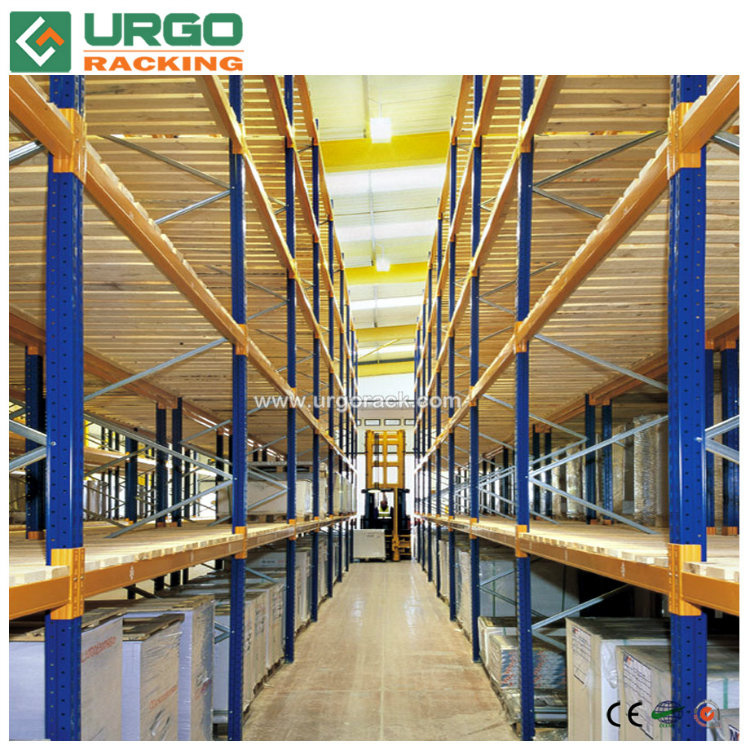

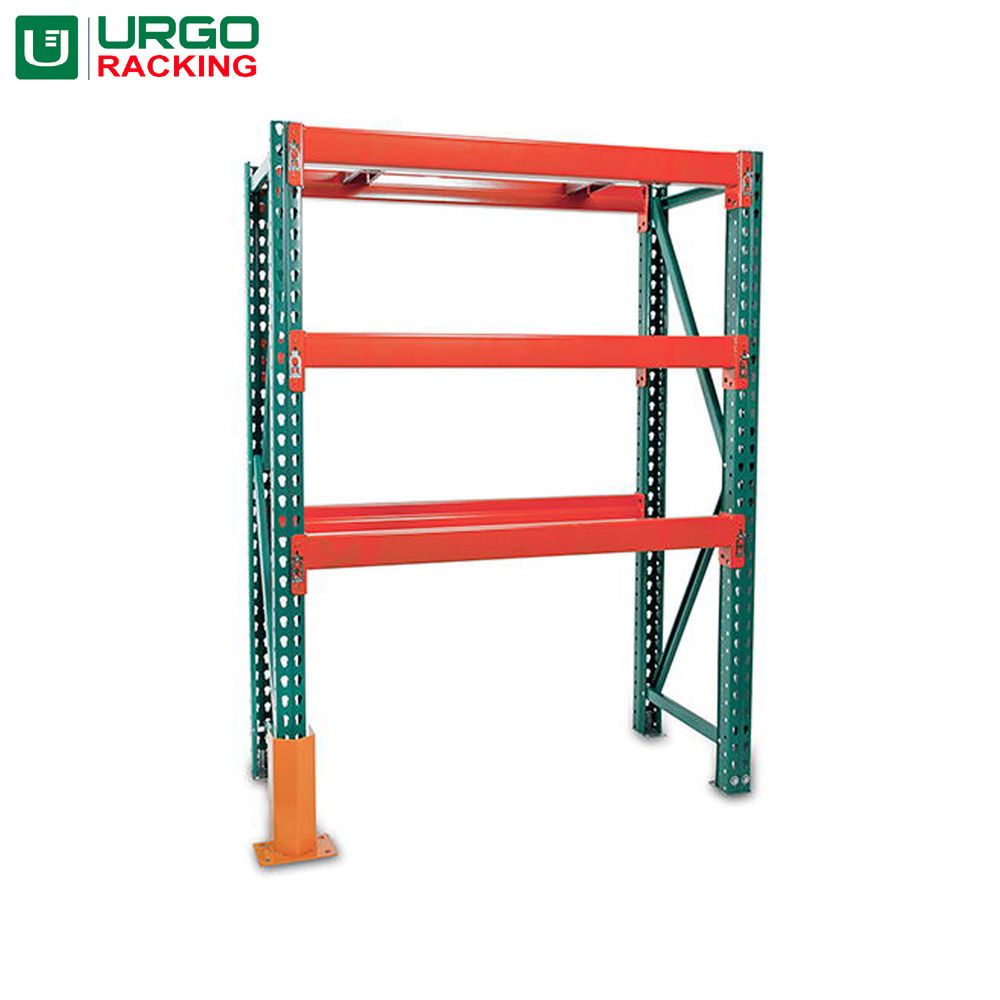

Warehouse storage heavy duty pallet rack US teardrop pallet racking

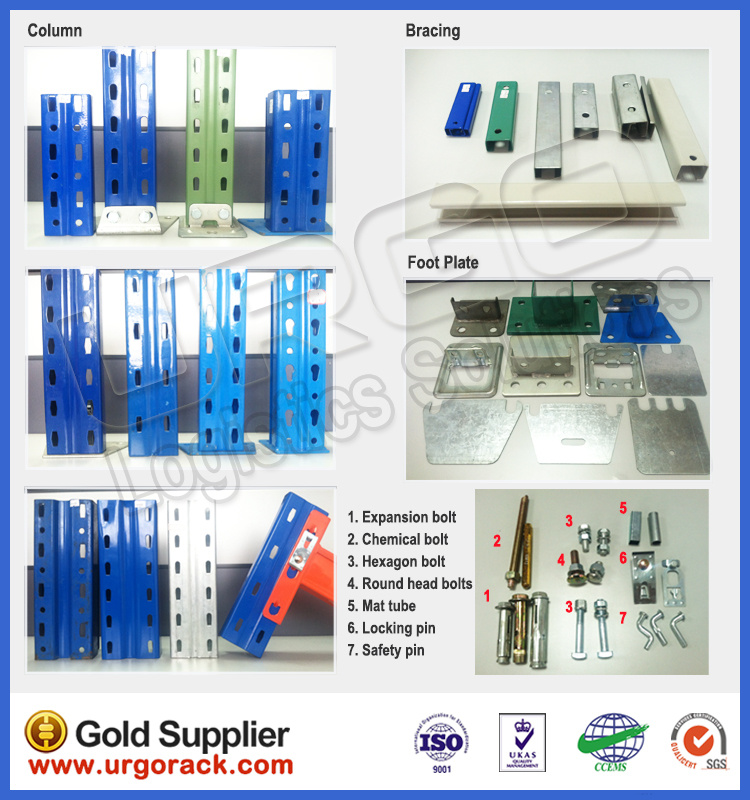

Upright:
1. High load capacity up to 21000kg.
2. Frames include all the elements needed for assembly: bracing, feet and nuts & bolts.
3. Blue epoxy coated (RAL 5012/5015/5017).
4. Standard heights : From 2 to 11.5m.
5. Adjusted by 50/75mm pitch.
Column Profiles:
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000KG |
Beam:
1. High load capacity up to 5000kg.
2 .Manufactured with the highest quality steel Q235.
3. Orange epoxy coated (RAL 2004).
4. Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm
5. Boltless connection with 3/ 4/ 5 connector hooks.
6. A security pins per beam to prevent accidental dislodgement.
7. Powder coating finish
Beam Profiles:
Loading (kg) Specification (mm) | The Length of Box Beam (mm) | ||||||||
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | ||||
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | ||
| 100 x 50 1.5 | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | |||
| 110 x 50 x 1.5 | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | |||
| 120 x 50 x 1.5 | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | |||
| 140 x 50 x 1.5 | 3868 | 3330 | 2720 | 2370 | 2020 | ||||
| 160 x 50 x 1.5 | 4220 | 3690 | 2970 | 2600 | 2340 | ||||
| 160 x 50 x 1.8 | 4400 | 3420 | 3020 | 2590 | |||||
| 160 x 50 x 2.0 | 4130 | 4170 | 3320 | 2840 | |||||
Loading (kg) Specification (mm) | The Length of P Box Beam (mm) | ||||||||
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | ||
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | |
| 120 x 50 x 1.5 | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 | |
| 140 x 50 x 1.5 | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 | |
| Prod Model: | PR201805 |
|---|---|
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | Common Use |
| Weight: | 500-4000 |
Nanjing Urgo Logistics Equipment Co., Ltd is located in Jiangning Economic Development Zone, Nanjing City, China, Set the development, design, production, sales, installation and after sale service in one, after years of development, she has become the leading manufacturer of logistics and warehousing equipment First, she is recognized as one of the industry leaders.
Since Urgo company has been set up to talent as a fundamental, take the market as the guidance, take the quality as the guarantee, to serve for the purpose of philosophy, with strong technical force, advanced production equipment, mature with processing technology, perfect quality assurance system and provide first-class products and services to the domestic and foreign customers.
Urgo all products have a stable structure, innovative design, reliable quality advantages. So they are exported to 50 countries worldwide, such as USA, Canada, India, Japan, Australia, New Zealand, Italy and South Africa and so on. In the domestic and foreign clients and peer supports, She is to develop advanced management, modernization of equipment, high-speed, and strive to become bigger, stronger "URGO" brand visibility and influence the nation and the world, and to become a world-class logistics equipment manufacturer.
Since Urgo company has been set up to talent as a fundamental, take the market as the guidance, take the quality as the guarantee, to serve for the purpose of philosophy, with strong technical force, advanced production equipment, mature with processing technology, perfect quality assurance system and provide first-class products and services to the domestic and foreign customers.
Urgo all products have a stable structure, innovative design, reliable quality advantages. So they are exported to 50 countries worldwide, such as USA, Canada, India, Japan, Australia, New Zealand, Italy and South Africa and so on. In the domestic and foreign clients and peer supports, She is to develop advanced management, modernization of equipment, high-speed, and strive to become bigger, stronger "URGO" brand visibility and influence the nation and the world, and to become a world-class logistics equipment manufacturer.
