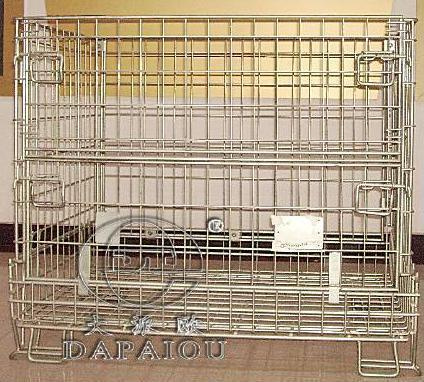

Warehouse Cage with Zinc Coating
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Warehouse Rack
Product Description
Our company can offer various types storage cage, they are widely used in raw materials, semi finished temporary storage, distribution and other logistics during the operation, either as a three-dimensional handling, storage, transport carrier, use reusable containers can be used as material for mechanical handling, lower costs ,Improve efficiency.
And our company can produce the product according to customers' requirements.
Advantage:
(1)It is made of high quality steel materials and formed by cold harden welding. It has big strength, good load capability and four folded layers.
(2)Folding structure makes loading, revolving and storing much convenient. It can be accumulated to save space when it is not used.
(3)The surface is zinc plated, so it is beautiful and durable.
(4)It is in accordance with international standards, and can be used with containers. It's also the replacement of wooden cases.
About US
Factory: Suzhou Dalin Metal Products CO.LTD
The factory is located in the west suburb of changshu city, which is a beautiful place
We are an Industrial & Trade Co., Ltd, .which has been specialized in the Supermarket & Rack & Storage Equipment And Other Metal Products since 1998.
And now we have 3 workshop,have own spray line.
We directly supplied the quality products at the best competitive prices with our sincere service for all global buyers.
Product Description
Our company can offer various types storage cage, they are widely used in raw materials, semi finished temporary storage, distribution and other logistics during the operation, either as a three-dimensional handling, storage, transport carrier, use reusable containers can be used as material for mechanical handling, lower costs ,Improve efficiency.
And our company can produce the product according to customers' requirements.
| Model No. | Size (mm) | Insight height | Loading capacity | Shelf weight | 20'GP | 40'GP | Remark |
| DLRQ-1a (wood pallet) | 1200L*1000W*1000 | 870mm | 1000KG | 63KG/set | 98pcs | 203pcs | wood pallet |
| DLRQ-1b(pallet with wheels) | 1200L*1000W*1150 | 870mm | 500-1000KG | 75KG/set | 70pcs | 150pcs | the steel bottom |
| DLRQ-2a(wood pallet) | 1200L*1200W*1000 | 870mm | 1000KG | 76KG/set | 85pcs | 175pcs | 4 activities wheels |
| DLRQ-2b(pallet with wheels) | 1200L*1000W*1150 | 870mm | 500-1000KG | 95KG/set | 66pcs | 130pcs | steel bottom |
- Material: Low carbon steel
- Surface treatment: electro galvanized, hot dipped galvanized
- Loading capacity:1000-3000kg
- Available in 5 to 14mm galvanized welded mesh
- Legs are wrapped and welded around the based-no edges to scratch floors or people
- Double wire reinforcements at load-bearing surface and top edges
- Base inside walls protect content from damage
- Open wire mesh design allows for full visibility for inventory checks, ventilation and cleanliness
- Adapts patented technology, with new pattern and unique design, Can also design and produce commercial storage equipment of various specifications according to customer's requirements
- Offers overall arrangement for all kinds of markets and warehouses .
| Outer Size(mm) | Wire Diameter | Volume(m2) | Mesh Spacing | Clearance Size(mm) | Load Bearing(kg) | ||||
| L | W | H | L | W | H | ||||
| 800 | 600 | 650 | 6 | 0.22 | 50*50 | 760 | 570 | 500 | 800 |
| 800 | 600 | 650 | 5.5 | 0.22 | 50*50 | 760 | 570 | 500 | 700 |
| 1000 | 800 | 850 | 6 | 0.51 | 50*50 | 960 | 770 | 700 | 1200 |
| 1200 | 1000 | 900 | 6 | 0.84 | 50*50 | 1160 | 970 | 750 | 1500 |
| 1000 | 800 | 500 | 6.4 | 0.28 | 50*50 | 960 | 770 | 360 | 1000 |
| 1200 | 1000 | 900 | 6.4 | 0.84 | 50*50 | 1160 | 970 | 750 | 2000 |
| 800 | 500 | 540 | 5 | 0.16 | 25*50 | 760 | 470 | 400 | 500 |
| 1000 | 800 | 850 | 5 | 0.51 | 50*50 | 960 | 770 | 700 | 500 |
| 1000 | 800 | 850 | 6.4 | 0.51 | 50*100 | 960 | 770 | 700 | 1000 |
| 1000 | 800 | 850 | 6 | 0.51 | 50*100 | 960 | 770 | 700 | 1000 |
| 1200 | 1000 | 890 | 6.4 | 0.84 | 50*100 | 1160 | 970 | 750 | 1000 |
| 1200 | 1000 | 890 | 6 | 0.84 | 50*100 | 1160 | 970 | 750 | 1000 |
Advantage:
(1)It is made of high quality steel materials and formed by cold harden welding. It has big strength, good load capability and four folded layers.
(2)Folding structure makes loading, revolving and storing much convenient. It can be accumulated to save space when it is not used.
(3)The surface is zinc plated, so it is beautiful and durable.
(4)It is in accordance with international standards, and can be used with containers. It's also the replacement of wooden cases.
| Packing | 1.LCL: packed with plastic film then on the pallets 2.FCL: Nude packing 3.Other special package according to customers' requirements. |
About US
Factory: Suzhou Dalin Metal Products CO.LTD
The factory is located in the west suburb of changshu city, which is a beautiful place
We are an Industrial & Trade Co., Ltd, .which has been specialized in the Supermarket & Rack & Storage Equipment And Other Metal Products since 1998.
And now we have 3 workshop,have own spray line.
We directly supplied the quality products at the best competitive prices with our sincere service for all global buyers.
| Prod Model: | DL-Cage |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Finshed: | Good Powder Coating |
| Type: | Export Storage Cage |
| Mesh Spacing: | 50mm?รก100mm |
| Wire Diameter: | 4.8mm |
| Feet Height: | 120mm |
Suzhou Dalin Metal Products Co., Ltd. is a professional manufacturer of racks and logistic equipments, whose major products include racks, various light, medium and heavy storage racks, model racks, logistic table trolleys, trolleys, storage cages, shopping mall and logistic equipments. It is capable of designing various storage racks upon the customers' requirements.
Our company boasts powerful technical strength and advanced equipments, and the factory has introduced the latest models of full automatic surface phosphorization treatment and static epoxy resin powder plastic coating from both at home and abroad. It has also introduced the large foreign storage assembly lines, which can manufacture heavy storage series with the height from 2m to 12m and bearing the weight from 50kg to 3, 000kg for every shelf. The quality of the products all can reach the international advanced level. Since its founding in 1998, the products are very popular in the shopping centers, supermarkets, factory warehouses and distribution fields.
In 2003, our products began to enter the international markets, and some are exported to the Middle-East, America, France, and Germany. With fine quality performance and excellent services, they have won the universal praise from the customers and established sound reputation among the rack industries in China.
At present, the company strictly observes ISO9001 International Quality Management System. We will continue to explore and make innovations, and accompany you to get succeed with our best products, services and prices.
Our company boasts powerful technical strength and advanced equipments, and the factory has introduced the latest models of full automatic surface phosphorization treatment and static epoxy resin powder plastic coating from both at home and abroad. It has also introduced the large foreign storage assembly lines, which can manufacture heavy storage series with the height from 2m to 12m and bearing the weight from 50kg to 3, 000kg for every shelf. The quality of the products all can reach the international advanced level. Since its founding in 1998, the products are very popular in the shopping centers, supermarkets, factory warehouses and distribution fields.
In 2003, our products began to enter the international markets, and some are exported to the Middle-East, America, France, and Germany. With fine quality performance and excellent services, they have won the universal praise from the customers and established sound reputation among the rack industries in China.
At present, the company strictly observes ISO9001 International Quality Management System. We will continue to explore and make innovations, and accompany you to get succeed with our best products, services and prices.
