Wall Hanging 3G WiFi Network Touch Flexible LCD Screen Display
| Price: | US $ 200-1299unit |
|---|---|
| Min Order: | 1unit |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

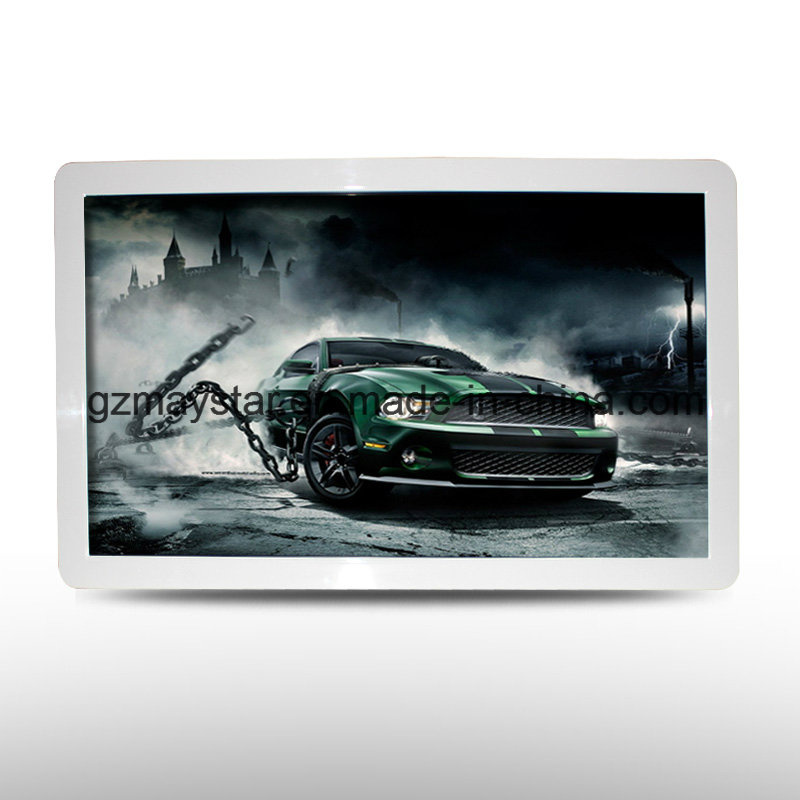

Wall hanging 3g wifi network touch flexible lcd screen display
| Parameter Chart | ||
| Function Version | Touch Screen Version | |
| Main Specification | Input Power | 100V~250V/50HZ/60HZ |
| Power Comsuption | 18W (15" and smaller size),30W and less (19"~32" ), | |
| 90W and less (32"~84") | ||
| Certificate | CE /ROHS/ CB /FCC /UL / ETL /SASO /SONCA /SAA | |
| /EMC | ||
| Mainboard Specification | CPU | Intel CPU: Celeron/Pentium/Core i3, i5, i7 |
| Operating System | WINDOWS 7 / WINDOWS 8.1 / WINDOWS 10 | |
| In/Out Interface | 4xUSB3.0,1xSATA,1xVGA,1xHDMI,1xAudio Output, | |
| 1xMicrophone Input | ||
| Storage Mediums | U-Disk(pen drive)/Hard Disk | |
| Programs Updating | Internet Updating/U-disk updating | |
| Speaker Power | 2×10W (8Ω) | |
| Color system | PAL/NTSC/SECAM | |
| Video Format | MP4(AVI:DIVX/XVID),MPG2(DVD: VOB/MPG2),MPEG1 | |
| (VCD:DAT/MPG1),WMV,MP3,MPG,TRP,TP,M2TS,TS, | ||
| RM,RMVB,MKV,DIVX,ASF,FLV,...etc. support all of | ||
| the format of video | ||
| Audio Format | MP3..etc. all of the format of audio | |
| Image Format | JPG,JPEG,BMP,PNG,GIF...etc, support all of the | |
| format of image | ||
| Remote controller | IR Remote Controller | |
| OSD Display Language | English/Russian/France/Spanish/Italian/Portuguese | |
| /Japanese/Korean/Hebrew...any all other language | ||
| Operating System Language | English/Russian/France/Spanish/Italian/Portuguese | |
| /Japanese/Korean/Hebrew...any all other language | ||
| Display Specification | Display Size | 15",17",19",22",26",32",40",42",46",47",50",55",65" |
| ,72",82",84" | ||
| Display Brand | LG / SAMSUNG /SHARP/ TOSHIBA/AUO/CHIMEI (all | |
| of display are brand new A+ grade) | ||
| Max Resolution | 1920×1080 (32"~84") , 1440×900(19"~32" ), | |
| 1366×768(17"~32"), 1024×768 (15" and smaller | ||
| size) | ||
| Display color | 16.7 Millinium | |
| Pixel Pitch(mm) | 0.2835(H)×0.2835(V) ~0.4833(H)×0.4833(V) | |
| Brightness (nits) | 300cd/m2~500cd/m2 | |
| Contrast | 450:1~1500:1 | |
| Visual angle | Full View | |
| Response time | 3~5ms | |
| Life(hrs) | >70,000(hrs) | |
| Touch Screen Specification | Touch Point | For Size less than 26 inch, we offer real 2 points |
| touch ; For Size 26 inch and bigger, we offer | ||
| real4~6 points touch | ||
| Touch Type | Latest Version Infrared Ray Touch | |
| Touch Sensibility: | <5mm | |
| Response Time | 5ms | |
| Scanning Rate | 50 scans/s | |
| Available object size for | 4mm | |
| touch | ||
| Transparency of | >97% | |
| Tempered protecting glass | ||
| Durability of Touch | No limited | |
| Surface hardness of | Mohs 7th level ,and bearable with the hit of | |
| Touch screen | 6kg weight of metal ball | |
| Functions | Management Method | Powerful exactly the same as Computer,and |
| you can use your finger to touch and do | ||
| any operation. | ||
| Display function | You can use it to do whatever which can be done | |
| by computer | ||
| Prod Model: | MS-F65CD-WDX1 |
|---|---|
| Product Name: | 3G WiFi Network Touch Flexible LCD Screen Display |
| Certificate: | RoHS Ce |
| Product Warranty: | One Year |
| Working Environment: | -60c~80c |
| Panel Duration: | More Than 70000 Hours |
| Panel Brand: | Samsung/LG/Au |
| 3G/4G: | Option |
| Resolution: | 1920*1080 |
| Brightness: | 300~500 Nits |
| Display Scale: | 16:9 |
| Screen Size: | ≤17" |
| Application: | Graphic Design |
| Aspect Ratio: | 16:9 |
| Feature: | Support TV Function |
| Optimum Resolution: | 1920x1080 |
| Type: | TFT |
| Widescreen: | Widescreen |
| Response Time: | 5ms |
| 3D: | Not 3D |
| Interface Type: | VGA |
Maystar is a leading manufacturer in the industry of digital signage, and offer a range of services and off-the-shelf solutions, including in-house custom design, production, marketing of digital signage. Working closely with our clients, we harness the latest in technological and development processes to produce cutting edge solutions and provide our customers with sustainable competitive advantage.
Currently has commercialised solutions that are being used throughout the world on a daily basis across a wide range of industries. Our passion for innovation leads us into new areas of discovery, ultimately arriving at improved solutions for everyone.
Our products are mainly exported to US, Canada, France, Germany, Italy, United Kingdom, Sweden, Switzerland, Brazil, Argentina, the Middle East, more than 80 countries and regions. Our products are widely used in schools, railway stations, hospitals, subways, shopping malls, offices buildings, buses, hotels and other public areas.
Currently maintain close cooperative relations with Samsung, AUO, LG, CMO, SHARP, BOE and a number of world-class LCD manufacturers.
Maystar is equipped with advanced production equipment imported from Japan AMADA CNC machine tools, cutting machines, bending machines, electrostatic powder paint equipment, and other major equipment.
Current products cover a comprehensive line of digital signage/kiosk/all in one PC/LCD monitor/photo booth/advertising player/advertising player/advertising equipment/touch screen monitor/touch panel/LCD wall/interactive kiosk/interactive board, ranging from 15 inch to 100 inch.
We have a clear quality policy and a strict quality objective, based on which we learn from the management of advanced enterprises and so as to steadily improve the quality of our products. Upholding the philosophy of "Quality is the Dignity of an Enterprise", we have established a quality management system with customer orientation, with adherence to the principle of "Quality Thinking, Customer Viewpoint, Long Term Vision, Indifference Rejection and the Pursuit of Zero Defects".
Our major products have been certified to a number of standards including CE, GS, CB, RoHS, UL, ETL, cUL, cETL and others.
Currently has commercialised solutions that are being used throughout the world on a daily basis across a wide range of industries. Our passion for innovation leads us into new areas of discovery, ultimately arriving at improved solutions for everyone.
Our products are mainly exported to US, Canada, France, Germany, Italy, United Kingdom, Sweden, Switzerland, Brazil, Argentina, the Middle East, more than 80 countries and regions. Our products are widely used in schools, railway stations, hospitals, subways, shopping malls, offices buildings, buses, hotels and other public areas.
Currently maintain close cooperative relations with Samsung, AUO, LG, CMO, SHARP, BOE and a number of world-class LCD manufacturers.
Maystar is equipped with advanced production equipment imported from Japan AMADA CNC machine tools, cutting machines, bending machines, electrostatic powder paint equipment, and other major equipment.
Current products cover a comprehensive line of digital signage/kiosk/all in one PC/LCD monitor/photo booth/advertising player/advertising player/advertising equipment/touch screen monitor/touch panel/LCD wall/interactive kiosk/interactive board, ranging from 15 inch to 100 inch.
We have a clear quality policy and a strict quality objective, based on which we learn from the management of advanced enterprises and so as to steadily improve the quality of our products. Upholding the philosophy of "Quality is the Dignity of an Enterprise", we have established a quality management system with customer orientation, with adherence to the principle of "Quality Thinking, Customer Viewpoint, Long Term Vision, Indifference Rejection and the Pursuit of Zero Defects".
Our major products have been certified to a number of standards including CE, GS, CB, RoHS, UL, ETL, cUL, cETL and others.
