Selective Warehouse Tear Drop Pallet Racking
| Price: | US $ 1/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T |
Aisle pallet racking is also called Location pallet racking which is of cut-in composite structure; The upright made by continuous punching and rolling;

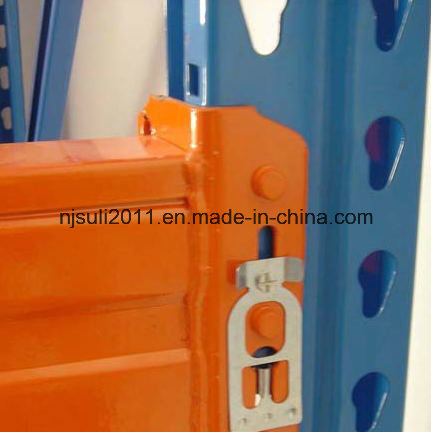

The frame is assembled by uprights and bracings and beams are fixed to uprights by hooks. There are safety locks to fix beams and uprights tightly, protecting beams from dropping when loading goods with forklifts.
The height of each layer can be adjusted by 75mm freely, the capacity of each layer can be up to 4000kg. Its convenient to load and unload pallets with goods on by using forklifts; Such forklifts as front-move forklift balance-weight forkliftcommon forklift and stackers can be used to load and unload goods.

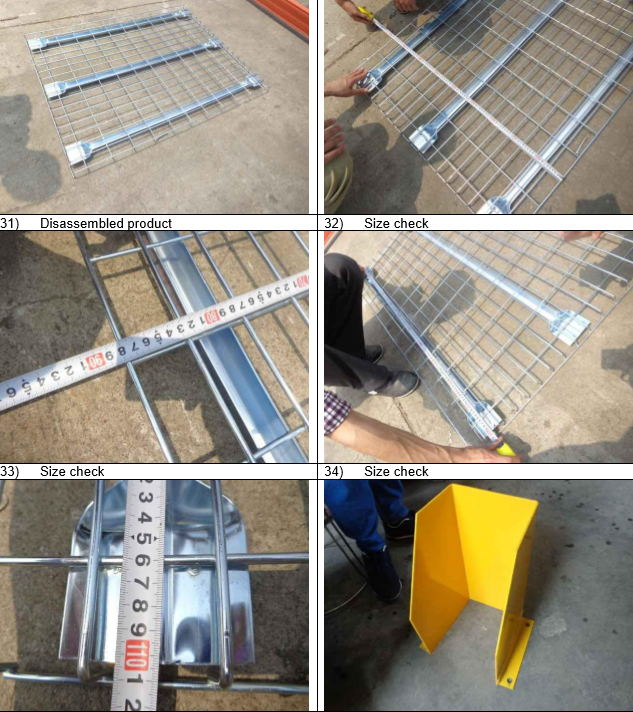

Steel panels, wooden panels and decking are also available for putting on beams instead of pallets. Pallet racking is the most common storage system which is used in fields of manufacturing industrythe third part logisticsdistribution centerssupermarket and so on.
Pallet racking is the first choice when building High position warehouses and AS/RS System.
We are professional manufacturer of all types of Racking system, supply you with quality products at competitive prices. We would like to be your reliable supplier and trusted friends.
Thank you for your attention! If you have any concern or questions, kindly contact us at below Chat Window, we all help you out at the earliest.
Loading capacity: 500-8, 000 kgs UDL/beam level.
Height: 2, 100-9, 900mm
Depth: 700-1, 400mm
Length: 1, 500-4, 000mm
Specail sizes also avaiable to specific storage needs.
Matieral and Finish: High-quality steel Q235
High-quality Powder Coating Finish or Galvanized.
Pallet support bar: Regular type and cut-in adjustable types.
The frame is assembled by uprights and bracings and beams are fixed to uprights by hooks. There are safety locks to fix beams and uprights tightly, protecting beams from dropping when loading goods with forklifts.
The height of each layer can be adjusted by 75mm freely, the capacity of each layer can be up to 4000kg. Its convenient to load and unload pallets with goods on by using forklifts; Such forklifts as front-move forklift balance-weight forkliftcommon forklift and stackers can be used to load and unload goods.
Steel panels, wooden panels and decking are also available for putting on beams instead of pallets. Pallet racking is the most common storage system which is used in fields of manufacturing industrythe third part logisticsdistribution centerssupermarket and so on.
Pallet racking is the first choice when building High position warehouses and AS/RS System.
We are professional manufacturer of all types of Racking system, supply you with quality products at competitive prices. We would like to be your reliable supplier and trusted friends.
Thank you for your attention! If you have any concern or questions, kindly contact us at below Chat Window, we all help you out at the earliest.
Loading capacity: 500-8, 000 kgs UDL/beam level.
Height: 2, 100-9, 900mm
Depth: 700-1, 400mm
Length: 1, 500-4, 000mm
Specail sizes also avaiable to specific storage needs.
Matieral and Finish: High-quality steel Q235
High-quality Powder Coating Finish or Galvanized.
Pallet support bar: Regular type and cut-in adjustable types.
Frame | Height (2-13m) | Depth (600-1,400mm) |
| Upright section: 80x60; 90 x 70; 100 x 65; 120 x87mm | ||
| Thickness: 2.0/2.3/2.5/3.0mm | ||
| Beam | Length (1200-4000mm) , popular size: 2300,2500,2700,3200,3600mm | |
| Beam section: 80 x 50; 100 x 50;110x50; 120 x 50; 140 x 50mm | ||
| Thickness: 1.4--1.5mm | ||
| Load capacity | 1-4Tons/Layer | |
| Others | - Pitch: 75mm - Delivery time: 14-20days - Payment term. T/T or L/C at sight - Necessary accessories: free(bolts & nuts, base plate, etc) - Packing: stretch film & carton - Surface treatment: powder coated, galvanization - Production capacity: 3000T/month - Available in various colors/specifications/sizes | |
| Export Markets: | Global |
|---|---|
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Semi-closed |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 500-3500kgs Per Layer |
