Sanlian Warehouse Storage Drive Through Pallet Racking/ Shelves
| Price: | US $ 0.9-1KGS |
|---|---|
| Min Order: | 1KGS |
| Pay Type: | L/C,T/T,Paypal |
Product Description
Through shelf adopt tray access mode, suitable for few varieties and great quantity goods storaging. Through shelf except the position near the channel, because the forklift need to enter the internal to access goods shelves, usually single pickup don't deep than seven pallet. To improve the forklift running speed, according to the actual need to select configuration guide track, compared with the pallet shelf, through shelf space utilization can increase more than 30%, through shelf is widely used in cold storage warehouses, food and tobacco indust
Drive-in rack features:
Through shelf adopt tray access mode, suitable for few varieties and great quantity goods storaging. Through shelf except the position near the channel, because the forklift need to enter the internal to access goods shelves, usually single pickup don't deep than seven pallet. To improve the forklift running speed, according to the actual need to select configuration guide track, compared with the pallet shelf, through shelf space utilization can increase more than 30%, through shelf is widely used in cold storage warehouses, food and tobacco indust
Drive-in rack features:
1. On the support guide rail, the tray storage according to the depth direction, one by one, make high density storage possible.
2. Access to the goods from the same side of the shelf, goods saved first take after the goods saved later, forklift can easily into the shelf to access the goods, don't need to take up multiple channels.
3. This shelf is suitable for the storage of large quantity and few variety through shelf. Using integral stamping/rolling technology, has good loading capacity, and beautiful shape.
4. Through shelf structure, total depth of the shelf near the wall, should within 5 trays. The middle region depth of the shelf should control within 10 tray depth, in order to improve the efficiency and reliability of forklift.
Through shelf system stability is weak, the shelf should not be too high, generally within 10m, and solid device need to be added. This shelf has high space utilization, suitable for storage of few varieties and large quantities goods, the goods can be take out from the same side, one side in/out or two side in/out can be met.
The Specification and Parameters
| Name | Drive-in Racking |
| Usage | Widely used to remain efficient and maintain warehouse safety. |
| Certification | ISO9001 |
| Customized pallet sizes accepted: | Yes |
| Standard color: | Blue, orange, green, red, grey, or RAL/cusomers' request |
| special color available: | Yes |
| Delivery time : | 7 -15days for 2*40' containers |
| Standard exporting package: | Metal strip, film, paper board and master carton. |

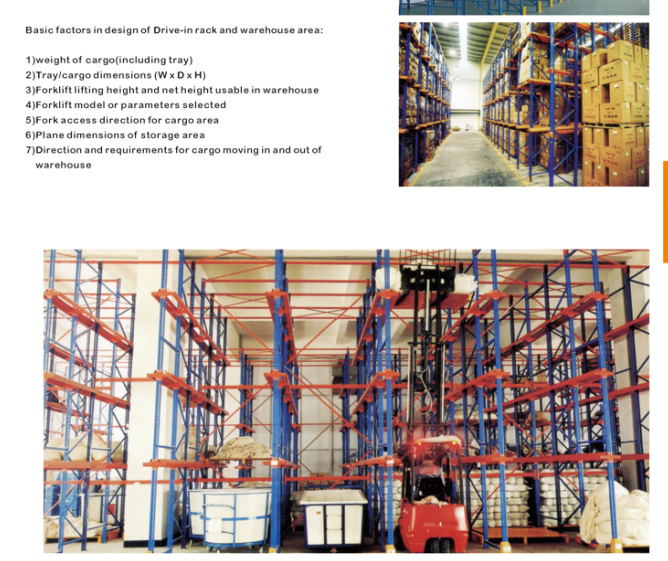

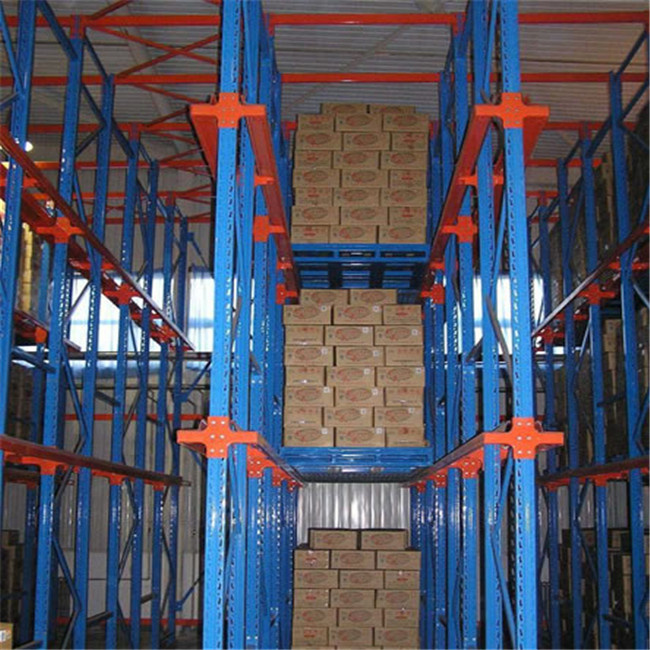

Product Pictures

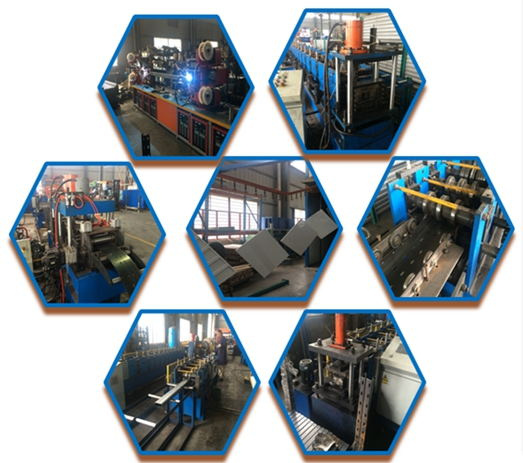

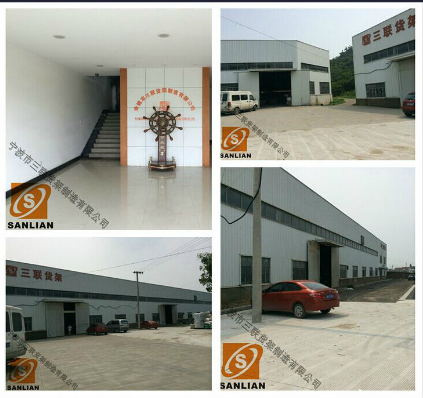

Factory
| Prod Model: | Drive-in shelf |
|---|---|
| Color: | Blue/as Your Requirement |
| Material: | Steel |
| Structure: | Shelf |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | Common Use |
| Height: | According to You Request |
| Weight: | 500-3000kgs |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "Quality first, service first, continuous improvement and innovation to meet the customers"For the management and "Zero defect, zero complaints"As the quality objective.
