Home Rack Products Punched Steel Angle Use for Making Storage Racks and Shelf
Punched Steel Angle Use for Making Storage Racks and Shelf
| Price: | US $ 800/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 20/Ton |
| Pay Type: | L/C,T/T,Western Union |
Qingdao Wanrunda Imp and Exp Co.,ltd mainly export Galvanized steel pipe/tube; Welded steel pipe/tube; Square pipe/tube; Seamless steel pipe; Stainless steel tube; Galvanized steel coil; Stainless steel coil; Angle steel; H beam; Channel beam; C beam/Riffled sheet; Square bar etc

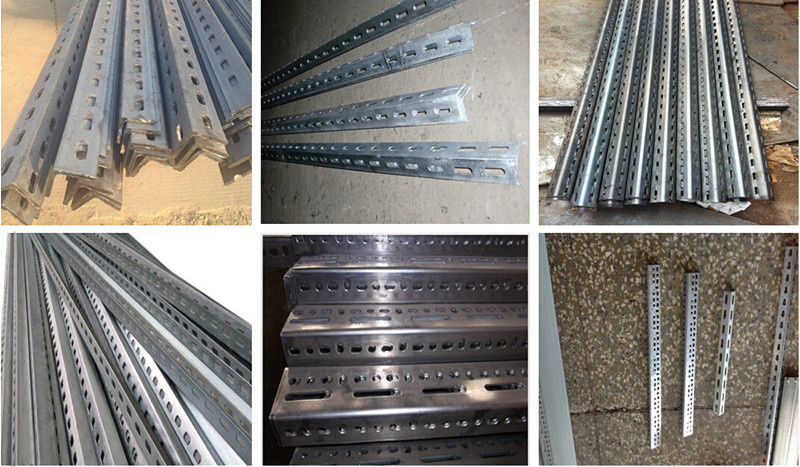

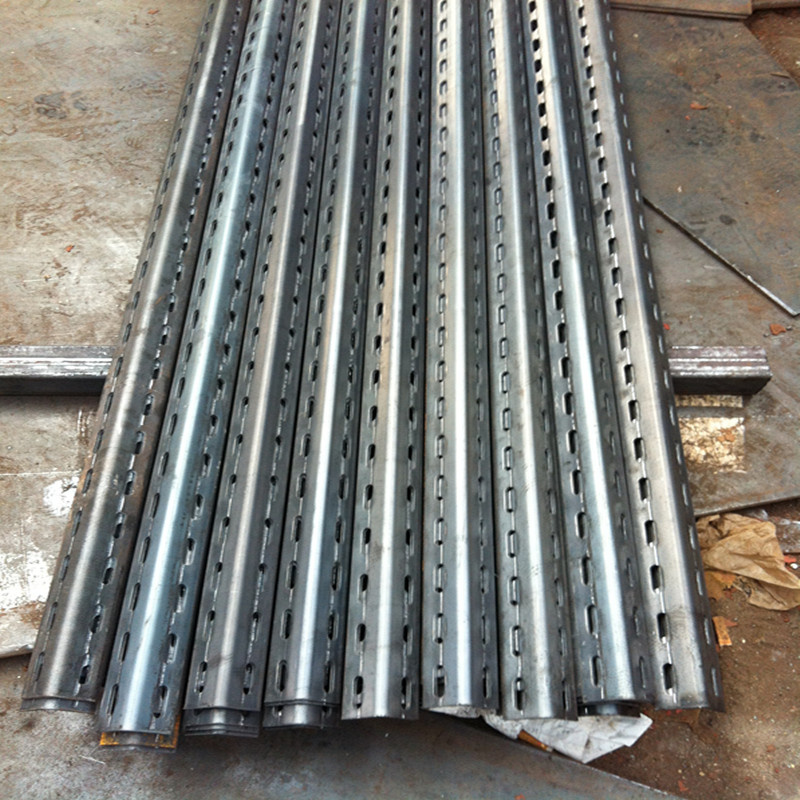

Commodity: Punched steel angle use for making storage rack
Dimension range: 25x25mm - 200x200mm / 25x16mm - 200x125mm
Wall thickness: 3mm - 20mm
Length: 1-12meters (Normal length 6meters ,accept fixed length)
Standard: GB9787-88/GB9788-88, JISG3192-94, DIN17100-80, 535-88
Material: Q195 and Q235 Mild Steel ,Q345 Alloy steel,
ASTM A36, SS400, S235JRH
Chemical composition : C<0.22%,Mn:0.30-0.65%,P<0.060%,S<0.060%
Surface treatment: Black Anneal
Thickness tolerance: +/- 0.05mm
Wing Tolerance: +/- 0.05mm
Technique: Hot rolled
Quality: No delamination, scar, crack etc, must be straight.
Application: Structure steel, Machine steel, Steel products,Fence ,Road sign,
warmhouse booth,etc
MOQ: 10MT
Package: to be packed in bundle, wrapped with steel strips.
Payment term: T/T or L/C at sight
Delivery time: within 15-20days after receiving the deposit
Remark: Special spec is available
Equal Angle Steel dimension:
Unequal Angle Steel dimension:
Commodity: Punched steel angle use for making storage rack
Dimension range: 25x25mm - 200x200mm / 25x16mm - 200x125mm
Wall thickness: 3mm - 20mm
Length: 1-12meters (Normal length 6meters ,accept fixed length)
Standard: GB9787-88/GB9788-88, JISG3192-94, DIN17100-80, 535-88
Material: Q195 and Q235 Mild Steel ,Q345 Alloy steel,
ASTM A36, SS400, S235JRH
Chemical composition : C<0.22%,Mn:0.30-0.65%,P<0.060%,S<0.060%
Surface treatment: Black Anneal
Thickness tolerance: +/- 0.05mm
Wing Tolerance: +/- 0.05mm
Technique: Hot rolled
Quality: No delamination, scar, crack etc, must be straight.
Application: Structure steel, Machine steel, Steel products,Fence ,Road sign,
warmhouse booth,etc
MOQ: 10MT
Package: to be packed in bundle, wrapped with steel strips.
Payment term: T/T or L/C at sight
Delivery time: within 15-20days after receiving the deposit
Remark: Special spec is available
Equal Angle Steel dimension:
| Size Leg Length × Leg Length × thickness (mm) | GB Weight(kg/m) | Available Length | Size Leg Length × Leg Length × thickness (mm) | GB Weight(kg/m) | Available Length |
| 25 ×25×3 | 1.124 | 6-12m | 90 ×90×8 | 10.946 | 6-12m |
| 25 ×25×4 | 1.459 | 6-12m | 90 ×90×9 | 12.219 | 6-12m |
| 30 ×30×3 | 1.373 | 6-12m | 90 ×90×10 | 13.476 | 6-12m |
| 30 ×30×4 | 1.786 | 6-12m | 90 ×90×12 | 15.94 | 6-12m |
| 40 ×40×3 | 1.852 | 6-12m | 100 ×100×6 | 9.366 | 6-12m |
| 40 ×40×4 | 2.422 | 6-12m | 100×100×7 | 10.83 | 6-12m |
| 40 ×40×5 | 2.976 | 6-12m | 100 ×100×8 | 12.276 | 6-12m |
| 45 ×45×3 | 2.088 | 6-12m | 100 ×100×10 | 15.12 | 6-12m |
| 45 ×45×4 | 2.736 | 6-12m | 100 ×100×12 | 17.898 | 6-12m |
| 45 ×45×5 | 3.369 | 6-12m | 100 ×100×14 | 20.611 | 6-12m |
| 45 ×45×6 | 3.985 | 6-12m | 100 ×100×16 | 23.257 | 6-12m |
| 50 ×50×3 | 2.332 | 6-12m | 110 ×110×7 | 11.928 | 6-12m |
| 50 ×50×4 | 3.059 | 6-12m | 110 ×110×8 | 13.532 | 6-12m |
| 50 ×50×5 | 3.77 | 6-12m | 110 ×110×10 | 16.69 | 6-12m |
| 50 ×50×6 | 4.465 | 6-12m | 110 ×110×12 | 19.782 | 6-12m |
| 56 ×56×3 | 2.624 | 6-12m | 110 ×110×14 | 22.809 | 6-12m |
| 56 ×56×4 | 3.446 | 6-12m | 120 ×120×10 | 18.2 | 6-12m |
| 56 ×56×5 | 4.251 | 6-12m | 120 ×120×12 | 21.6 | 6-12m |
| 60 ×60×5 | 4.57 | 6-12m | 125 ×125×8 | 15.504 | 6-12m |
| 60 ×60×6 | 5.42 | 6-12m | 125 ×125×10 | 19.133 | 6-12m |
| 63 ×63×4 | 3.907 | 6-12m | 125 ×125×12 | 22.696 | 6-12m |
| 63 ×63×5 | 4.822 | 6-12m | 125 ×125×14 | 26.193 | 6-12m |
| 63 ×63×6 | 5.721 | 6-12m | 140 ×140×10 | 21.488 | 6-12m |
| 63 ×63×8 | 7.469 | 6-12m | 140 ×140×12 | 25.522 | 6-12m |
| 70 ×70×5 | 5.397 | 6-12m | 140 ×140×14 | 29.49 | 6-12m |
| 70 ×70×6 | 6.406 | 6-12m | 140 ×140×16 | 33.393 | 6-12m |
| 70 ×70×7 | 7.398 | 6-12m | 160 ×160×10 | 24.729 | 6-12m |
| 70 ×70×8 | 8.373 | 6-12m | 160 ×160×12 | 29.391 | 6-12m |
| 75 ×75×5 | 5.818 | 6-12m | 160 ×160×14 | 33.987 | 6-12m |
| 75 ×75×6 | 6.905 | 6-12m | 160 ×160×16 | 38.518 | 6-12m |
| 75 ×75×7 | 7.976 | 6-12m | 180 ×180×12 | 33.159 | 6-12m |
| 75 ×75×8 | 9.03 | 6-12m | 180 ×180×14 | 38.383 | 6-12m |
| 75 ×75×10 | 11.089 | 6-12m | 180 ×180×16 | 43.542 | 6-12m |
| 80 ×80×5 | 6.211 | 6-12m | 180 ×180×18 | 48.634 | 6-12m |
| 80 ×80×6 | 7.376 | 6-12m | 200 ×200×14 | 42.894 | 6-12m |
| 80 ×80×7 | 8.525 | 6-12m | 200 ×200×16 | 48.68 | 6-12m |
| 80 ×80×8 | 9.658 | 6-12m | 200 ×200×18 | 54.401 | 6-12m |
| 80 ×80×10 | 11.874 | 6-12m | 200 ×200×20 | 60.056 | 6-12m |
| 90 ×90×6 | 8.35 | 6-12m | 200 ×200×24 | 71.168 | 6-12m |
| 90 ×90×7 | 9.656 | 6-12m |
Unequal Angle Steel dimension:
| SIZE(L*W*T)mm | WEIGHT(kg/m) | SIZE(L*W*T)mm | WEIGHT(kg/m) |
| 25*16*3 | 0.91 | 100*63*6 | 7.55 |
| 25*16*4 | 1.18 | 100*63*7 | 8.72 |
| 32*20*3 | 1.17 | 100*63*8 | 9.88 |
| 32*20*4 | 1.52 | 100*63*10 | 12.1 |
| 40*25*3 | 1.48 | 100*80*6 | 8.35 |
| 40*25*4 | 1.94 | 100*80*7 | 9.66 |
| 45*28*4 | 1.69 | 100*80*8 | 10.9 |
| 45*28*5 | 2.2 | 100*80*10 | 13.5 |
| 50*32*3 | 1.91 | 110*70*6 | 8.35 |
| 50*32*4 | 2.49 | 110*70*7 | 9.66 |
| 56*36*3 | 2.15 | 110*70*8 | 10.9 |
| 56*36*4 | 2.82 | 110*70*10 | 13.5 |
| 56*36*5 | 3.47 | 125*80*7 | 11.1 |
| 63*40*4 | 3.19 | 125*80*8 | 12.6 |
| 63*40*5 | 3.92 | 125*80*10 | 15.5 |
| 63*40*6 | 4.64 | 125*80*12 | 18.3 |
| 63*40*7 | 10 | 140*90*8 | 14.2 |
| 70*45*4 | 3.57 | 140*90*10 | 17.5 |
| 70*45*5 | 4.4 | 140*90*12 | 20.7 |
| 70*45*6 | 5.22 | 140*90*14 | 23.9 |
| 70*45*7 | 6.01 | 160*100*10 | 19.9 |
| 75*50*5 | 4.81 | 160*100*12 | 23.6 |
| 75*50*6 | 5.7 | 160*100*14 | 27.2 |
| 75*50*8 | 7.43 | 160*100*16 | 30.8 |
| 75*50*10 | 9.1 | 180*110*10 | 22.3 |
| 80*50*5 | 5 | 180*110*12 | 26.5 |
| 80*50*6 | 5.93 | 180*110*14 | 30.6 |
| 80*50*7 | 6.85 | 180*110*16 | 34.6 |
| 80*50*8 | 7.75 | 200*125*12 | 29.8 |
| 90*56*5 | 5.66 | 200*125*14 | 34.4 |
| 90*56*6 | 6.72 | 200*125*16 | 39 |
| 90*56*7 | 7.76 | 200*125*18 | 43.6 |
| 90*56*8 | 8.78 |
| Prod Model: | 40x40mm x 4mm, with 38mm holes |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wing: | 25X25mm - 200X200mm / 25X16mm - 200X125mm |
| Thickness: | 3-20mm |
| Thickness Tolerance: | +/- 0.05mm |
| Length: | 4-12meters(Normal Length 6meters) |
| Standard: | BS |
| Type: | Equal and Unequal |
QINGDAO WANRUNDA IMP AND EXP Co., Ltd locates at Qingdao city– The third big sea port in China. We belong Huaye steel group, a big steel group. The Group mainly manufacture and sale steel products and assorted steel products. Our group include three parts, one steel coil and steel pipe factory locates in Jinghai, Tianjin; One stainless coil and pipe factory in Shandong; And sale center in Qingdao.
We mainly manufacture and sale various kinds of steel pipe, include Welded pipe/Galvanized steel pipe/Pre-Galvanized steel pipe/Square and Rectangular hollow section/Furniture pipe/Warmhouse booth pipe/stainless steel pipe etc; Steel coil include Pre-Galvanized steel coil and stainless steel coil; Steel profile include Angle steel/Channel steel/Steel checkered plate/Square steel/C-channel steel etc. We also deal with assorted products, such as Flange/Steel hinge/Plastic pipe plug and cap etc.
Steel pipe rough dimension: Out diameter- 10X10mm to 600X600mm / 10X20mm to 400X600mm / OD10mm to 1020mm, Thickness: 0.3mm to 20mm
We are special and experienced steel supplier and exporter, can manufacture according to ASTM, JIS, DIN, API standard. We have exported to Australia, Doha, Sri Lanka, India, Turkey, Kyrgyzstan, Russia, Canada, Poland, Middle East countries and African countries, We got very good reputation from all our cooperative clients;
We persevere both quality and service first, and will try our best to provide perfect service for old and new clients, we hope to build long-term cooperation with our clients and develop corporately.
