Plastic Sheet Extrusion Production Line (HY-670)
| Price: | US $ 30000-70000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
Extrusion production line
Part A: Detail Descriptions and Specification
I .General:
This extruder is designed to produce plastic sheet for thermoforming/vacuum forming purpose or stationery use, which is composed of 7 parts - extruder part, filter part, Die-head part, 3 rollers part, traction part, winding part and side trimming part.
II. Major Specification
Applicable Material:
The extruder is used for produce various plastic sheet of PS (polystyrene) or PP/HIPS (polypropylene), which can be widely used for produce plastic cup, plastic bowl, plastic tray and blister, stationery packing manufacture forming.
1. EXTRUDER PART: 01 set
(1)Hopper: 1 set
(2)Output: 3-5 T/day
(3)Screw dia.: 110
(4)L/D: 33:1
(5)Screw & barrel material: 38 CrMoAlA after nitrogen treatment with optimum hardness, strong corrosion resistance and long service lifetime
(6)Screw rotate speed: 980r.p/min
(7)Speed adjustment: Frequency inverter
(8)Drive motor power: 45kw
(9)Output :160-200kg/hr
(10)Heating way: aluminium-casted heater
2. FILTER PART: 01 set
(1)Its special internal structure provides a excellent seal effect
(2)The parts of Screen Changer consisting the mold are made of alloy steel, which experienced heat treatment strictly.
(3)Control style: complete hydraulic pressure
(4)Pressure adjuster: one
(5)Motor Power: 2.2KW
3. DIE HEAD PART: 01 set
(1)Sheet structure: 1 layer
(2)T-die design: like cloth-hanger, enable the melting material be flowed evenly from the outlet.
(3)Die head Width: 800mm
(4)Finished sheet width: 400-700 mm
(5)Sheet thickness: 0.3-2.0mm
(6)Heating way: Aluminum-casted heater
4. 3 CALENDER ROLLERS PART: 01 set
(1)Roller dia.: 350mm
(2)Roller length:780mm
(3)Roller no.: 3 pcs
(4)Rollers reach to "mirror surface" standard
(5)3 rollers layout: inclined or vertical
(6)Roller linear speed: 0-13m/min
(7)Driving motor: 4.0kw
(8)Wall thickness of the roll: ≥25mm
(9)Roll surface treatment: 14 grade super treatment of mirror polishing.
(10)Cooling Media: water
(11)The three rollers are controlled by one motor (6-gear, 3.7kw, FC) with reducer.
(12)The rotary speed of the rollers will be adjusted synchronously.
(13)Self-lock style forward and backward movement system of the calender, which is controlled by 3-phase induction Motor.
5. TRACTION PART: 01 set
(1)Traction roller dia.: 180mm
(2)Max traction roller length:740mm
(3)Traction motor power: 2.2kw
(4)Speed adjustment: frequency inverter
(5)Cooling roller dia.: 65mm
(6)Cooling roller length: 740mm
6.WINDING PART: 01 set
(1)Winding rubber roller: 1 pc
(2)Flat roller: 1 pc
(3)winding motor power: 3kw
(4)working position: double station
(5)mode of winding: automatic winding
(6)finished roll max.dia.: 700mm
7. SIDE TRIMMING PART: 01 set
Trimming knife: 2 pcs
Bracket traction length: 2.8m
The edges of both side will be winded in roller by motor
8. OTHER
Machine size: 12x1.6x2.0m
Machine weight: 5.5T
Power supply: 380v/3phase//50hz
III.the pictures of extruder

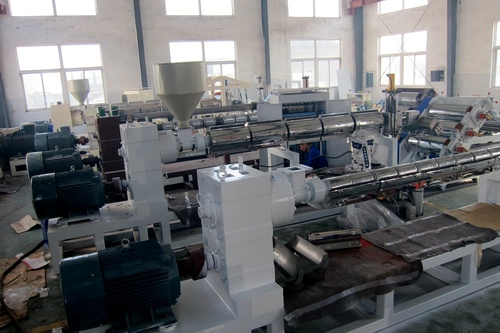

1.The extruder machine show

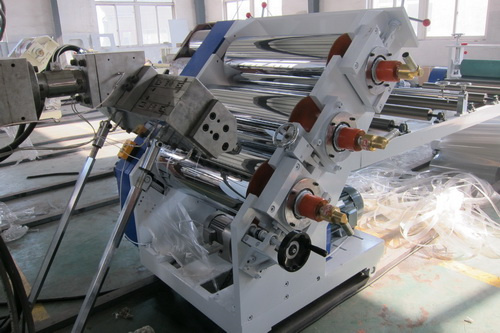

2.Details picture of the extruder
IV. About Ruian Hongyin Machinery Co., Ltd Service.
1.Installation Service:
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.
2. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
If you are interest in our machine, please feel free and contact me.
Contacter: Michael Rao
Website:www.china-hongyin.com
Part A: Detail Descriptions and Specification
I .General:
This extruder is designed to produce plastic sheet for thermoforming/vacuum forming purpose or stationery use, which is composed of 7 parts - extruder part, filter part, Die-head part, 3 rollers part, traction part, winding part and side trimming part.
| Item | Description | Q'ty |
| 1 | Plastic sheet extrusion line | 1 set |
| - extruder | 01 | |
| - filter | 01 | |
| - T-die(die head) | 01 | |
| - 3 rollers | 01 | |
| - traction system | 01 | |
| - winding system | 01 | |
| - side trimming system | 01 | |
| - electric control cabinet | 01 |
II. Major Specification
Applicable Material:
The extruder is used for produce various plastic sheet of PS (polystyrene) or PP/HIPS (polypropylene), which can be widely used for produce plastic cup, plastic bowl, plastic tray and blister, stationery packing manufacture forming.
1. EXTRUDER PART: 01 set
(1)Hopper: 1 set
(2)Output: 3-5 T/day
(3)Screw dia.: 110
(4)L/D: 33:1
(5)Screw & barrel material: 38 CrMoAlA after nitrogen treatment with optimum hardness, strong corrosion resistance and long service lifetime
(6)Screw rotate speed: 980r.p/min
(7)Speed adjustment: Frequency inverter
(8)Drive motor power: 45kw
(9)Output :160-200kg/hr
(10)Heating way: aluminium-casted heater
2. FILTER PART: 01 set
(1)Its special internal structure provides a excellent seal effect
(2)The parts of Screen Changer consisting the mold are made of alloy steel, which experienced heat treatment strictly.
(3)Control style: complete hydraulic pressure
(4)Pressure adjuster: one
(5)Motor Power: 2.2KW
3. DIE HEAD PART: 01 set
(1)Sheet structure: 1 layer
(2)T-die design: like cloth-hanger, enable the melting material be flowed evenly from the outlet.
(3)Die head Width: 800mm
(4)Finished sheet width: 400-700 mm
(5)Sheet thickness: 0.3-2.0mm
(6)Heating way: Aluminum-casted heater
4. 3 CALENDER ROLLERS PART: 01 set
(1)Roller dia.: 350mm
(2)Roller length:780mm
(3)Roller no.: 3 pcs
(4)Rollers reach to "mirror surface" standard
(5)3 rollers layout: inclined or vertical
(6)Roller linear speed: 0-13m/min
(7)Driving motor: 4.0kw
(8)Wall thickness of the roll: ≥25mm
(9)Roll surface treatment: 14 grade super treatment of mirror polishing.
(10)Cooling Media: water
(11)The three rollers are controlled by one motor (6-gear, 3.7kw, FC) with reducer.
(12)The rotary speed of the rollers will be adjusted synchronously.
(13)Self-lock style forward and backward movement system of the calender, which is controlled by 3-phase induction Motor.
5. TRACTION PART: 01 set
(1)Traction roller dia.: 180mm
(2)Max traction roller length:740mm
(3)Traction motor power: 2.2kw
(4)Speed adjustment: frequency inverter
(5)Cooling roller dia.: 65mm
(6)Cooling roller length: 740mm
6.WINDING PART: 01 set
(1)Winding rubber roller: 1 pc
(2)Flat roller: 1 pc
(3)winding motor power: 3kw
(4)working position: double station
(5)mode of winding: automatic winding
(6)finished roll max.dia.: 700mm
7. SIDE TRIMMING PART: 01 set
Trimming knife: 2 pcs
Bracket traction length: 2.8m
The edges of both side will be winded in roller by motor
8. OTHER
Machine size: 12x1.6x2.0m
Machine weight: 5.5T
Power supply: 380v/3phase//50hz
III.the pictures of extruder
1.The extruder machine show
2.Details picture of the extruder
IV. About Ruian Hongyin Machinery Co., Ltd Service.
1.Installation Service:
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.
2. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
If you are interest in our machine, please feel free and contact me.
Contacter: Michael Rao
Website:www.china-hongyin.com
| Prod Model: | HY-670 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: | Hy-670 |
| Suitable Material: | PP PS HIPS |
| Sheet Thickness: | 0.2-2.0mm |
| Sheet Precision: | 0.015-0.01mm |
| Effective Width: | 400-700 |
| Capacity: | 160-200kg/Hr |
| Layer: | 1 |
| Rated Output: | 80kw |
| Dimension: | 12X1.6X2.0m |
| Warranty: | 1 Year |
| Type: | Sheet Extruder |
| Product Type: | Granulating Extruder |
| Feeding Mode: | One Feed |
| Assembly Structure: | Integral Type Extruder |
| Screw: | Single-Screw |
| Engagement System: | Full Intermeshing |
| Screw Channel Structure: | Deep Screw |
| Exhaust: | Don't Exhaust |
| Automation: | Automatic |
| Computerized: | Computerized |
| Plastic Processed: | PP/PS/HIPS |
