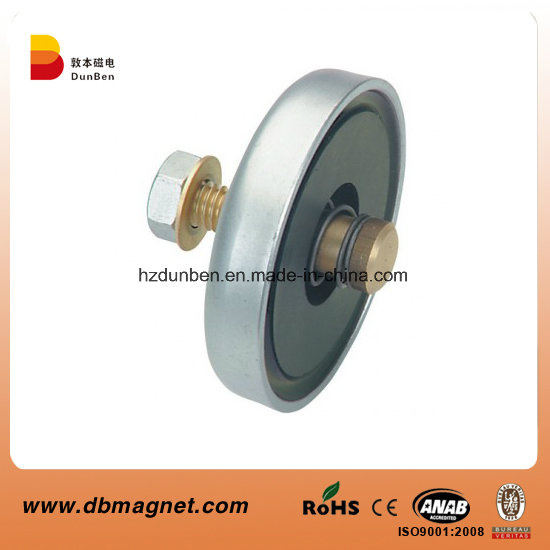

Home Rack Products Permanent Neodymium Magnet Pot Magnetic Holder
Permanent Neodymium Magnet Pot Magnetic Holder
| Price: | US $ 0.31-0.33/Piece |
|---|---|
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
1.My promise and service
a:100% new raw material (we promise all material is new,no second material)
b:100% most competitive price (I will try my best to get your ideal price)
c:100% shipment on time (i will iform u if any delay)
d:100% perfect service after sale (U can contact me any time if there is any questions after u get magnets)
2.Pot Magnet description
Pot Magnets provide the ultimate in clamping force.These Magnets are manufactured in a strong steel casting allowing them to whitstand cotinual impact onto a steel surface without the risk of the magnet chipping or cracking.Pot Magnets consist of a steel shell with a powerful neodymium magnet sunken into one face
3.Pot magnet
4.Pot Magnets advantages
a:Pot Magnets can be supplied with a tapped hole, a countersunk hole,a counter-bored hole,a threaded stud or a threaded collar for covenient mounting
b:The steel cup not only protects the magnet from impacting,butalso conducts the magnetism of the other magnet side to the suction face.Magnetism is confined to one face only,where it is concentrated to give the maximum holding force possible for the size of the magnet
c:Pot magnets can also be supplied with hooks and eyebolt attachments,ideal for hanging a variety of items
5.pot magnet package
a:32X24X26CM standard export package
b:G.W of each carton is no more than 13KG
6.Pot magnet delivery time
a:3-5 days for sample
b:1015 days for large quantity
a:100% new raw material (we promise all material is new,no second material)
b:100% most competitive price (I will try my best to get your ideal price)
c:100% shipment on time (i will iform u if any delay)
d:100% perfect service after sale (U can contact me any time if there is any questions after u get magnets)
2.Pot Magnet description
Pot Magnets provide the ultimate in clamping force.These Magnets are manufactured in a strong steel casting allowing them to whitstand cotinual impact onto a steel surface without the risk of the magnet chipping or cracking.Pot Magnets consist of a steel shell with a powerful neodymium magnet sunken into one face
3.Pot magnet
| Item code | Size(mm) | Power | Weight | |||
| A | B | C | D | (N) | (g) | |
| N46.006 | 6 | 4.5 | M3 | 6 | 6N | 1.5 |
| N46.008 | 8 | 4.5 | M3 | 6 | 15N | 3.0 |
| N46.010 | 10 | 4.5 | M3 | 6 | 30N | 5.0 |
| N46.013 | 13 | 4.5 | M3 | 6 | 60N | 7.5 |
| N46.016 | 16 | 4.5 | M3 | 6 | 100N | 16 |
| Item code | Specification | Power force | Weight | |||
| A | B | C | D | N | G | |
| N43.032 | 32 | 7 | 5.5 | M5 | 330 | 40 |
| N43.040 | 40 | 8 | 10.5 | M5 | 500 | 73 |
| N43.063 | 63 | 14 | 11.7 | M10 | 1100 | 316 |
| N43.075 | 75 | 15 | 13 | M10 | 1750 | 480 |
4.Pot Magnets advantages
a:Pot Magnets can be supplied with a tapped hole, a countersunk hole,a counter-bored hole,a threaded stud or a threaded collar for covenient mounting
b:The steel cup not only protects the magnet from impacting,butalso conducts the magnetism of the other magnet side to the suction face.Magnetism is confined to one face only,where it is concentrated to give the maximum holding force possible for the size of the magnet
c:Pot magnets can also be supplied with hooks and eyebolt attachments,ideal for hanging a variety of items
5.pot magnet package
a:32X24X26CM standard export package
b:G.W of each carton is no more than 13KG
6.Pot magnet delivery time
a:3-5 days for sample
b:1015 days for large quantity
| Prod Model: | N35 |
|---|---|
| Size: | D6X4.5mm |
| MOQ: | 100PCS |
| Power Force: | 0.6kgs |
| Certification: | Ce |
| Material: | Metal |
| Type: | Hook |
| Brand: | Hzdunben |
Provide the highest quality magnets and excellent logistic service is always our first target.
We, Hangzhou Xiaoshan Dunben Magnet Company, exprienced 12 years in magnet field together with our factory-Kede
Our service specializes in the research, manufacturer and sell of permanent magnetic materials as well as magnetic accessory. Our mainly products including Sintered NdFeB Magnet, AlNiCo Magnet, SmCo Magnet, Bonded injection NdFeB Magnet, Magnetic lifter
Depend on high technical, strict quality system, competitive price, our business have been exported to over 10 countries, such as USA, Korea, Germany and so on
Qucik facts about Dunben Factory
Established in 2004
Have more than 200 employees
Annual productivity is more than 900 tons
All Magnets got RoHS ane CE certification
All magnets quality will be ensure with 30 days
Our service
1. Quick response (we will reply within 2 hours at work time)
2. Provide free sample (All available samples are free)
3. All customized design are ok (We will finish all available customized magnets)
4. High quality and competitive price (Try our best to ensure high quality and favorable price
5.100% quality ensure ( All magnets will be to do quality test before shipment)
6.100% on time shipment ( Usually, All magnets will be ship on time)
7. Many different shipment for u choose ( express, Air or sea shipment)
Our promise
1. Every Magnet will be inspected before shipment
2. All Magnet will get QC report
3. Sales DEP will inform clients about shipment within 24 hours after dispatching
4. We will keep doing after sales until get satisfaction from clinet
We are sincerely willing to establish long business relationships with all customers, so welcome all friend come to visit our factory
We, Hangzhou Xiaoshan Dunben Magnet Company, exprienced 12 years in magnet field together with our factory-Kede
Our service specializes in the research, manufacturer and sell of permanent magnetic materials as well as magnetic accessory. Our mainly products including Sintered NdFeB Magnet, AlNiCo Magnet, SmCo Magnet, Bonded injection NdFeB Magnet, Magnetic lifter
Depend on high technical, strict quality system, competitive price, our business have been exported to over 10 countries, such as USA, Korea, Germany and so on
Qucik facts about Dunben Factory
Established in 2004
Have more than 200 employees
Annual productivity is more than 900 tons
All Magnets got RoHS ane CE certification
All magnets quality will be ensure with 30 days
Our service
1. Quick response (we will reply within 2 hours at work time)
2. Provide free sample (All available samples are free)
3. All customized design are ok (We will finish all available customized magnets)
4. High quality and competitive price (Try our best to ensure high quality and favorable price
5.100% quality ensure ( All magnets will be to do quality test before shipment)
6.100% on time shipment ( Usually, All magnets will be ship on time)
7. Many different shipment for u choose ( express, Air or sea shipment)
Our promise
1. Every Magnet will be inspected before shipment
2. All Magnet will get QC report
3. Sales DEP will inform clients about shipment within 24 hours after dispatching
4. We will keep doing after sales until get satisfaction from clinet
We are sincerely willing to establish long business relationships with all customers, so welcome all friend come to visit our factory
