Natural Face Stone Splitting Machine for Retaining Wall
| Price: | US $ 23000-53000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,D/P,Western Union |
Products Features:
Hydraulic operated stone splitting machines with CE certificate, can be use for every kind of stone. The machinery is primarily designed for the manufacture of tiles, curbstones, and split-faced walling, but can also be adapted to other areas of the stone industry. The crushing power and long blade, Broadway and Winstar models are adequate for large wall stone and curbing production.
The production line of stone machinery be supplied in many sizes and can be adapted to many uses in the stone industry. Paving stone and tile cutters will want to see the Igloo Model. Ease of operation and fast splitting are sure to increase production compared to underpowered splitters.
Products advantages:
Complete full series with different models for choice
International brand-name core components
German Bosch Rexroth hydraulic components
Omron and Schneider electric equipments
Siemens Electric Mortar
Blade adaptation system with floating teech
Design according to client's request available
Combination of production line with suitable conveyor available
CE certificate
About Us:
XIAMEN BESTLINK FACTORY CO., LTD. Provides industry-leading stone splitters and stone processing solutions to assist customers in their pursuit of a true competitive advantage.
The range of machines comprises:
- Stone breakers
- Block breakers
- Conveyors
All of our stone splitting machines are manufactured to be field serviceable with
'off-the-shelf' tools and parts whenever possible. When not, we provide detailed
Service instructions and specific tooling and parts as required.
Our tight design tolerance, engineering excellence & manufacturing iscipline, coupled with simple routine maintenance will provide you with many years of reliable service between
Major maintenance activities.

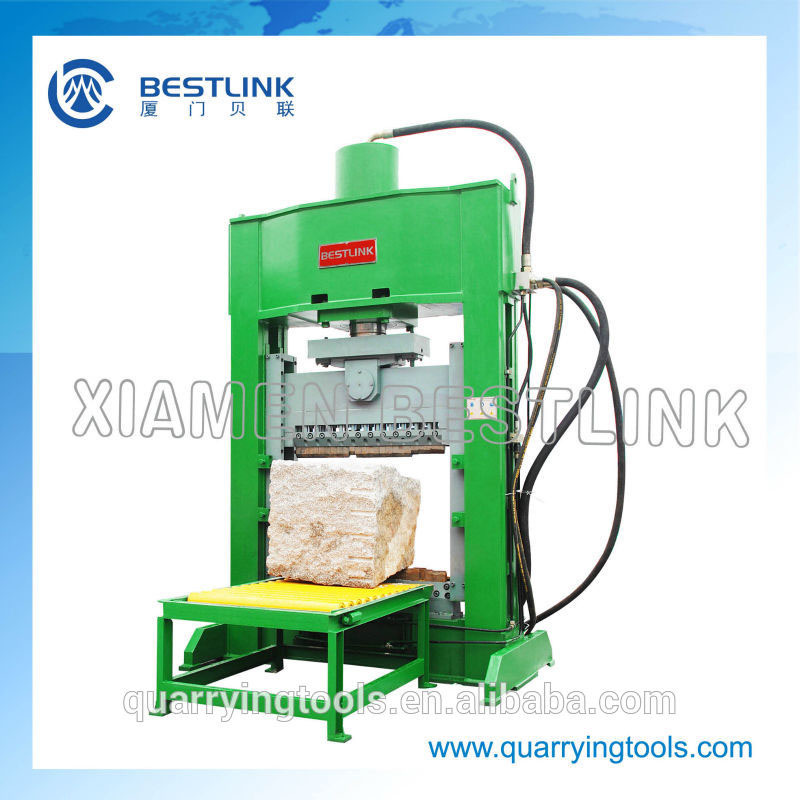

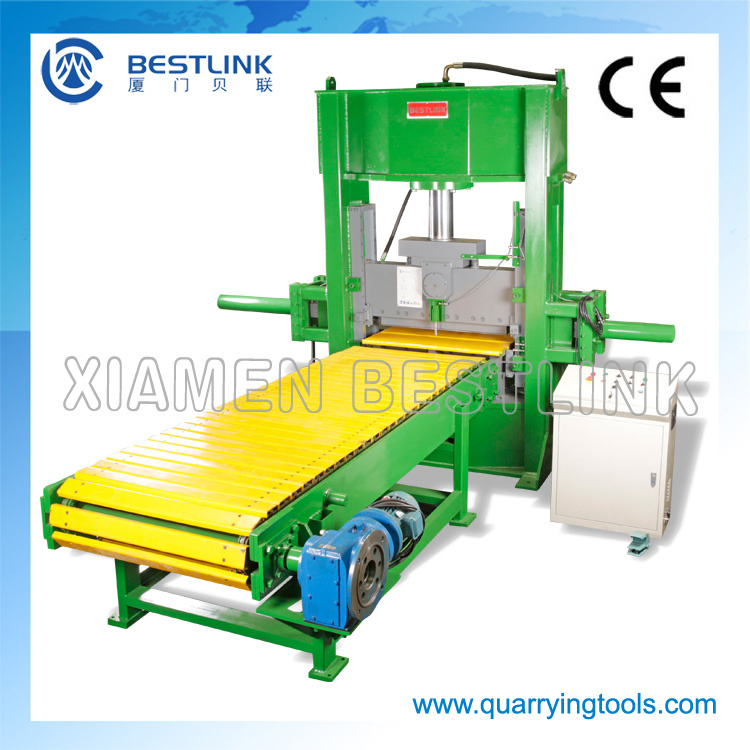

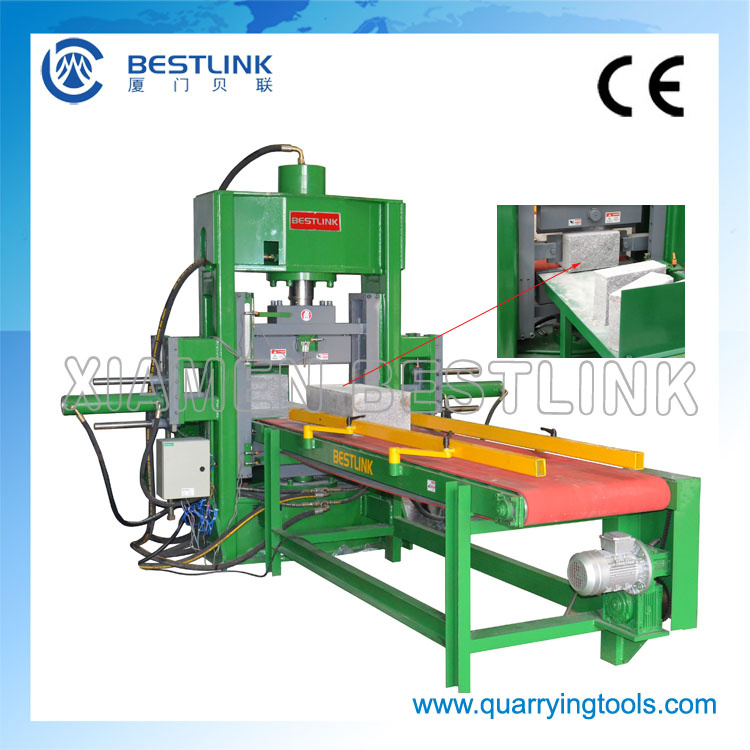

Product photos
Hydraulic operated stone splitting machines with CE certificate, can be use for every kind of stone. The machinery is primarily designed for the manufacture of tiles, curbstones, and split-faced walling, but can also be adapted to other areas of the stone industry. The crushing power and long blade, Broadway and Winstar models are adequate for large wall stone and curbing production.
The production line of stone machinery be supplied in many sizes and can be adapted to many uses in the stone industry. Paving stone and tile cutters will want to see the Igloo Model. Ease of operation and fast splitting are sure to increase production compared to underpowered splitters.
Products advantages:
Complete full series with different models for choice
International brand-name core components
German Bosch Rexroth hydraulic components
Omron and Schneider electric equipments
Siemens Electric Mortar
Blade adaptation system with floating teech
Design according to client's request available
Combination of production line with suitable conveyor available
CE certificate
About Us:
XIAMEN BESTLINK FACTORY CO., LTD. Provides industry-leading stone splitters and stone processing solutions to assist customers in their pursuit of a true competitive advantage.
The range of machines comprises:
- Stone breakers
- Block breakers
- Conveyors
All of our stone splitting machines are manufactured to be field serviceable with
'off-the-shelf' tools and parts whenever possible. When not, we provide detailed
Service instructions and specific tooling and parts as required.
Our tight design tolerance, engineering excellence & manufacturing iscipline, coupled with simple routine maintenance will provide you with many years of reliable service between
Major maintenance activities.
| Specifications | Bridge Type / Closed Type | ||||||
| Model No. | BRT320T-1200*800-M | BRT200T-1200*400-M | BRT160T-1000*400-M | BRT120T-1000*300-M | BRT70T-800*300-M | BRT40T-600*200-M | |
| Max splitting force | Ton | 320 | 200 | 160 | 120 | 70 | 40 |
| Max splitting width | mm | 1200 | 1200 | 1000 | 1000 | 800 | 600 |
| Max splitting height | mm | 800 | 400 | 400 | 300 | 300 | 200 |
| Single blade size | mm | 194*50*40 | 194*50*40 | 194*50*40 | 194*50*40 | 160*40*25 | 160*40*25 |
| Blade QTY. | pcs | 48 | 48 | 40 | 40 | 40 | 32 |
| Adaptation of upper/lower blade | mm | 36*20 | 30*15 | 30*15 | 20*10 | 20*10 | 20*10 |
| Power supply | KW | 22 | 15 | 15 | 15 | 11 | 7.5 |
| Main oil cylinder data | mm | Φ400/Φ280-800 | Φ320/Φ200-400 | Φ280/Φ200-400 | Φ280/Φ200-300 | Φ220/Φ140-300 | Φ180/Φ120-200 |
| Bench height | mm | 900 | 900 | 900 | 900 | 900 | 900 |
| Machine overall size(L*W*H) | mm | 2370*1500*3840 | 2010*1240*2855 | 1810*1240*2855 | 1780*1140*2575 | 1570*1140*2490 | 1390*1140*2300 |
| Machine weight | kg | 10000 | 8500 | 4800 | 4000 | 3000 | 2200 |
| Hydraulic unit size | mm | 1280*1000*1475 | 1280*1000*1475 | 1280*1000*1345 | 1280*1000*1345 | 960*650*1220 | 800*650*1100 |
| Hydraulic unit weight | kg | 600 | 600 | 550 | 550 | 400 | 310 |

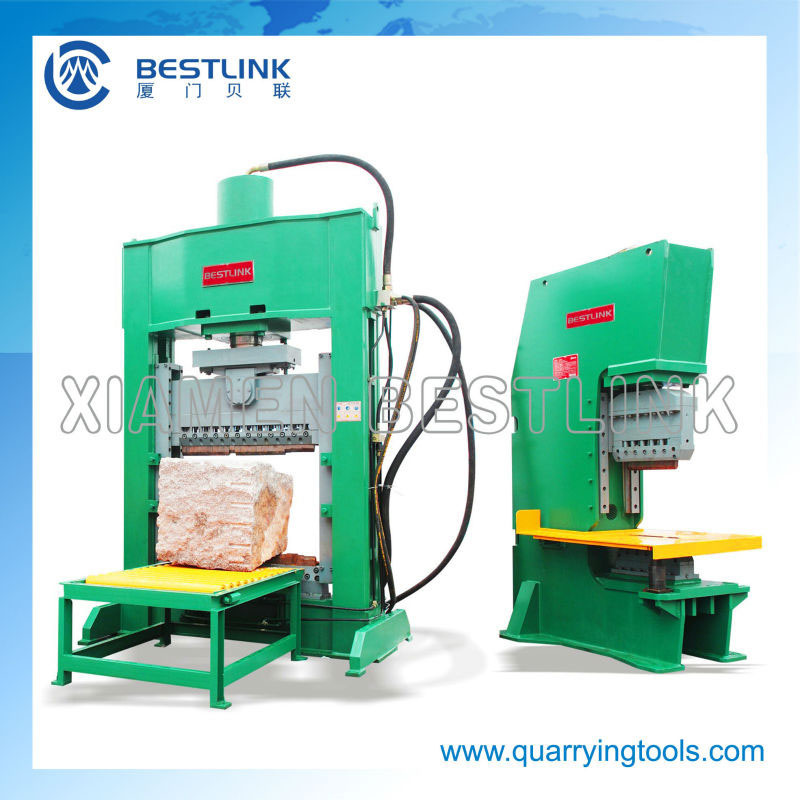

Product photos
| Prod Model: | BRT20, BRT40, BRT70, BRT160, BRT200 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Splitting Height: | 800mm |
| Max Splitting Width: | 1200mm |
| Color: | Green and Blue, Other Color Available |
| Key Word: | Castlestone,Fieldstone,Ledgestone Split |
| Main Market: | Europe, North and South America, Africa |
| Certificate: | CE&ISO2000&SGS |
| Trade Way: | Own Factory Made |
| Tons Type: | From 20ton to 320tons. |
| Driven Force: | Hydraulic Pump |
| Export Experience: | 10 Yearts |
| Type: | Hydraulic Cutting Machine |
| Usage: | Marble |
| Application: | Stone Industry |
| Source Voltage: | 380V |
| Automation: | Semi-automatic |
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world No.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world No.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
