M1 M1.5 M2 M2.5 M3 M4 M5 M6 M8 CNC Steel Gear Rack and Pinion
| Price: | US $ 1-80/Set |
|---|---|
| Min Order: | 5/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | M1 M1.5 M2 M2.5 M3 M4 M5 M6 M8 |
|---|---|
| Surface Treatment: | Hardended Treatment,Black Treatment,Zinc Plated |
| Country Of Original: | China |
| Usage: | CNC Machine |
| Material Used: | C45,Plastic or as Your Require |
| Loading Port: | Shanghai & Qingdao |
| Sample Order: | Support |
| Shipping: | by Express,by Air or by Sea |
| Payment: | Tt& LC,Negotiable |
| Packing: | Wooden Case out Packing |
Product Description

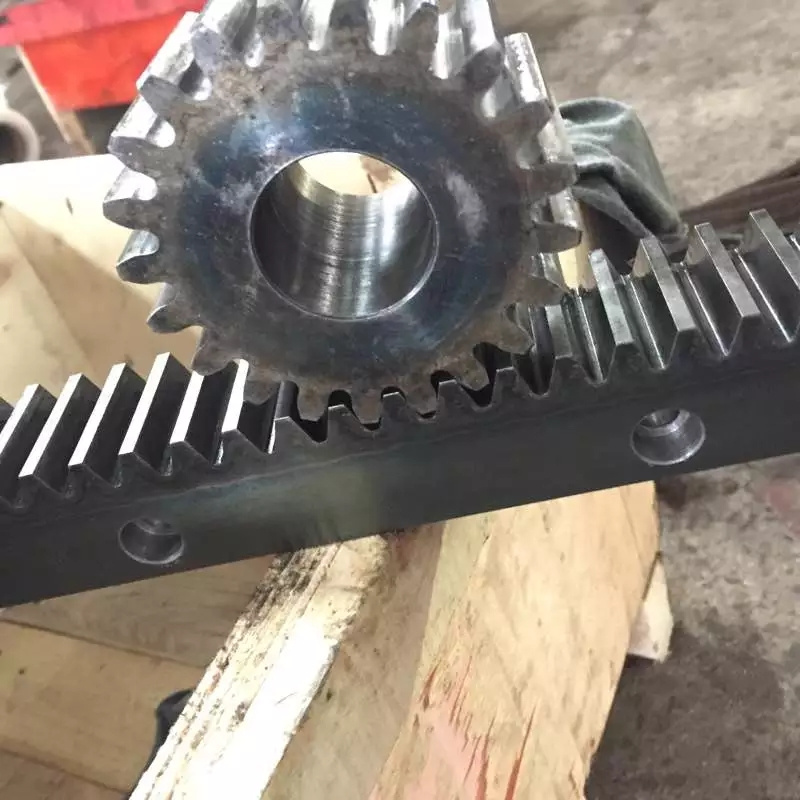

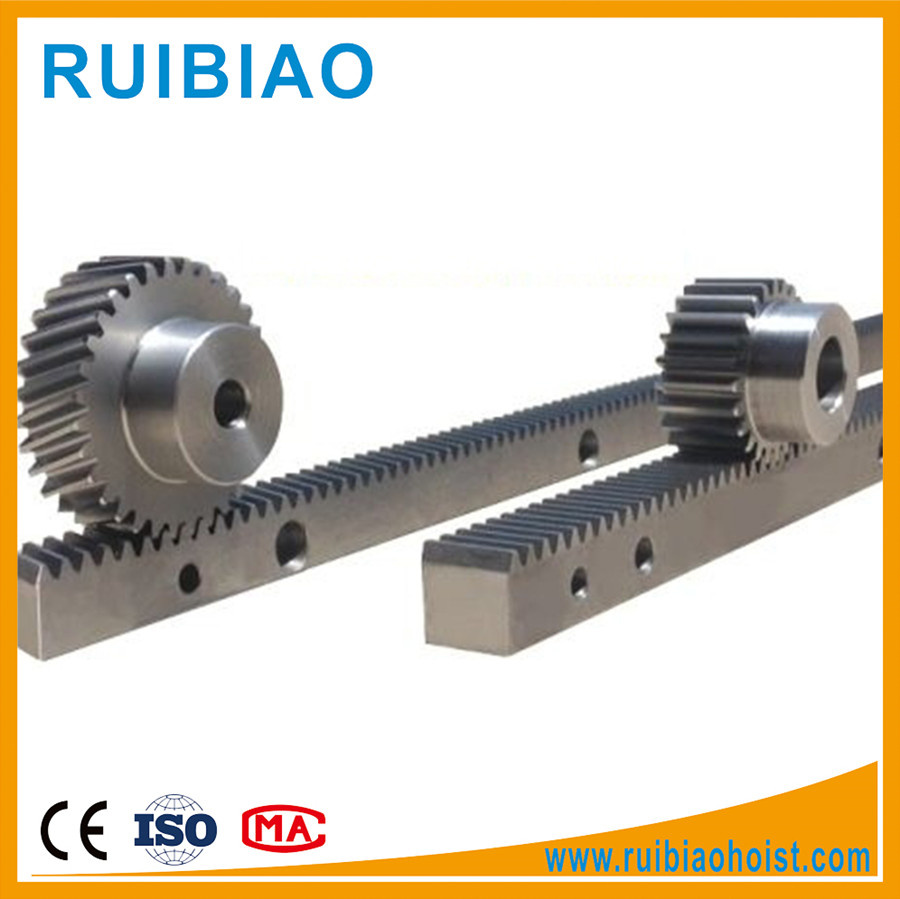

Small Rack and Pinion Gears, Helical Rack and Pinion, CNC Steel RackA rack and pinion is a type of linear actuator that comprises a pair of gears which convert rotational motion into linear motion. A circular gear called "the pinion" engages teeth on a linear "gear" bar called "the rack"; rotational motion applied to the pinion causes the rack to move relative to the pinion, thereby translating the rotational motion of the pinion into linear motion.
1.Here is the standard size in our company below,we also can produce as your drawing:
| M1 | 10x10x1000 10x15x1000 | M1 | 15x15x250 15x15x500 | M3 | 30x30x250 30x30x500 | M5 | 50x50x250 50x50x500 |
| M1.5 | 15x15x1000 15x20x1000 | 15x15x1000 15x15x2000 | 30x30x1000 30x30x2000 | 50x50x1000 50x50x2000 | |||
| M2 | 20x20x1000 20x25x1000 | M1.5 | 17x17x250 17x17x500 | M6 | 60x60x250 60x60x500 | ||
| M2.5 | 25x25x1000 25x30x1000 | 17x17x1000 17x17x2000 | M4 | 22x22x250 22x22x500 | 60x60x1000 60x60x2000 | ||
| M3 | 30x30x1000 30x35x1000 | M2 | 20x20x250 20x20x500 | 22x22x1000 22x22x2000 | M8 | 80x80x250 80x80x500 | |
| M4 | 40x40x1000 40x45x1000 | 20x20x1000 20x20x2000 | M4 | 30x30x250 30x30x500 | 80x80x1000 80x80x2000 | ||
| M5 | 50x50x1000 50x55x1000 | M2.5 | 25x25x250 25x25x500 | 30x30x1000 30x30x2000 | M10 | 100x100x250 100x100x500 | |
| M6 | 60x60x1000 60x65x1000 | 25x25x1000 25x25x2000 | M4 | 40x40x250 40x40x500 | 100x100x1000 100x100x2000 | ||
| M8 | 80x80x1000 | 40x40x1000 40x40x2000 |
2.We can also manufacture custom made gear racks, when customers provide us with drawings.
- Spur gear racks
- Bevel gear racks (straight teeth / spiral teeth)
- Rack and pinion
- Helical gear racks (helix gear racks)
- Worm gear racks (worm wheel)
- Screw gear racks
- Internal gear racks
- Ring gear racks
- Hypoid gear racks
- With / without Ground teeth
- With / without Hardened teeth
(Precision:From Grade7-10 Material:C20 C45 STEEL
| Prod Model: | M1 M1.5 M2 M2.5 M3 M4 M5 M6 M8 |
|---|---|
| Surface Treatment: | Hardended Treatment,Black Treatment,Zinc Plated |
| Country Of Original: | China |
| Usage: | CNC Machine |
| Material Used: | C45,Plastic or as Your Require |
| Loading Port: | Shanghai & Qingdao |
| Sample Order: | Support |
| Shipping: | by Express,by Air or by Sea |
| Payment: | Tt& LC,Negotiable |
| Packing: | Wooden Case out Packing |
Shanghai RuiBiao Construction Machinery Co., Ltd is the special maker of power precision transmission products of gear racks, slewing ring bearings, safety devices and gearboxes, Anemometer Wind Speed Meter, Overload Indicator and Sensor, Worm and Worm Wheel, Hoist Spare Parts for construction, engineering, lifters, lifting elevators, hoists, and machinery transmission. Our products are mainly exported to Malaysia, Italy, the USA, Spain, Greece, Turkey and Russia. We can satisfy our customers' needs well. We can produce products according to customers' special requirements.
We are making precision casting parts according to customer's technical requirements
We sincerely hope to cooperate with friends in the fields!
