Item No.: | YJM-04 |
Brand Name: | Yuanjin |
Item Name: | 6-bay double-sided mobile filing shelves |
Size: | L900*D600*H2300/pc |
Layers: | 5 storage space |
Material: | high-quality cold-rolled steel Q235 |
Color: | light grey |
Surface finishing: | eploxy powder coating |
Technic: | environmental powder coating ,static electricity spurtmold , pickling and phosphorization technics to deal with the surface to ensure the elegance and solidity of the products,prevent the paint losing and rusting. |
Packing: | knock-down in export carton, the same member individually packaged |
Load capacity: | 60-80pcs/20FCL, 150-170pcs/40HQ |

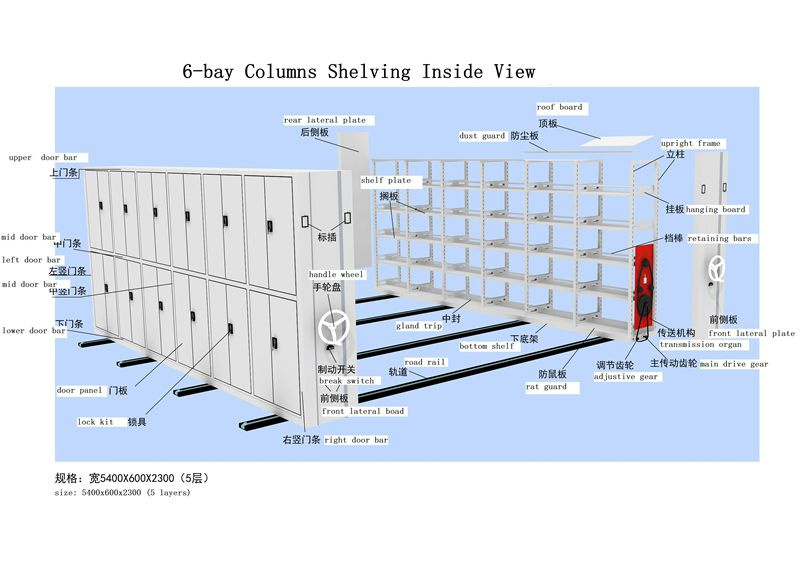

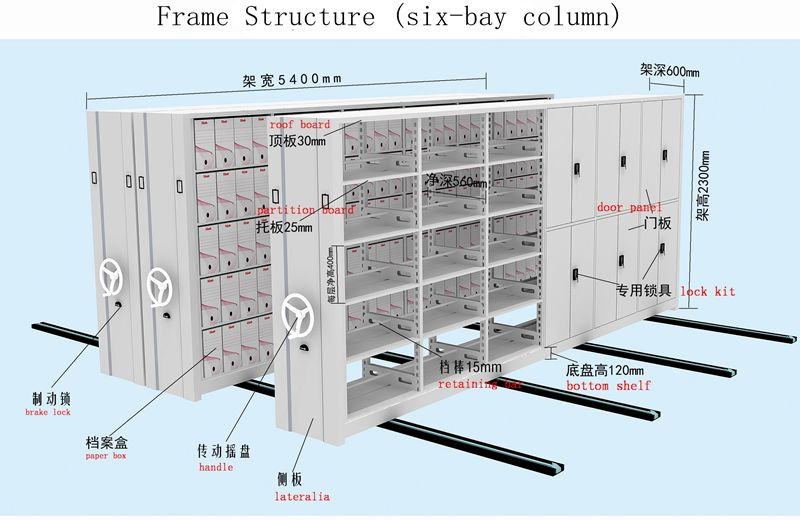

Materials: | |
| chassis: 2.8mm hot-rolled steel, GB710-88 |
| rail: 20*20 solid square steel, GB699-88 |
| sill beam: 2.8mm hot-rolled steel |
| axle bumper & clamping device: 2.0 hot-rolled steel |
| upright: 1.5mm cold-rolled steel, GB710-88 |
| partition board: 1.0mm cold-rolled steel, GB710-88 |
| hanging board: 1.0mm cold-rolled steel, GB710-88 |
| shelf board: 1.0mm cold-rolled steel, GB710-88 |
| baffle: 0.8mm cold-rolled steel, GB710-88 |
| door frame: 0.8mm cold-rolled steel, GB710-88 |
| door: 1.0mm cold-rolled steel |
| positioning module: ABS injection moulding |
| side panels: deluxe concave-convex type 0.9mm cold-rolled steel, GB710-88 |
| bearing: double the nucleus HR204E, GB710-88 |
| transmission shaft: Φ20 solid steel 45#, GB699-88 |
| steel pipe connection: Φ20 solid steel 45#, GB699-88 |
| steel roller: HT200 gray iron, GB9439-88, 1000kg/roller |
| gear: ZG45 roller, GB1135-89 |
| motorcycle chain: Φ8.5 pitch, 12.7FR 420, GB1244-85, ISO9001 certified |
| handle: imported plastic steel, A bi-directional overrunning clutch structure GB1285-85 |
| handle assembly: roller bearing, A bi-directional overrunning clutch structure GB1285-85 |
| side column lock kit: 808 lock, luxury, each column are provided with braking device |
| gate lock: buckle type square lock |
| shock-proof seal: 20mm, magnetic refrigerator door stopper |
| roof: 0.8mm cold-rolled steel, GB710-88 |
| dust guard, rat guard: 0.8mm cold-rolled steel, GB710-88 |
| device preventing tilting: 3.0mm cold-rolled steel, GB710-88 |
| preprocessing: Zn phosphorization, USA standard, ISO9001 certified |
| high pressure electrostatic spray: epoxy polyester mixed powder |
| water washing: ≤10ЦS conductivity, USA standard |
Applications: | law libraries |
| public & privite libraries |
| health care storage |
| government offices |
| fine art storage |
| archival storage |
| archeological storage |
| backroom storage |
| bank |
| institute and school |
Features: | 1. Maximum space utilization and perfect seal, neat/elegant for file storage; |
| 2. Good performance, easy to disassemble and Install; |
| 3. High reliability anti-tilting ability; |
| 4. Strong, durable and steady; |
| 5. Security acess control; |
| 6. Soft start and soft stop. |
Service: | 1. 10 years warranty; |
| 2. Various sizes and colors available; |
| 3. with prompt delivery and competitive price; |
| 4. offering multiple perfect workable solutions for free for customers' reference; |
| 5. Has after-sales service department to accept and treat feedback information from customers. |
