Home Rack Products Heavy Duty Pallet Rack for Industrial Warehouse Storage Solutions
Heavy Duty Pallet Rack for Industrial Warehouse Storage Solutions
| Price: | US $ 50-200/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Set |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Heavy Duty Pallet Rack for Industrial Warehouse Storage Solutions

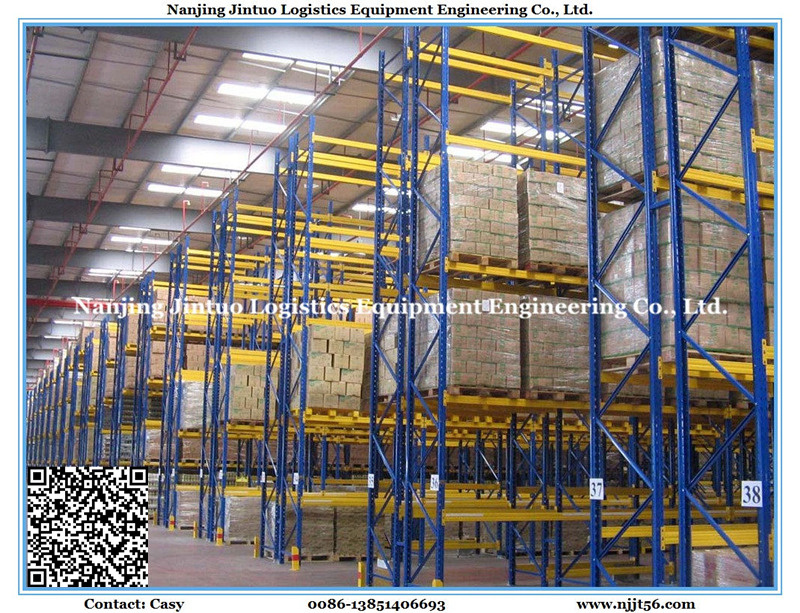

Heavy Duty Rack is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Features:
1. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.
3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Strength and rigidity prevents compression damage to goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
Parameters:
Loading Capacity:Up to 5,000 kgs UDL/level
Racking Height:Up to 11,000mm
Racking Depth:700-1200mm
Beam Length:Up to 3600mm
Racking Finish:Powder Coated Finish or Galvanised Finish for Post & Bracing.
Heavy Duty Rack is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Features:
1. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.
3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Strength and rigidity prevents compression damage to goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
Parameters:
Loading Capacity:Up to 5,000 kgs UDL/level
Racking Height:Up to 11,000mm
Racking Depth:700-1200mm
Beam Length:Up to 3600mm
Racking Finish:Powder Coated Finish or Galvanised Finish for Post & Bracing.
| Features | 1. Pallets can be located, accessed and moved individually. 2. Rapid handling of almost all types of palletized goods. 3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. 5. Strength and rigidity prevents compression damage to goods. 6. Bottom level of pallets can be stored on the floor, lowering structure costs. |
| Load Capacity & Dimension | 1. Loading capacity: 500-4, 000 kg UDL/beam level. 2. Height: 1, 000-11, 000mm 3. Depth: 400-1, 500mm 4. Length: 1, 500-3, 300mm 5. Special sizes also available to specific storage needs. |
| Main Parts Specification | 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. 2. Boxed beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Material | High-quality steel from big steel company in China |
| Finish | High-quality Powder Coating |
| Delivery | Within 25 days for ordinary order quantity. Big production capacity allows us to make a quick delivery. |
| Prod Model: | HT01 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: | Plastic Spray or Baked Paint Finishing |
| Color: | as Required |
| Pitch: | 75mm |
| Feature: | Corrosion Protection |
| Connecting Way: | Bolted |
| Operation: | by Forklift or Stacker |
| ODM: | Yes |
| OEM: | Yes |
| Type Of Company: | Manufacturer |
| Loading Port: | Nanjing |
| Material: | Steel |
| Structure: | Rack |
| Serviceability: | Common Use |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | New Type |
| Weight: | up to 4500kg |
| Height: | Selective |
