Glass Ice Cream Cup Making Machine
| Price: | US $ 165000-210000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | PPTF-70T |
|---|---|
| Max. Forming Area: | 685×320mm |
| Forming Depth: | 160mm |
| Sheet Width Range: | 550-720mm |
| Water Consumption: | 50L/Min |
| Power (Three Phase Four Wire): | 3×380V+Np+PE.50Hz |
Product Description
Products Description:

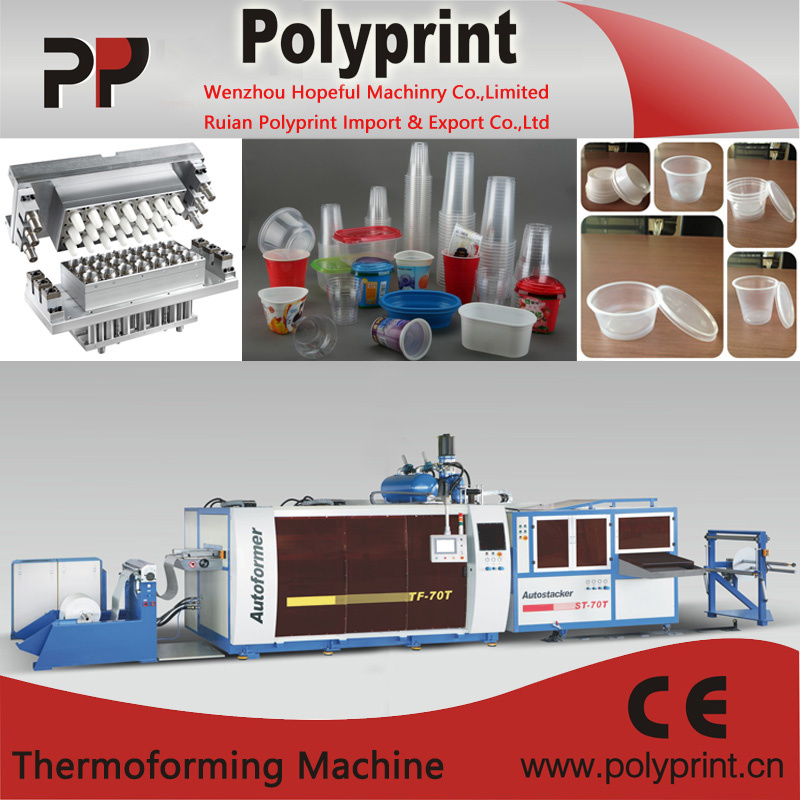

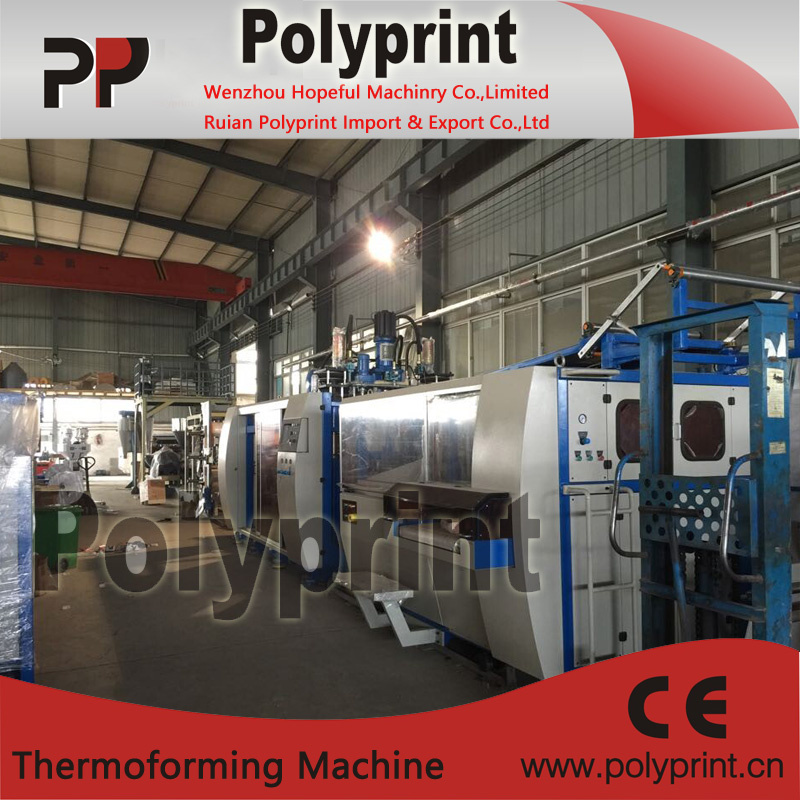

PPTF-70T Automatic Thermoforming Machine special designed for high quality cups. Servo motor for sheet feeding and plug system. The whole line controlled by PLC. It is operates man-interface, which can works all by itself. Feeding system droved by chain and it adopt cam forming and cutting method. This is an automatic and efficient plastic cup forming machine which include feeding, heating, pulling, forming, cutting and stacking.
FEATURE:
Rapid mould changing device
Buffer design is adopted for the width of chain holder thus eliminating chain binding condition resulting from insufficient heating of sheet.
Up and down ceramic heater are adopted for heating with several sets of SSR and PID temperature control
Automatic stacker system
PLC and humanized color touch screen control operation interface.
Mould automatic memory system.
Technical Parameter:
Sample Picture:
Our services:
1. warranty:1year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2. Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3. Quotation: valid for 60days.
Packaging shipping:
Company information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.
Contact information:
MrRae
18957739675
FEATURE:
Rapid mould changing device
Buffer design is adopted for the width of chain holder thus eliminating chain binding condition resulting from insufficient heating of sheet.
Up and down ceramic heater are adopted for heating with several sets of SSR and PID temperature control
Automatic stacker system
PLC and humanized color touch screen control operation interface.
Mould automatic memory system.
Technical Parameter:
| 1 | Max. Forming Area | 685×320mm |
| 2 | Max. Forming Depth | 130mm |
| 3 | Max. Clamping Force | 300KN |
| 4 | Dry Cycles Speed | 42 Cycles/min |
| 5 | Sheet Width Range | 550-720mm |
| 6 | Sheet Thickness | 0.35-2.0mm |
| 7 | Max. Roller Diameter | Φ1000mm |
| 8 | Air Pressure | 0.7-0.85mpa |
| 9 | Water Consumption | 50 L/min |
| 10 | Air Consumption | 3000 L/min |
| 11 | Machine Weight | 11500kg |
| 12 | Dimension | 12500×3650×3550mm |
| 13 | Power (3 Phase 4 Wire) | 3×380V+NP+PE.50HZ |

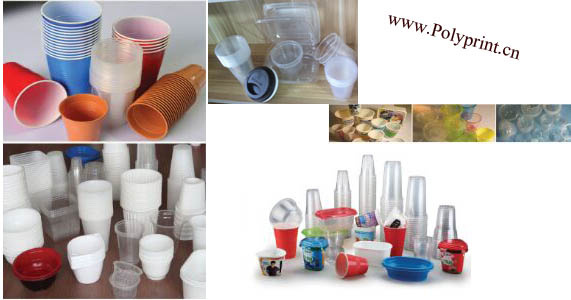

Sample Picture:
Our services:
1. warranty:1year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2. Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3. Quotation: valid for 60days.
Packaging shipping:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.
Contact information:
MrRae
18957739675
