Foldable Steel Wire Mesh Storage Container for Industrial Warehouse
| Price: | US $ 10-80/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

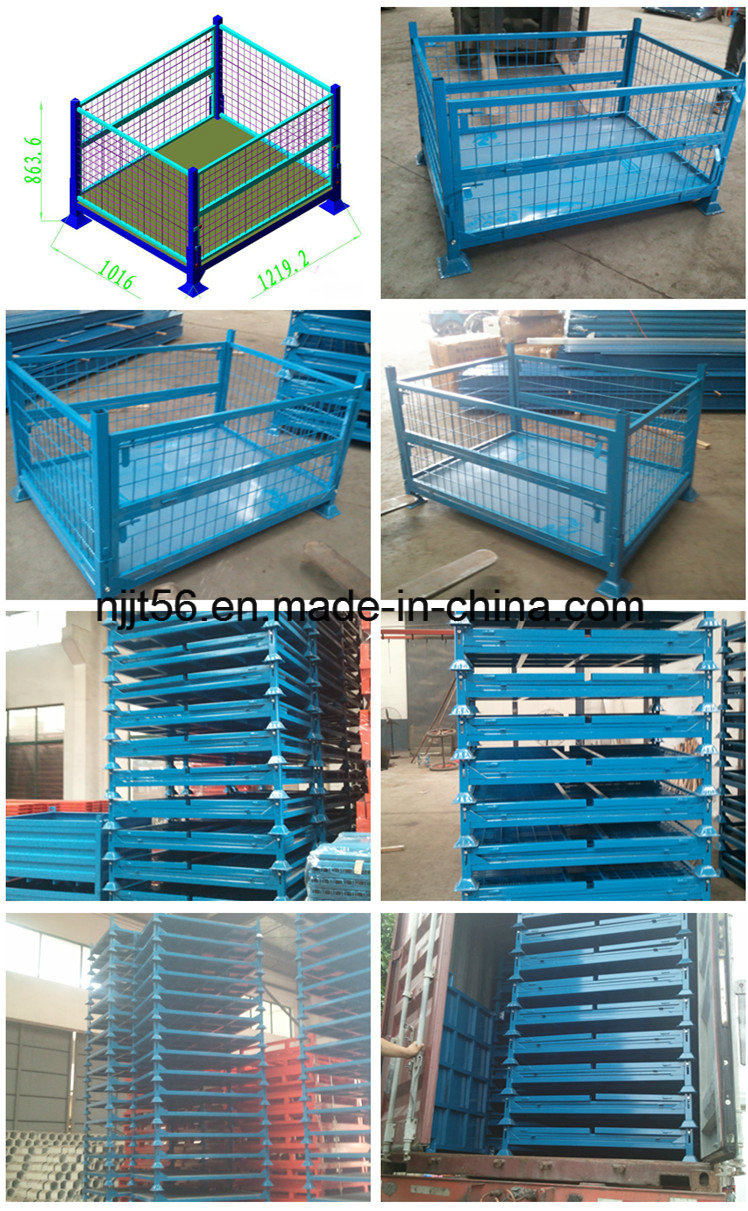

Foldable Steel Wire Mesh Storage Container for Industrial Warehouse
1. Details
A. Professional wire mesh box manufacturer
B. We offer wire mesh box of high quality and best price.
C. Long time supply
D. Promptly delivery and good services
E: Material: Steel
F: Surface Treatment: Powder painting or zinc coated
2. advantages
A. Welded wire mesh structure: Stable, durable, high loading capacity;
B. Surface treatment: Electro galvanized finish or Powder coated finish is available;
C. Stackable, collapsible, folds flat to save space;
D. Drop gate for easy access when stacked;
E. Easy fork access from all sides;
F. Lowest maintenance cost;
G. Most sizes and capacity are available.
3. Wire Mesh Container features
A. Stackable: Can be stacked to 4 layers, achieve three-dimensional storage;
B. Collapsible: Save space when not used;
C. Made of strong steel, welding with U channel steel at the bottom to guarantee the load capacity;
D. Use bolt structure, easy to open the door and fetch goods;
E. Surface treatment: Galvanization; Bright and clean, corrosion resistance, long service life;
F. Operated with hydraulic trucks, forklifts, elevators and other handling equipment, simple operation, widely used.
4. Application
A. Suitable for electron, medicine, education, light industry and library areas.
B. Applied with conveying equipment which is convenient to transportation, tumover and storage.
5. Packing & Delivery
A. Packing: Packed in bundles and stretch films outside or according to your requirement.
B. Delivery: Within 10-20 days according to quantity
6. Contact Information
Casy Chen
Tel: 0086-13851406693
Fax: 0086-025-86109278
1. Details
A. Professional wire mesh box manufacturer
B. We offer wire mesh box of high quality and best price.
C. Long time supply
D. Promptly delivery and good services
E: Material: Steel
F: Surface Treatment: Powder painting or zinc coated
| Item | Large Stackable Metal Wire Mesh Pallet Container size in L2200*W1100*H1000mm |
| Material | Steel Q235 |
| Size | 2200*1100*1100mm or as your requiremnt |
| Mesh Space | 50*50mm, 50*100mm, 100*100mm, 25*25mm or as your request |
| Wire Diameter | 4.8-6.4mm |
| Finished | Galvanized! / Powder Coated! |
| Loading capacity | 0.5-2.5TONS |
| OEM and ODM | Yes |
A. Welded wire mesh structure: Stable, durable, high loading capacity;
B. Surface treatment: Electro galvanized finish or Powder coated finish is available;
C. Stackable, collapsible, folds flat to save space;
D. Drop gate for easy access when stacked;
E. Easy fork access from all sides;
F. Lowest maintenance cost;
G. Most sizes and capacity are available.
3. Wire Mesh Container features
A. Stackable: Can be stacked to 4 layers, achieve three-dimensional storage;
B. Collapsible: Save space when not used;
C. Made of strong steel, welding with U channel steel at the bottom to guarantee the load capacity;
D. Use bolt structure, easy to open the door and fetch goods;
E. Surface treatment: Galvanization; Bright and clean, corrosion resistance, long service life;
F. Operated with hydraulic trucks, forklifts, elevators and other handling equipment, simple operation, widely used.
4. Application
A. Suitable for electron, medicine, education, light industry and library areas.
B. Applied with conveying equipment which is convenient to transportation, tumover and storage.
5. Packing & Delivery
A. Packing: Packed in bundles and stretch films outside or according to your requirement.
B. Delivery: Within 10-20 days according to quantity
6. Contact Information
Casy Chen
Tel: 0086-13851406693
Fax: 0086-025-86109278
| Type | Layers | External Size(mm) | Diameter (mm) | Wire Mesh (mm) | Capacity (kg) | Volume (m3) | Foot Height (mm) | ||
| L | W | H | |||||||
| A-5 | 4 | 1000 | 800 | 840 | 6.0 | 50x50 | 1200 | 0.52 | 100 |
| B-5 | 4 | 1000 | 800 | 840 | 6.4 | 50x50 | 1500 | 0.52 | 100 |
| B-5 1/2 | 4 | 1000 | 800 | 500 | 6.4 | 50x50 | 1000 | 0.26 | 100 |
| C-5 | 4 | 1000 | 800 | 840 | 4.8 | 50x50 | 600 | 0.52 | 100 |
| S-5 | 4 | 1000 | 800 | 840 | 6.4 | 50x100 | 1000 | 0.52 | 100 |
| F-5 | 4 | 1000 | 800 | 840 | 6.0 | 50x100 | 1000 | 0.52 | 100 |
| A-7 | 4 | 1200 | 1000 | 890 | 6.0 | 50x50 | 1500 | 0.84 | 100 |
| B-7 | 4 | 1200 | 1000 | 890 | 6.4 | 50x50 | 2000 | 0.84 | 100 |
| S-7 | 4 | 1200 | 1000 | 890 | 6.4 | 50x100 | 1000 | 0.84 | 100 |
| F-7 | 4 | 1200 | 1000 | 890 | 6.0 | 50x100 | 1000 | 0.84 | 100 |
| C-7 | 4 | 1200 | 1000 | 890 | 4.8 | 50x50 | 500 | 0.84 | 100 |
| A-9 | 4 | 1200 | 800 | 840 | 6.0 | 50x50 | 1200 | 0.65 | 100 |
| B-9 | 4 | 1200 | 800 | 840 | 6.0 | 50x50 | 1500 | 0.65 | 100 |
| A-3 | 4 | 800 | 600 | 640 | 6.0 | 50x50 | 800 | 0.22 | 100 |
| C-2 | 4 | 800 | 500 | 540 | 4.8 | 25x50 | 500 | 0.19 | 100 |
| Other specifications can be customized. Contact: Casy Chen | |||||||||
| Prod Model: | Selective |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: | 800mm |
| Width: | 600mm |
| Height: | 640mm |
| Capacity: | 2000kg |
| Stackable: | Yes |
| Mesh Sapce: | 50*50,50*100mm |
| Wire Dia: | 6.0,5.0,4.8mm |
| ODM: | Yes |
| Material: | Steel ;Metal |
| Certification: | CE, SGS, ISO9001, RoHS |
| Type: | Foldable Storage Cage |
| Mesh Spacing: | 50mm?รก100mm |
| Feet Height: | 100mm |
| Size: | 500mm-1200mm |
| Load Capacity: | up to 2000kg |
| Wire Diameter: | 5.0-6.0 |
| Wire Diameter: | 5.0-6.0 |
