1. Product Description:

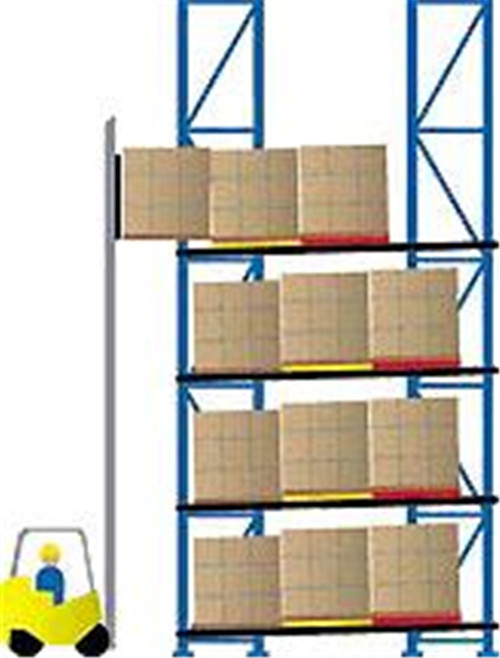

Push back rack is designed to increase storage efficient, its concept is stackable carts move from the front to back beam on special inclined rails. First store-in pallet sit on the top cart, the second store-in pallet push the top cart to the back and vacant the second cart for the second pallet. While picking up the front pallet from the rack, the second pallet will slide to the front. It is a first in last out storage concept but it is different from Drive-In rack, handling truck operate only at the front of the rack without drive into the rack.
Push back rack have all the advantages of Drive-In and Live Storage Rack, pick and drop at the same face, first in last out and is best for the storage of mast volume and lesser SKU. It is suitable for small warehouse and the floor utilization is about 70%.
The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are RAL 5015 (= sky blue) for the frames and RAL 2004 (=pure orange) for the beams. Protectors are painted in RAL 1004 (= golden yellow). Some smaller parts have a galvanized finishing. Special colors are available on request.
3. Advantages and Key benefits·
Complies with international norms and regulations
· Wide range of basic components for storage of all pallet sizes and weights.
· Many standard accessories to meet every storage need you can imagine
· Computer aided design ensuring the best solution for every application, including static calculations
· Rigid and stable construction
· High quality of finish
· Easy and quick installation
· Mass volume production to offer very cost effective products

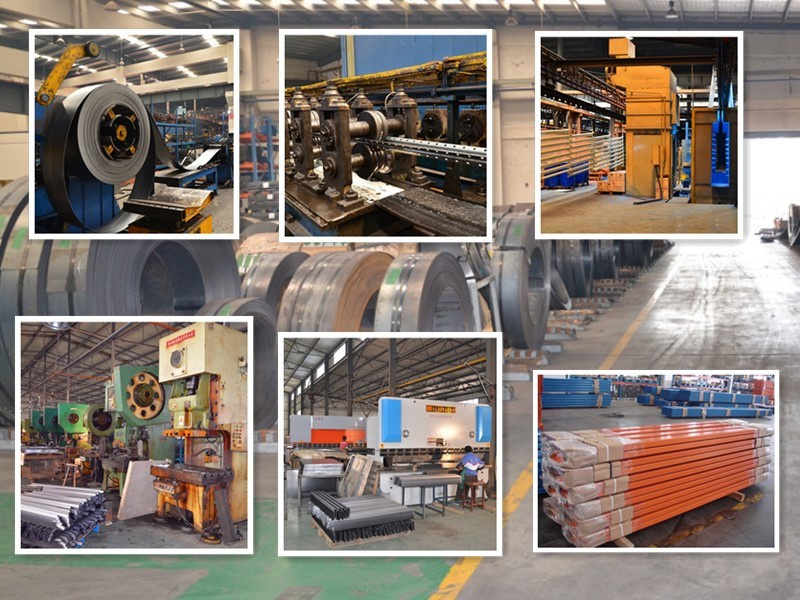

4. Factory Production:
5. RFQ documents: Before you send us your Requirement For Quotation, please prepare the following information:
Push back rack is designed to increase storage efficient, its concept is stackable carts move from the front to back beam on special inclined rails. First store-in pallet sit on the top cart, the second store-in pallet push the top cart to the back and vacant the second cart for the second pallet. While picking up the front pallet from the rack, the second pallet will slide to the front. It is a first in last out storage concept but it is different from Drive-In rack, handling truck operate only at the front of the rack without drive into the rack.
Push back rack have all the advantages of Drive-In and Live Storage Rack, pick and drop at the same face, first in last out and is best for the storage of mast volume and lesser SKU. It is suitable for small warehouse and the floor utilization is about 70%.
2. The basic components

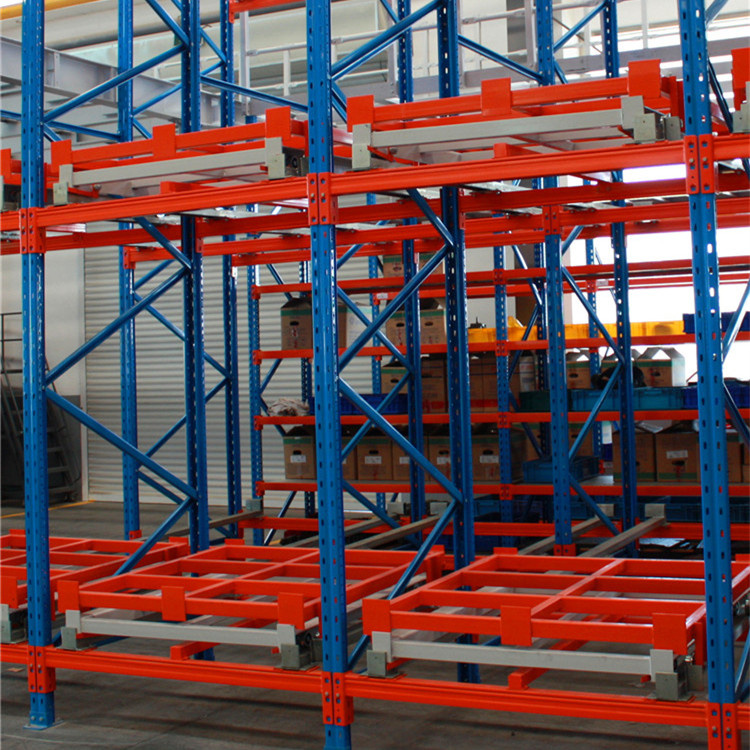

Push back racking is composed of frames,beams and push back carts.The system is designed for the optimized storage of goods of all sizes and weights, normally it has three to four pallets deep.The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are RAL 5015 (= sky blue) for the frames and RAL 2004 (=pure orange) for the beams. Protectors are painted in RAL 1004 (= golden yellow). Some smaller parts have a galvanized finishing. Special colors are available on request.
3. Advantages and Key benefits·
Complies with international norms and regulations
· Wide range of basic components for storage of all pallet sizes and weights.
· Many standard accessories to meet every storage need you can imagine
· Computer aided design ensuring the best solution for every application, including static calculations
· Rigid and stable construction
· High quality of finish
· Easy and quick installation
· Mass volume production to offer very cost effective products
4. Factory Production:
5. RFQ documents: Before you send us your Requirement For Quotation, please prepare the following information:
- Warehouse layout CAD drawings if available.
- Pallet size, entry side, width, depth, height of goods.
- Loading weight per pallet.
- Clear height of the warehouse
- Your forklift information, working aisles width and max. reaching height.
- Your intra logistic flow within the warehouse.
| Prod Model: | PB90 |
|---|---|
| Pallet Deep: | 2,3,4 |
| Load Capacity: | 1000-2000kg |
| Finish: | Powder Coated |
| Proposal Design: | Available |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Semi-closed |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 500kg-2000kg |
