Home Rack Products Customized Warehouse Storage Racking of Wire Mesh Decking
Customized Warehouse Storage Racking of Wire Mesh Decking
| Price: | US $ 0.6kg |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |

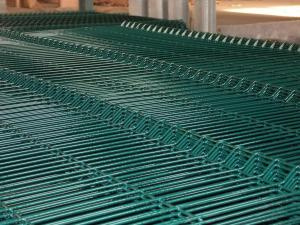

Heavy Duty Galvanized Wire Mesh Decking for Warehouse Pallet Rack
We can manufacture varieties of welded wire mesh sheet, ungalvanized, eco-galvanized and hot dipped galvanized.
Suitable for a wide variety of purposes including pet cages and enclosures, trailer cages, security, gardens, shelving, and much more.
Please email us if you do not see what you need, we will help you.
Detail description:
1. Designed for storing few varieties and large quantities of similar goods with very high space utilization
2. Goods are stored and removed from the same side, or done from the opposite side in accordance with the first-in first-out principle
3. Especially suitable for standard goods units
4. Insertion combination between crossbeams and vertical columns
5. Parts: Upright poles, layer plates, crossbeam, bracing, safety pins, wire footing plates, beam supporting
6. Material: High quality steel
7. Max. Load capacity: Up to 1000kg UDL.
Product Specification:
Deck Size: Width 800mm to 1350mm, Depth base on Racking's Depth
Grid Size: 100mmx50mm, 100mmx25mm, 50mmx50mm and 50mmx25mm. The most using one is 100mm X 50mm. (4"X2")
Wire dia: Dia. 4mm, dia. 5mm or dia. 6mm. 5ga, 6ga
Weight: 6-15KG
Waterfall: 1.5" down, 38mm
Surface treatment: Galvanized or powder coating
Channels: 3-5
Channel Length: Base on the Depth
Channel style: U Channel
Capacity: 500-1500KG, 1100lbs-3500lbs.
Product Feature:
1. Welding with U type reinforcing steel under wire decking to get a big load capacity;
2. Surface treatment: Galvanization or powder coating; Antirust and Corrosion resistant;
3. Used together with the Pallet rack or Long Span shelving,
Can be put on the box beam, Step beam or Z beam;
Packing & Delivery:
1. Packing: Plastic film, wooden pallet or according to your requirement
2. Delivery: Within 7-20 days according to quantity
We can manufacture varieties of welded wire mesh sheet, ungalvanized, eco-galvanized and hot dipped galvanized.
Suitable for a wide variety of purposes including pet cages and enclosures, trailer cages, security, gardens, shelving, and much more.
Please email us if you do not see what you need, we will help you.
Detail description:
1. Designed for storing few varieties and large quantities of similar goods with very high space utilization
2. Goods are stored and removed from the same side, or done from the opposite side in accordance with the first-in first-out principle
3. Especially suitable for standard goods units
4. Insertion combination between crossbeams and vertical columns
5. Parts: Upright poles, layer plates, crossbeam, bracing, safety pins, wire footing plates, beam supporting
6. Material: High quality steel
7. Max. Load capacity: Up to 1000kg UDL.
Product Specification:
Deck Size: Width 800mm to 1350mm, Depth base on Racking's Depth
Grid Size: 100mmx50mm, 100mmx25mm, 50mmx50mm and 50mmx25mm. The most using one is 100mm X 50mm. (4"X2")
Wire dia: Dia. 4mm, dia. 5mm or dia. 6mm. 5ga, 6ga
Weight: 6-15KG
Waterfall: 1.5" down, 38mm
Surface treatment: Galvanized or powder coating
Channels: 3-5
Channel Length: Base on the Depth
Channel style: U Channel
Capacity: 500-1500KG, 1100lbs-3500lbs.
| Item NO. | Specification (mm) | Wire dia. (mm) | Mesh (mm) | load capacity (kg) | ||
| L | W | H | ||||
| SL01 | 1350 | 1200 | 50 | 6.4 | 50x50 | 500-1000 |
| SL02 | 1350 | 1000 | 50 | 6.0 | 50x50 | 500-1000 |
| SL03 | 1200 | 1000 | 40/50 | 5.5 | 50x50 | 500-1000 |
| SL04 | 1150 | 1000 | 40/50 | 5.5 | 50x100 | 400-800 |
| SL05 | 1000 | 1000 | 30/40 | 5.0 | 50x100 | 300-600 |
| SL06 | 900 | 1000 | 30/40 | 5.0 | 50x100 | 300-600 |
| Any size can be customized. | ||||||
Product Feature:
1. Welding with U type reinforcing steel under wire decking to get a big load capacity;
2. Surface treatment: Galvanization or powder coating; Antirust and Corrosion resistant;
3. Used together with the Pallet rack or Long Span shelving,
Can be put on the box beam, Step beam or Z beam;
Packing & Delivery:
1. Packing: Plastic film, wooden pallet or according to your requirement
2. Delivery: Within 7-20 days according to quantity
| Decking Size: | 1250*840 1350*840 1250*1220 1350*1220 1250*1070 |
|---|---|
| Lead Time: | Two Weeks |
| Capacity: | up to 1000kg Udl |
| Export Markets: | Global |
| Structure: | Layer Frame |
| Serviceability: | Common Use |
| Weight: | 500kg |
| Mobility: | Adjustable |
| Height: | 0-5m |
| Closed: | Open |
| Development: | Conventional |
| Material: | High Quality Steel |
