Customized Steel Rack Decking with Waterfall by Galvanzied
| Price: | US $ 6/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

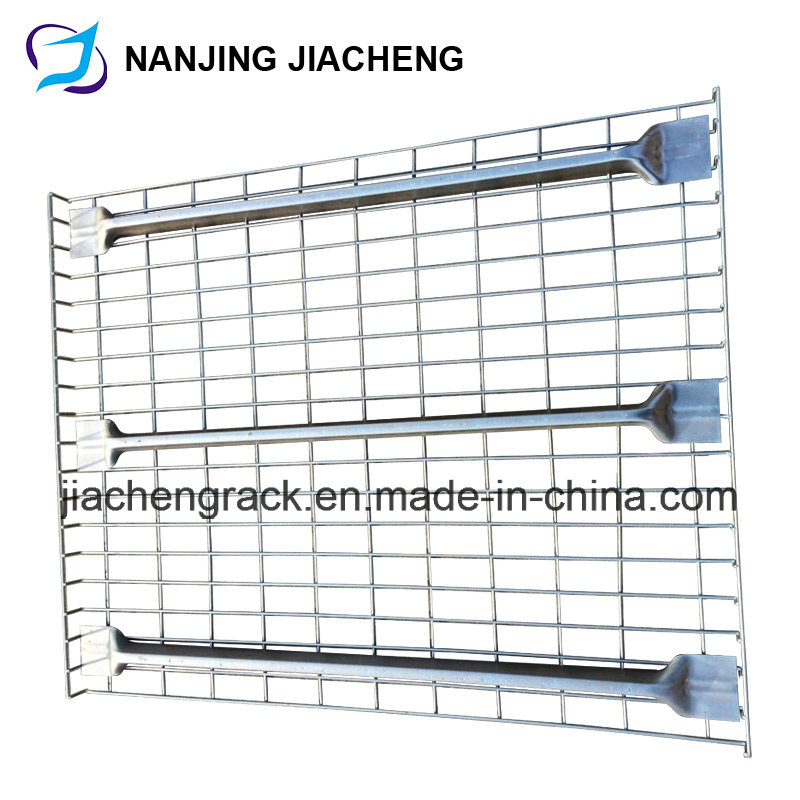

Our wire decking is made of strong welded wire mesh, with support channel to each pane. Simply drops in place with deck supports wrapped around the top and face of the beams. They are excellent for storing individual components, cartons or irregular loads. It sits on the pallet racking beams and acts as a shelf. This offers an alternative to timber decking and solid steel panel solutions. This product also allows the permutation of sprinkler water in the eve. It is available in either a painted or galvanized finish. Multiple panels can be used on a beam level to provide full coverage and loading per panel can be as much as 1500kg UDL. The standard design involves mesh welded to support bars that then sit on the pallet racking beam to help dissipate the load. A heavy duty design involves using pressed locked steel grating with 90 degree steel angles that sit on the pallet racking beams.
Features and Our Advantage:
A. Comprehensive Range Of Sizes
B. Helpful Advice on the design
C. Reliable Lead time
D. Custom sizes and finishes for special application
E. After-welded galvanized finish for rust free life
F. ISO 9,001 quality at competitive price
G. Lowest prices on high quality wire mesh products
H. Easy to install, simply drops into place over the beams of your rack system.
I. Improves fire safety by enhancing the performance of your overhead sprinkler system
J. NO sharp Edges to scratch beam, person or Products.
K. Improves inventory visibility and brightens your facility
L. Self-cleaning / maintenance free
M. Gives you the flexibility to store cartons, drums, and multiple pallet sizes
Packing & Delivery:
A. Packing: We recognize the cost of labor to unload containers in some countries is high. This is why we are always pack our wire decking products on a pallet so they can be unloaded by fork truck. Either way all our product is protected by the plastic film during transportation and we use the carton to protect the 4 corners and we have got the whole batch was tightly bundled by the rope to limit and movement of the goods during transit.
B. Lead Time: 7-25 days
We can also make the customized products as per your required size, color , loading weight, or different style.
Please feel free to contact us for more information:
NANJING JIACHENG STORAGE EQUIPMENT MANUFACTURING CO.,LTD found in the year 2003,. Is the professional manufacturer in China and is engaged in the design and manufacturing storage and logistics products and equipments. The factory covers 20 acres, and the workshop is 6000 square meters. There are over 100 employees including professional design team, so that we can provide the service of professional design, production process, advanced technology and racking manufacturing and finishing.We can design and produce all types of storage racking (light duty rack, medium duty rack, heavy duty rack,
mezzanine, cantilever rack, and drive-in rack), wire container, mesh box, roll container, steel cage, wire decking, wire fence, steel pallet and etc. Meanwhile, we have the team for assembling and after sales service, so that ensure the company with the full system of design, plan, production management, inspection, and after sales service.
We continuously make the new product developments, and increases the production management system level as per the ISO9001 International Quality System standard, and has qualified the CE and EPAL certificate. We are always trying our best to provide the high quality and perfect products and service. Our products have been used in many fields of medicine, food, chemical industry, construction material, electronics, car, machinery, coal power, post and railway etc. We focus not only the China domestic market, but also the oversea markets. Now the products have been exported to USA, JAPAN, RUSSIA, CANADA, AUSTRALIA, INDIA, BRASIL, EURO UNION, MIDDLE EAST COUNTRIES and etc.
Features and Our Advantage:
A. Comprehensive Range Of Sizes
B. Helpful Advice on the design
C. Reliable Lead time
D. Custom sizes and finishes for special application
E. After-welded galvanized finish for rust free life
F. ISO 9,001 quality at competitive price
G. Lowest prices on high quality wire mesh products
H. Easy to install, simply drops into place over the beams of your rack system.
I. Improves fire safety by enhancing the performance of your overhead sprinkler system
J. NO sharp Edges to scratch beam, person or Products.
K. Improves inventory visibility and brightens your facility
L. Self-cleaning / maintenance free
M. Gives you the flexibility to store cartons, drums, and multiple pallet sizes
Packing & Delivery:
A. Packing: We recognize the cost of labor to unload containers in some countries is high. This is why we are always pack our wire decking products on a pallet so they can be unloaded by fork truck. Either way all our product is protected by the plastic film during transportation and we use the carton to protect the 4 corners and we have got the whole batch was tightly bundled by the rope to limit and movement of the goods during transit.
B. Lead Time: 7-25 days
| No. | Specification WXD (inch) | Chanel Number (pcs) | Wire Mesh(inch) | Wire Diameter(mm) | loading quantity of 40'GP(pcs) |
| 1 | 36*46 | 3 | 2.5*4 | 5 | 1596 |
| 2 | 36*52 | 3 | 2.5*4 | 5 | 1596 |
| 3 | 36*58 | 3 | 2.5*4 | 5 | 1216 |
| 4 | 42*46 | 3 | 2.5*4 | 5 | 1520 |
| 5 | 42*52 | 3 | 2.5*4 | 5 | 1216 |
| 6 | 42*58 | 3 | 2.5*4 | 5 | 1216 |
| 7 | 48*46 | 3 | 2.5*4 | 5 | 1368 |
| 8 | 48*52 | 3 | 2.5*4 | 5 | 684 |
| 9 | 48*58 | 3 | 2.5*4 | 5 | 684 |
Please feel free to contact us for more information:
