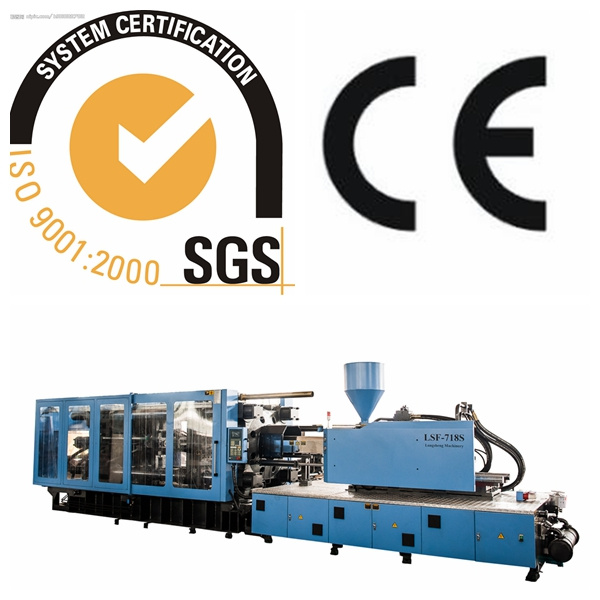

Cup Making Machine
| Price: | US $ 48600/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
We supply complete production line for cup making.
Including injection machine, auxiliary machines(hopper dryer, autoloader, chiller, crusher, mixer, etc), and mould.
The mold feature is as below
General Mold Specifications:
Name
Plastic injection mould
Plastic material
PVC, PPR, PP. PE, ABS, POM, PPH,PSetc
Steel of Cavity & Core
DIN 1.2316/ DIN 1.2738/DIN 1.2344 /M300/ 718/ P20...etc
Steel of Mouldbase
S50C. LkM standardetc
Nos of Cavity
Customized
Hardness of Cavity & Core
42-45HRC
Hardness of Wear Parts
42-48HRC
Core pulling system
Motor /oil cylinder/ stripping plate, angel pinetc
Mould Accessories
DME/HASCO Standard
Cooling system
In core baffle cooling and in cavity plate chain drilling type cooling
Surface finish
Diamond Polish,
Molding life
500, 000-1, 200, 000shots
Runner
Cold or Hot
Delivery time
35-55work days
Packing
Wooden case
Featues of cup making machine.
Standard equipment:
1) Double cylinder balancing injections
2) High-torque oil-motor preplasticizing
3) Five pivots minus relief angle, double toggles, machine hinge
Mold locking
4) Cabinet-type holder integrates the mold plate
5) Oil motor driven gear mold adjusting
6) Storage-type grease lubricating
7) Pressure and flow whole-proportion running
8) High-performance, low-noise oil pump
9) Multi-step pressure and speed adjusting
10) High-precision position linear transducer
11) Digital memory for mold group
Injection unit:
1) Four injection pressures and speeds with three additional
Pressures and speeds
2) Suck back function
3) Cold start protection
4) Pre-suck back function
5) Linear displacement transducer accurately monitor injection
Position, providing optimum. Injection accuracy and control
6) Temperature control
7) Heating Status indication
Clamping unit:
1) Three clamp close and open pressures and speeds
2) Mold protection function
3) Hydraulic ejector stroke controlled by transducer
4) Automatic hydraulic die-height adjustment driven by planetary
Gears system
5) Adjustable support under moving platen
6) Automatic high pressure toggle lubrication with low oil level alarm
7) Mechanical, electrical and hydraulic safety interlock devices
8) Linear displacement transducer controls clamping position
Other parts:
1) Independent core in / out pressure and speed
2) Hydraulic unscrewing sequence
3) Hydraulic oil high temperature alarm
4) System pressure gauge
5) Shot counter and reset function
6) Malfunction alarm light
7) Self-diagnostic function
8) Emergency stop buttons placed both front and rear of the machine
To provide easy access
Including injection machine, auxiliary machines(hopper dryer, autoloader, chiller, crusher, mixer, etc), and mould.
The mold feature is as below
General Mold Specifications:
Name
Plastic injection mould
Plastic material
PVC, PPR, PP. PE, ABS, POM, PPH,PSetc
Steel of Cavity & Core
DIN 1.2316/ DIN 1.2738/DIN 1.2344 /M300/ 718/ P20...etc
Steel of Mouldbase
S50C. LkM standardetc
Nos of Cavity
Customized
Hardness of Cavity & Core
42-45HRC
Hardness of Wear Parts
42-48HRC
Core pulling system
Motor /oil cylinder/ stripping plate, angel pinetc
Mould Accessories
DME/HASCO Standard
Cooling system
In core baffle cooling and in cavity plate chain drilling type cooling
Surface finish
Diamond Polish,
Molding life
500, 000-1, 200, 000shots
Runner
Cold or Hot
Delivery time
35-55work days
Packing
Wooden case
Featues of cup making machine.
Standard equipment:
1) Double cylinder balancing injections
2) High-torque oil-motor preplasticizing
3) Five pivots minus relief angle, double toggles, machine hinge
Mold locking
4) Cabinet-type holder integrates the mold plate
5) Oil motor driven gear mold adjusting
6) Storage-type grease lubricating
7) Pressure and flow whole-proportion running
8) High-performance, low-noise oil pump
9) Multi-step pressure and speed adjusting
10) High-precision position linear transducer
11) Digital memory for mold group
Injection unit:
1) Four injection pressures and speeds with three additional
Pressures and speeds
2) Suck back function
3) Cold start protection
4) Pre-suck back function
5) Linear displacement transducer accurately monitor injection
Position, providing optimum. Injection accuracy and control
6) Temperature control
7) Heating Status indication
Clamping unit:
1) Three clamp close and open pressures and speeds
2) Mold protection function
3) Hydraulic ejector stroke controlled by transducer
4) Automatic hydraulic die-height adjustment driven by planetary
Gears system
5) Adjustable support under moving platen
6) Automatic high pressure toggle lubrication with low oil level alarm
7) Mechanical, electrical and hydraulic safety interlock devices
8) Linear displacement transducer controls clamping position
Other parts:
1) Independent core in / out pressure and speed
2) Hydraulic unscrewing sequence
3) Hydraulic oil high temperature alarm
4) System pressure gauge
5) Shot counter and reset function
6) Malfunction alarm light
7) Self-diagnostic function
8) Emergency stop buttons placed both front and rear of the machine
To provide easy access
| Prod Model: | LSF398 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: | Customized |
| Structure: | Horizontal |
| Plastic Type: | Thermoplastic |
| Plasticizing Way: | Screw Type |
| Clamping Way: | Hydraulic & Mechanical |
| Certification: | SGS |
| Automation: | Automatic |
| Computerized: | Computerized |
| Type: | Injection Molding |
