Home LED Light Products Commerical Heavy Duty Storage Pallet Rack
Commerical Heavy Duty Storage Pallet Rack
| Price: | US $ 1kg |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | PR-03 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: | CE, Ios, As4048, SGS |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Fixed |
| Height: | 5-15m |
| Weight: | 500kg |
| Closed: | Closed |
| Development: | Conventional |
| Serviceability: | Common Use |
Product Description

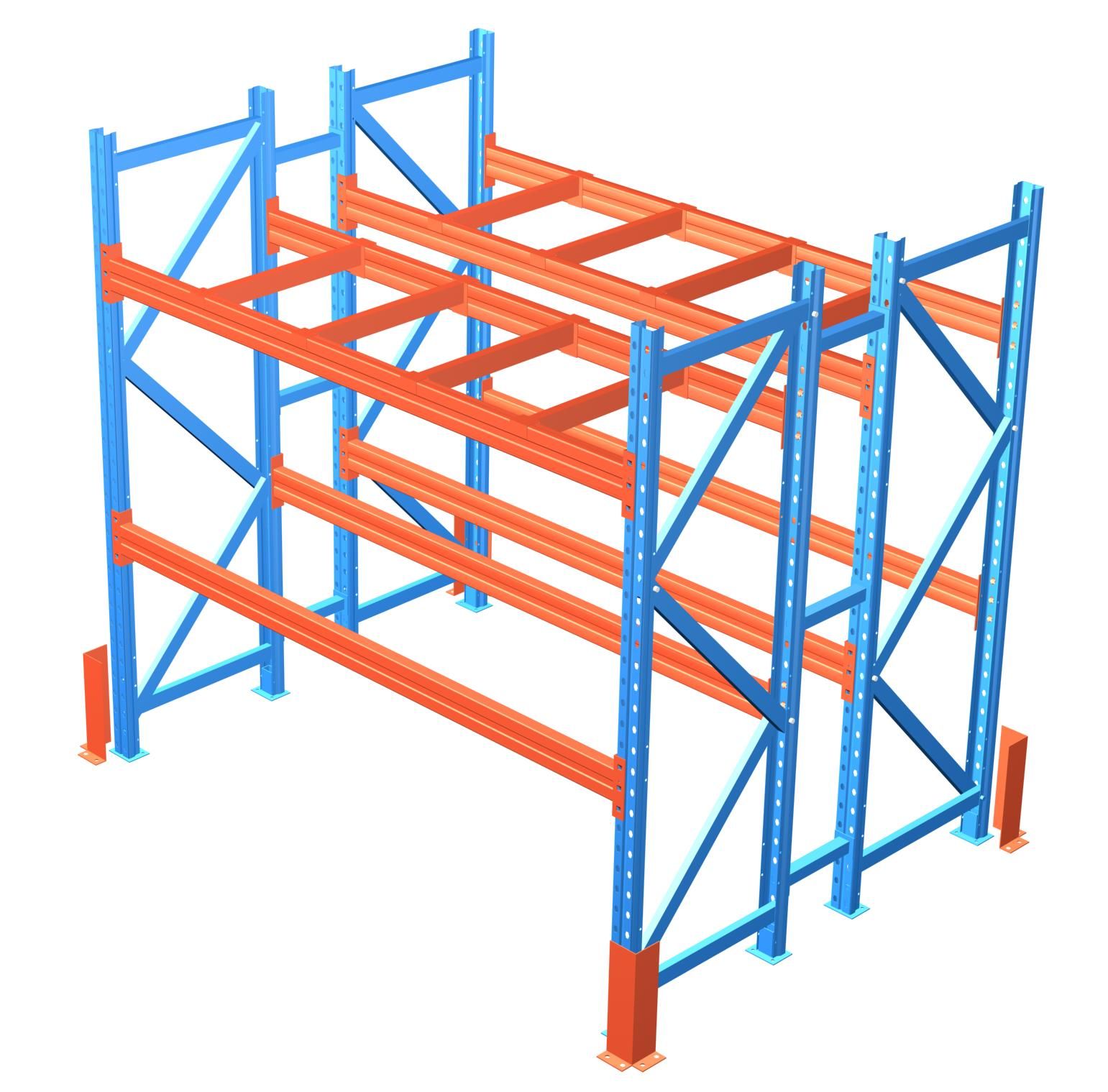

Pallet racking usually consist of upright frame, beam, pallet support bar and other standard components. H-bracing and D-bracing connect with upright by nylon self-lock bolts, can effectively prevent racking from losing balance cause by the release of the bolts; Drum-shaped holes are punched on the upright, so beam can be adjusted by 75 mm . Standard pallet racking is by far the most versatile of any racking as it is available with many configurations, a wide range of accessories and requires no specialized handling equipment. Pallet racking is easily utilized with just standard fork- and hand-trucks. Pallet racking is an ideal starting point for all your warehouse and storage needs. Adjustable pallet racking systems come in many different styles, but it is important to get the basics right. For safe and efficient operation, pallet racking systems must be designed to fit and function with both the handling equipment and the load. Pallet racking systems may have to work with counterbalance trucks, reach trucks, narrow aisle trucks or automated handling equipment.1.Features:
1. The Max. height could reach 16m
2. The beam could be adjusted at the step 75mm,and could better reach the warehouse storage requirements.
3. Conveniently change for damaged parts.
4. The racking surface has been treated, and has high corrosion-proof ability.
5. Could choose more various parts and safety accessories
6. Assembled structure, the racking could be easily and speedily installed
7. The parts adopt high quality material, and could be soldered firmly, installed closely.
8. Perfect accessories system, could be used in various special demands.
2.The Load Table:
| Length | 1500 | 1800 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 |
| Beam Specification | Load/kg | |||||||
| 80×50 | 3000 | 2300 | 1800 | 1500 | 1200 | 1000 | 800 | 700 |
| 100×50 | 4000 | 4000 | 3000 | 2400 | 2000 | 1750 | 1400 | 1100 |
| 120×50 | 4000 | 4000 | 4000 | 3500 | 3000 | 2500 | 2000 | 1800 |
| 140×50 | 4000 | 4000 | 4000 | 4000 | 4000 | 3800 | 3000 | 2500 |
3.Specifications
Our heavy duty racking passed CE and ISO9001, with the features of simply structure, easy operation and a wide range of accessHeavy Duty Racking/ Pallet Racking/ Warehouse Racking
Features:1) A wide range of accessories are available to accommodate non-standard pallet loads, and mesh wire fencing can be incorporated to provide security or bonded enclosures.
2) Suitable for the various occasions of the high, medium, low layer, can be assembled freely and adjusted easily.
