China Portable Adjustable Frame Customized Iron Cargo Storage Collapsible Rack
| Price: | US $ 53-57/Piece |
|---|---|
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,D/P |
Specifications of steel rack
China portable adjustable frame customized iron cargo storage collapsible rack
"C" channel on base, load 1500kg, hot dip galvanized, forklift guide can be added.

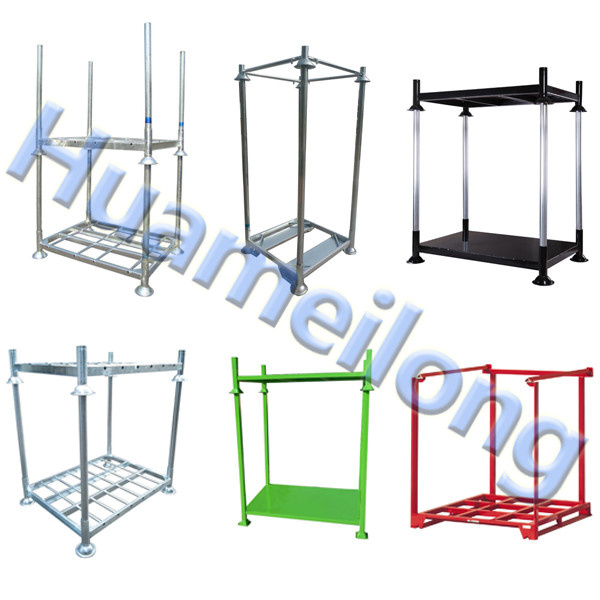

Similar designs of steel rack
Detchable posts (assembled and disassembled within seconds)

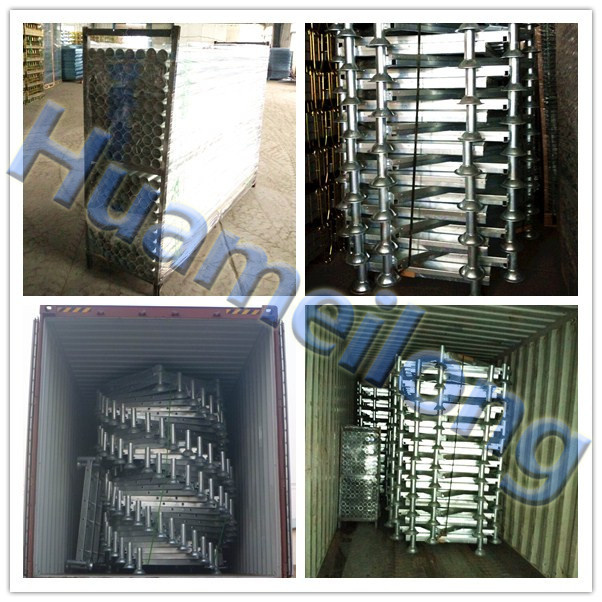

Plastic banding+Stretch film wrapped, easy loading and unloading with standard forklift truck or pallet jack
| Similar design, defferent sizes | |||||
| Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total container |
| LxWxH(mm) | kg | sets | |||
| M1-Base | 1395x1060x310 | 1500 | Hot dip zinc | 220 | 1x40'HQ |
| M1-Post | 1200x60x2.5 | Hot dip zinc | 880 | ||
| M2-Base | 1875x1060x310 | 1500 | Hot dip zinc | 143 | 1x40'HQ |
| M2-Post | 1200x60x2.5 | Hot dip zinc | 572 | ||
| M4-Base | 1545x1050x310 | 1500 | Powder coating | 247 | 1x40'HQ |
| M4-Post | 1510x60x2.5 | Powder coating | 988 | ||
| M5-Base | 1200x1000x310 | 1000 | zinc | 255 | 1x40'HQ |
| M5-Post | 2000x60x2.5 | zinc | 1020 | ||
| M6-Base | 950x950x310 | 1000 | zinc | 160 | 1x40'HQ |
| M6-Post | 2100x60x2.5 | Hot dip zinc | 320 | ||
| Material | Mild steel Q235 | ||||
Application area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Costomized or OEM support | ||||
Key Features | 1.Strong tubular steel - stack up to 4 high | ||||
China portable adjustable frame customized iron cargo storage collapsible rack
"C" channel on base, load 1500kg, hot dip galvanized, forklift guide can be added.
Similar designs of steel rack
Detchable posts (assembled and disassembled within seconds)

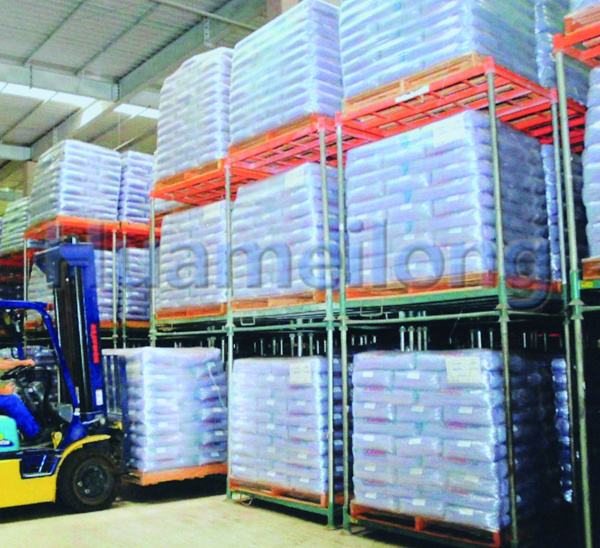

Application of steel rack
It will enable you to transform areas which are usually free into storage spaces
Plastic banding+Stretch film wrapped, easy loading and unloading with standard forklift truck or pallet jack
| Prod Model: | HML-M1 |
|---|---|
| Company Type: | China Professional Manufacturer |
| Product Warranty: | 1 Year |
| M1-Post: | 1200*60 L*W mm |
| M1-Base: | 1395*1060*310 L*W*H mm |
| Loaded In 1*40hq: | 220 Sets |
| Loading Capacity: | 1500kg |
| Finish: | Hot DIP Galvanized |
| Product Shelf Life: | up to 3 or 5 Years Against Proper Handling |
| Remark: | Customized and OEM Support |
| Color: | Optional |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 1500kg |
Dalian Huameilong Metal Product Co. Ltd, one of the most professional manufactures in North China founded in 1993, which specializing in transportation security facilities, material handling equipment and welded wire mesh products.
We can supply nearly 1.000 tons of mesh products each month based on the modern 15.000squaremeter office and factory premises. The company has sheet metal and tube bending, cutting, punching, as well as electronically controlled multiple projection welding machines to manufacture components and other finished products. With our own powder coating system, we are capable of meeting almost every decorative and functional powder coating need. All production and test personnel have received have received the strict training. Only the best quality product could pass our stringent grading process.
Timely service, highly quality products and competitive prices have given us a great reputation among clients worldwide. Since established foreign trade department in 2004, we have accumulated successfully export experience in North American, European, Australian and Japanese market. And we have successfully taken on many domestic isolated gate projects of national items, such as the United Arab Emirates Dubai F1 circuit, Shanghai Floating Magnetic Train Project, Shanghai Pudong International Airport Flying Area Project and Dalian Fast Tram, many of which are highly commend and regarded as popularized items in some cites and provinces.
We not only value existed achievements, but also continuously develop new technology and products to satisfy different requirement from different levels, which is regarded as our invariable purpose wishing a steady and continuous development for ever.
If you are interested in any of our products, please feel free to contract us for more information. We'll be please to create custom orders for you based on your needs. We are looking forward to established business relations with customers from all over the world.
We can supply nearly 1.000 tons of mesh products each month based on the modern 15.000squaremeter office and factory premises. The company has sheet metal and tube bending, cutting, punching, as well as electronically controlled multiple projection welding machines to manufacture components and other finished products. With our own powder coating system, we are capable of meeting almost every decorative and functional powder coating need. All production and test personnel have received have received the strict training. Only the best quality product could pass our stringent grading process.
Timely service, highly quality products and competitive prices have given us a great reputation among clients worldwide. Since established foreign trade department in 2004, we have accumulated successfully export experience in North American, European, Australian and Japanese market. And we have successfully taken on many domestic isolated gate projects of national items, such as the United Arab Emirates Dubai F1 circuit, Shanghai Floating Magnetic Train Project, Shanghai Pudong International Airport Flying Area Project and Dalian Fast Tram, many of which are highly commend and regarded as popularized items in some cites and provinces.
We not only value existed achievements, but also continuously develop new technology and products to satisfy different requirement from different levels, which is regarded as our invariable purpose wishing a steady and continuous development for ever.
If you are interested in any of our products, please feel free to contract us for more information. We'll be please to create custom orders for you based on your needs. We are looking forward to established business relations with customers from all over the world.
