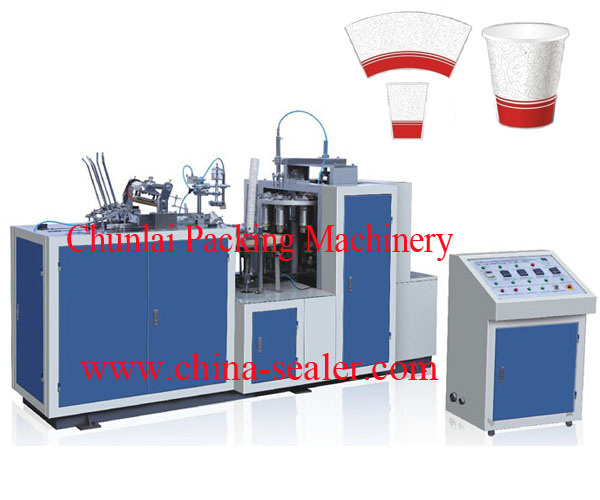

Automatic Paper Cup Forming Machine

JBZ-A12 paper cup forming machine is a multistation automatic machine producing single-sided PE coated drink cups, ice cream cups or conical vessels of other food through continuous process of automatic paper feed, medium welding tube forming, cup rabbet lubrication, body paper rush, bottom pressing, heating, bottom knurling, upper mouth hemming, binding, unloading and finished product stacking.

Main Characteristics:
1. Precise box type indexing cam structure, the parts all adopt standard production, have high generality and good exchange performance, and facilitate equipment maintenance.
2. The paper holder is provided with paper feeding detection function, so that it will alarm automatically when the paper is less than a certain amount. (optional according to the demand of the customer)
3. The heat seal barrel forming part is provided with non-cup-barrel detection, alarming and sopping functions, which enhance the automation degree of the machine. (optional according to the demand of the customer)
4. The bottom-punching part is changed into mechanical probe type detection which ensures the detection precision and the pass rate of finished products.
5. The machine adopts high-position stopping device, so that the machine always stops at the highest point, the mold and the heating furnace are fundamentally separated and the paper cup is prevented from being burned.
6. The large vertical shaft of the machine adopts oil tank lubricating, which ensures that the vertical shaft is soaked in the lubricating oil and is not damaged after long-time running.
7. The company has improved the rolling part, the bottom punching part, the heating part, the rolling wheel and paper cutting, being capable of producing thick paper which is more than 300g/, and is free of water seepage and water leakage.


Technical Parameters

Model	JBZ-A04	JBZ-A12	JBZ-A16	JBZ-A22
Specification of paper cup	2oz,4oz,4.5oz,6.5oz ice cream paper cup	6oz,8oz,9oz,12oz	8oz,9oz,12oz,16oz	8oz,9oz,12oz,16oz
Paper material	Single-sided PE coated paper
Outer diameter of cup rabbet	50-80	50-95	50-95	50-95
Outer diameter of cup bottom	35-70	35-70	35-70	35-70
Cup height	30-60	50-120	80-150	100-175
Bottom depth	≤10	≤10	≤10	≤12
Conicity	4-6o	2-8o	2-8o	2-8o
Rated productivity	40-50pcs/min		35-45pcs/min	35-40pcs/min
Power supply	380V 50Hz
Total power	5KW		6KW
Weight	1600Kg			1900Kg
Packing size(L*W*H)	2800×1350×1760mm 730×600×1100mm		3000×1350×1900mm 730×600×1100mm	3300×1450×2000mm 730×600×1100mm

Company Information

Brief about Chunlai Company,
Wenzhou Chunlai Packing Machinery Co.,Ltd produce "Chunlai"Brand Packing machinery and foot machinery and relevant machinery.Roy thanks for every customer worldwide.


FAQ
Q: First time import, how can I believe that you would send product ?
A: We are verified company by made in china ,to make transaction success, we support with visit our factory.
Q: How to ensure that I received the machine undamaged?
A: First , we package is standard for shipping,then send you the photo when give the product to the freight forwarder. before pick up , please confirm product undamage, if damage, The ship company will take the responsibility.
Q: What aftersales service or any question about products?
A: This machine enjoys 1 years warranty , any problem , I am on line from 9 am to 12 pm, or you can send me mail , will reply you within 12 hours I'll give you detail instruction.
