Automated Radio Pallet Shuttle Racking System
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union |
Automated Radio Shuttle Racking System
For the shuttle
For the racking
Certification:
Company information:
We Hebei Woke Metal Products Co., Ltd was founded in 1996, As a large scale metal products processing enterprise, specialized in manufacturing store shelves&racks, and supplying related facilities, within one set of R&D, design, producing, sales and service, our brand, HEGERLS,is known as shelf expert, China Top Brand, receiving National Inspection free Product honorary title.
We have been supplying facilities for SINOPEC, Petro China, GM, Lenovo, Coco cola,Nestle,etc.
Packing terms:
Shipping:
Payment terms:
Our Services:
1, OEM service is available.
2, Customized sizes and specifications are welcomed.
3, Free rack layout design for your warehouse.
4, We are supplying all the related facilities, as pallets, hand truck,storage cage,etc.
5, Assemble instructions support.
6, At least one year warranty with free exchange if has any quality issues.
For Details Quotation:
Please offer us the following information in details, so we can give you the exact quotation:
1) Size of your warehouse;
2) Full details of size L*D*H;
3) How many bays you want;
4) How many layers you want;
5) Loading capacity of each layers;
6) RAL color you require;
7) Drawing (if available).
Products for warehousing:
Contact details:
Contact person: Sara
Company : Hebei Woke Metal Products Co., Ltd.
Add: North Side of Shidai Road, New Area, Xinhe County, Xingtai, Hebei, China
Tel: 86-311-89920528, 8613303295691
Mob:8615511656450
Fax: 86-311-89920529
Website: www.woke-hercules.com

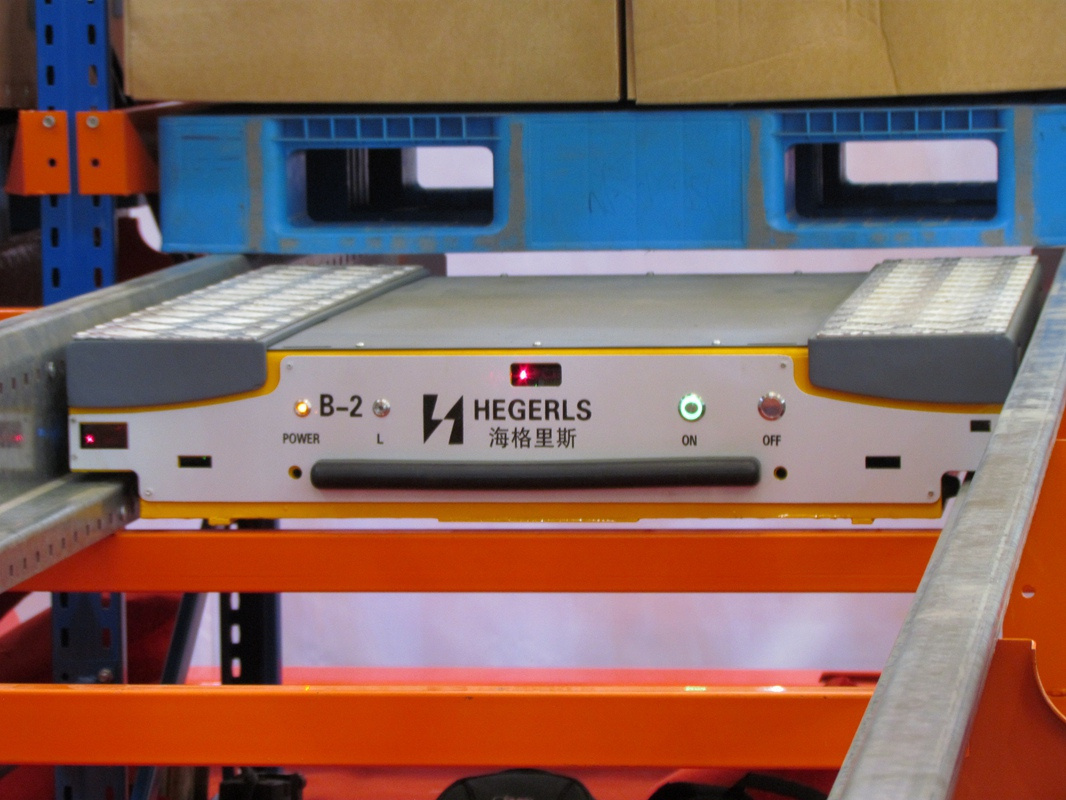

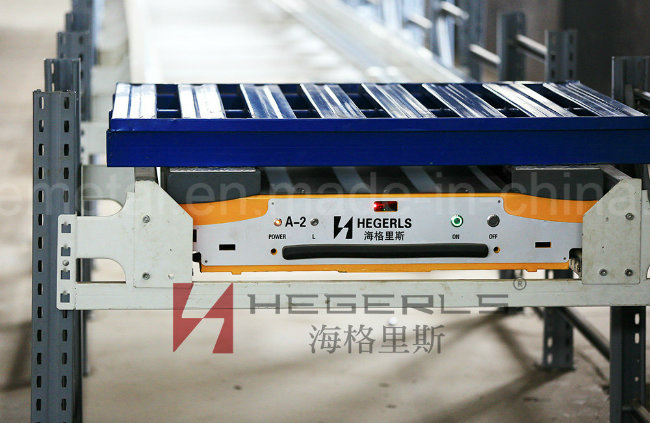

For the shuttle
| Feature | 1.The engine is purchased from Germany, with brand of Lenze. The power is 550v. 2. The battery is Lithum. it could be working for 8 hours one time. 3. All the detectors are with brand of SICK. 4. The quality warranty is 12 months. |
| Pallet shuttle / Raido Guide Vechile | Model | |||||||||
| Item | parameter | RGV-500 | RGV-1000 | RGV-1500 | ||||||
| 1 | Suitable Pallets : | |||||||||
| 1.1 | Standard Pallet: L x W mm | W1200 X D1000mm | ||||||||
| 1.2 | Size Range Available :L x W mm | W1100 ~1250, D800 ~1100mm | ||||||||
| 1.3 | Styles of Pallet Bottom | "" or"" | ||||||||
| 1.4 | Material of Pallet | Wood,Plastics,Steel | ||||||||
| 1.5 | Deflection of Pallet | Max 20mm | ||||||||
| 2 | Total Weight of Loading | Max 500Kg | Max 1000Kg | Max 1500Kg | ||||||
| 3 | Model of Running | In the rails | ||||||||
| 4 | Data of Running: | |||||||||
| 4.1 | no load Running | 1.1m/s | ||||||||
| 4.2 | full load Running | 0.9 m/s | 0.7 m/s | 0.5 m/s | ||||||
| 5 | lift parameter | |||||||||
| 5.1 | Time of Single Lift | 2s | 2.3s | 2.5s | ||||||
| 5.2 | height of Lift | 40mm | ||||||||
| 5.3 | space between pallet and rail | 13mm | ||||||||
| 6 | specification of RSC: | |||||||||
| 6.1 | Outside Dimensions L x W x Hmm | L1100xW977x 198mm | ||||||||
| 6.2 | Weight of RSC | 242Kg | 268Kg | 300Kg | ||||||
| 6.3 | Plate Size of Equipment | L1030xW185xT3.5mm,2Pcs | ||||||||
| 6.4 | Inner Width of Fork | 230mm | ||||||||
| 6.5 | Width of Single Fork | 236mm | ||||||||
| 7 | Driver Motor for movement | Lenze 24V 370W | ||||||||
| 8 | Wheels of Running | φ120mm Vulkollan | ||||||||
| 9 | Driver Motor for Lifting | Lenze 24V 370W | ||||||||
| 10 | Battery Capacity | 24V 60AH | ||||||||
| 11 | Weight of Battery | 20Kg | ||||||||
| 12 | Charge times | 900 | ||||||||
| 13 | Duration of Charging | About 5 hours | ||||||||
| 14 | Method of Remote Control | Radio Frequency 433MHz,3.7V 1500mAh | ||||||||
| 15 | Remote Controller | Hand remote control | ||||||||
| 16 | Mode of Control | manual / Automatic Mode | ||||||||
| 17 | Temperature of Warehouse | -18~40ºC(Normal)/ -30~-18ºC(Cryogenic) | ||||||||
| 18 | Programmable Logic Controller | Siemens PLC | ||||||||
| 19 | Voltage of Controller loop | DC 24V | ||||||||
| 20 | Noise in Running | <70db | ||||||||

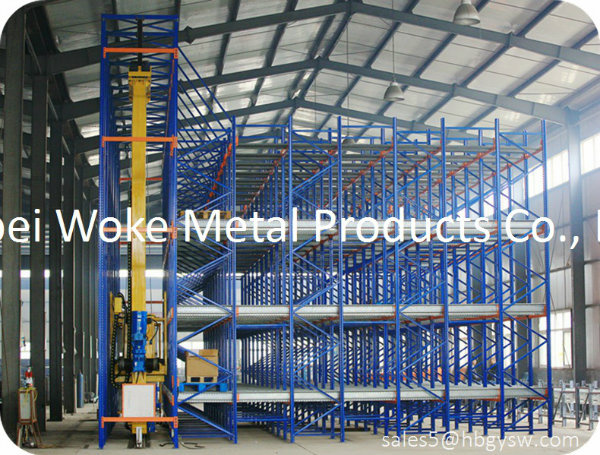

For the racking
| Advantage: | * Shorter unload times for pallets. The Radio Shuttle modules (RSM) retrieve the pallets and bring them to the aisle entrance so the forklift does not have to enter the lane * Great for deep lane storage * Allows the storage of different reference numbers per module and therefore a higher number of stored references * Lower risk of accidents * Reduced reliance on forklifts inside lanes helps prevent rack damage * By adding more RSMs, the flow of incoming and outgoing goods increases * Optimizes space by compacting pallets with different widths inside the channels * Height between levels is minimized * Improve Efficiency: Radio Shuttle brings the pallets to the entrance so the forklift doe not have to enter lanes * Increase Storage: Permits storage of different reference numbers per module * Redcues Accidents * Eliminate Lane Damage: Prevent the risk of rack damage since forklifts are no longer needed ton enter the racking unit. * Maximize Productivity: Simply by adding more carts, the flow of incoming and outgoing goods increases. *Highly Compatible: Optimizes space by compacting pallets with different widths inside the lanes. |
Certification:
| SGS Certification | ISO 9001 |

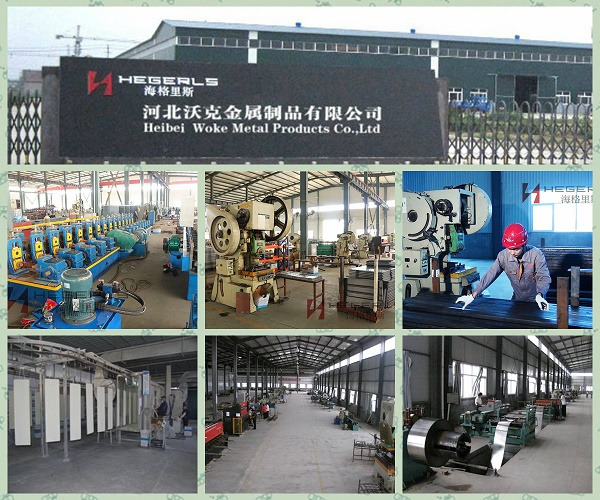

Company information:
We Hebei Woke Metal Products Co., Ltd was founded in 1996, As a large scale metal products processing enterprise, specialized in manufacturing store shelves&racks, and supplying related facilities, within one set of R&D, design, producing, sales and service, our brand, HEGERLS,is known as shelf expert, China Top Brand, receiving National Inspection free Product honorary title.
We have been supplying facilities for SINOPEC, Petro China, GM, Lenovo, Coco cola,Nestle,etc.
Packing terms:
| standard packing: carton, films, |
Shipping:
| full container by 20' fcl or 40'ft or 40' HQ less than container LCL |
Payment terms:
| TT, L/C or negotiated |
Our Services:
1, OEM service is available.
2, Customized sizes and specifications are welcomed.
3, Free rack layout design for your warehouse.
4, We are supplying all the related facilities, as pallets, hand truck,storage cage,etc.
5, Assemble instructions support.
6, At least one year warranty with free exchange if has any quality issues.
For Details Quotation:
Please offer us the following information in details, so we can give you the exact quotation:
1) Size of your warehouse;
2) Full details of size L*D*H;
3) How many bays you want;
4) How many layers you want;
5) Loading capacity of each layers;
6) RAL color you require;
7) Drawing (if available).
Products for warehousing:
| Racking: | Pallet racking Drive in racking Long span racking Radio shuttle racking Crane stacker for racking Cantilever racking Push back racking Gravity racking Electric mobile racking |
| Racking Accessories: | Plastic pallet Steel pallet Hand pallet truck Storage cages |
Contact details:
Contact person: Sara
Company : Hebei Woke Metal Products Co., Ltd.
Add: North Side of Shidai Road, New Area, Xinhe County, Xingtai, Hebei, China
Tel: 86-311-89920528, 8613303295691
Mob:8615511656450
Fax: 86-311-89920529
Website: www.woke-hercules.com
| Prod Model: | HGLS-S01 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loading: | 1.5tons |
| Temperature: | Minus 25 Degree |
| Unloading Speed: | 1.2m/S |
| Loading Speed: | 0.8m/S |
| Lift Time: | 0.8s |
| Material: | Steel |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | for Special Purpose |
| Structure: | Automatic |
| Type: | Automatic |
| Weight: | 1000-1500kgs |
