2016 New Design on Paper Cup Machine
| Price: | US $ 15000-16000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union |
.Advantages
1.Different from other normal paper cup machine, ZBJ-NZZ has special square steel structure (8CM wide stronger steel) and good quality, which are much stable when running.
2. All machine only use shaft and gear system ,but not chain system .
3. Intelligent design, PLC automatic control, full-automatic failure warning, counting, detection, stopping, and etc. (optional) A. the main motor use the best gear reduction unit; B. two times bottom paper feeding; C. operate panel use touch screen controlled.
Introduction of Function and Procedure
1. The bottom paper is sent by stepper motor, which controls the interval of bottom papers about 0.1mm, so that the machine performs more stable and paper-saving. Meanwhile, the machine is equipped with the optical eye which will send the bottom paper only if there is paper cup body, so that it save a lot of raw material.

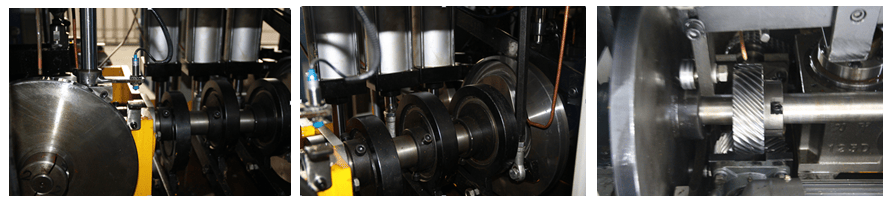

2. The inner structure adopted the vertical axis gear drive system, avoiding chain loosening and malposition problems.
3. Automatic lubrication system, which reduces the friction of machine parts and improves the machine maintenance
4. The machine is equipped with optically controlled non-contact switch(such as on the paper holder, cup body, bottom paper and cup discharging etc, customized if possible), checking and auto alarming, thus, the switch can protect the machine parts from crashing, increases the stability and maintenance of the machine.
5. Paper feeding working station is driven by cams without noise, performing stable and well, which is pioneer technology at home.
6. The machine adopts the gear motor in replacement of the separate reduction box and motor, makes the drive system simpler and more stable.
7. Automatic paper cup collecting in the sixth working position that increases the efficiency.
If you are interested in, please contact me: 86-13587572818
1.Different from other normal paper cup machine, ZBJ-NZZ has special square steel structure (8CM wide stronger steel) and good quality, which are much stable when running.
2. All machine only use shaft and gear system ,but not chain system .
3. Intelligent design, PLC automatic control, full-automatic failure warning, counting, detection, stopping, and etc. (optional) A. the main motor use the best gear reduction unit; B. two times bottom paper feeding; C. operate panel use touch screen controlled.
Introduction of Function and Procedure
1. The bottom paper is sent by stepper motor, which controls the interval of bottom papers about 0.1mm, so that the machine performs more stable and paper-saving. Meanwhile, the machine is equipped with the optical eye which will send the bottom paper only if there is paper cup body, so that it save a lot of raw material.
2. The inner structure adopted the vertical axis gear drive system, avoiding chain loosening and malposition problems.
3. Automatic lubrication system, which reduces the friction of machine parts and improves the machine maintenance
4. The machine is equipped with optically controlled non-contact switch(such as on the paper holder, cup body, bottom paper and cup discharging etc, customized if possible), checking and auto alarming, thus, the switch can protect the machine parts from crashing, increases the stability and maintenance of the machine.
5. Paper feeding working station is driven by cams without noise, performing stable and well, which is pioneer technology at home.
6. The machine adopts the gear motor in replacement of the separate reduction box and motor, makes the drive system simpler and more stable.
7. Automatic paper cup collecting in the sixth working position that increases the efficiency.
If you are interested in, please contact me: 86-13587572818
| Prod Model: | ZBJ-NZZ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Bule and Gray |
| Process: | Paper Machine |
| Usage: | Packing Paper Machine, Household Paper Machine |
| General Power: | 9.5kw |
| Weight: | 2000kgs |
| Size: | 2800*1400*1700mm |
| Voltage Supply: | 220V50Hz/380V50Hz or Customzied |
| Paper Request: | 150-350G/M2 |
| Certification: | SGS |
| Condition: | New |
| Cup Size(',Ounce): | 1.5-12oz |
| Speed: | 60-70PCS/Min |
| Required Paper: | Both Single and Double PE Paper |
Ruian LiFeng Machinery Co., Ltd. Established in 1998, have 16 years Production experience in producing series of automatic machinery Like high speed paper cup machine, soup bowl machine, paper cone machine, double layer coffee cup machine, die punching machine, paper plate machine.
We pursue "quality first, service first ", most of our machines use best International brand SCHNEIDER, OMRON, ROBATECH MITSUBSHI Siemens, Lifeng also provide our staff with regular training to improve their skills, so as to ensure the consistent quality of our machines. All of our products have past CE, SGS, BV and each machine we supply 1 year warranty. We supply free training for customers too.
.
Our high quality and competitive price have made Lifeng machines popular in all Asia, Eastern Europe The Middle East, north Africa, north and south America. With large production capacity, we can deliver products to customers quickly, we also offer OEM service upon request
Sincerely look forward to your presence and cooperation
We pursue "quality first, service first ", most of our machines use best International brand SCHNEIDER, OMRON, ROBATECH MITSUBSHI Siemens, Lifeng also provide our staff with regular training to improve their skills, so as to ensure the consistent quality of our machines. All of our products have past CE, SGS, BV and each machine we supply 1 year warranty. We supply free training for customers too.
.
Our high quality and competitive price have made Lifeng machines popular in all Asia, Eastern Europe The Middle East, north Africa, north and south America. With large production capacity, we can deliver products to customers quickly, we also offer OEM service upon request
Sincerely look forward to your presence and cooperation
